Stainless Steel Single Channel Hall Effect Sensor Thread: 3/8 24 TPI

Motorsport Precision: Stainless Steel Single Channel Hall Effect Sensor

In high-end performance electronics, the sensor’s physical durability is as important as its electrical frequency response. The Stainless Steel Single Channel Hall Effect Sensor with a 3/8-24 TPI thread is a professional-grade timing and speed component engineered for extreme environments. Unlike plastic sensors that can crack or warp under thermal stress, the stainless steel body of this sensor ensures zero thermal expansion, maintaining a consistent air gap to your trigger wheel. This is a foundational component for accurate Ignition Timing in LS-swap, 2JZ, and RB26 builds where a rock-solid timing reference is required for detonation protection.

Engineering Principles: Digital Square Wave Accuracy

This sensor generates a high-fidelity digital square wave signal, which is the preferred input for all modern standalone ECU integrations. As a Hall-effect device, it utilizes an internal magnet to detect ferrous teeth (such as a 36-1 or 60-2 trigger wheel). This Analogue-to-Digital interface happens internally, providing a clean signal from 0 RPM through to 15,000+ RPM. The stainless steel 3/8-24 threaded body allows for ultra-fine adjustment of the air gap, which is critical for high-frequency signal integrity. This reliability ensures that your fuel map calibration and sequential ignition events are executed with microsecond accuracy, preventing the “spark fade” often associated with weak inductive signals.

Operational Benefits for Speed and Engine Management

The GT101-style sensing logic makes this sensor incredibly versatile. It suits wheel speed, crank, and cam position applications equally well. In Traction Control scenarios, the digital signal can be wired directly to the ECU’s SPI (Standard Pulse Input) channels. For builders of K-swap turbo cars or custom drift chassis, the 3/8-24 TPI thread allows the sensor to be securely locked into a custom bracket using a jam nut, preventing any vibration-induced movement. By providing a jitter-free RPM reference, the ECU can maintain a perfectly stable Air-Fuel Ratio (AFR) and boost curve, even under the most violent track conditions.

Installation and Harness Integration

This kit is designed for a professional, competition-grade finish and includes a matching set of Deutsch DTM 3 connectors (HT-031014). For a reliable harness integration, the sensor requires a 3-wire connection: 12V Switched Power, Signal, and a clean Signal Ground. The stainless steel body acts as a shield against EMI (Electromagnetic Interference), further protecting the logic-level signal. During installation, the air gap should typically be set to 1.0mm – 1.5mm. Its robust construction makes it ideal for mounting near the crankshaft damper or differential where it is exposed to road debris and high heat.

Technical Specifications

Summary & Includes

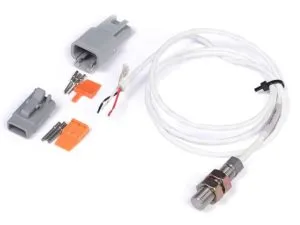

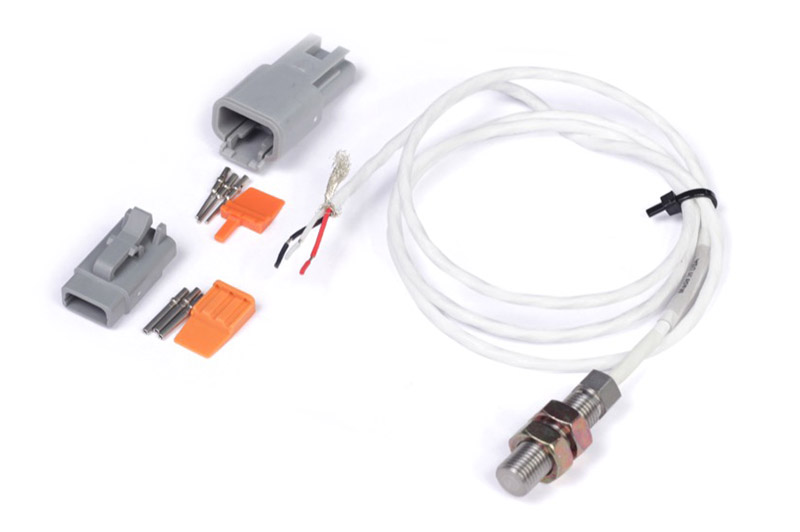

The Stainless Steel 3/8-24 Hall Sensor is the ultimate high-durability timing component. Includes: 1 x Stainless Hall Effect Sensor and a Matching set of Deutsch DTM 3 connectors. Note: The definitive choice for crankshaft and driveshaft sensing in harsh racing environments.
