Triple Channel OEM Igniter (DUMB)

Precision Multi-Cylinder Control: Triple Channel OEM Igniter (DUMB)

The Triple Channel OEM Igniter (DUMB) is a critical power-switching module engineered for 3-cylinder and 6-cylinder engines. In high-performance RB26DETT or 2JZ-GTE builds utilizing “Dumb” inductive coils, this igniter acts as the essential intermediary, taking the low-current trigger signals from your standalone ECU integration and providing the high-current path for the ignition coils. By offloading the thermal stress of high-voltage switching to this dedicated heatsink-mounted unit, you ensure that your ignition timing remains stable, providing the detonation protection necessary for high-boost fuel map calibrations.

Engineering Principles: Sequential 6-Cylinder Firing

In a 6-cylinder configuration, two Triple Channel Igniters are used to achieve full sequential ignition. This allows the ECU to precisely control the dwell and timing for each individual cylinder, a feature that is foundational for standalone ECU integration. This “Dumb” igniter does not have internal processing; instead, it provides a high-speed MOSFET switching path that follows the ECU’s 0-5V logic pulses with microsecond accuracy. This Analogue-to-Digital interface ensures that the ignition spark is consistent and deterministic, which is vital for finding the Maximum Brake Torque (MBT) timing timing. The aluminum base and thermal paste interface are critical for wicking away the heat generated during these rapid switching events, preventing timing jitter.

Operational Benefits for Custom Engine Swaps

For the builder performing an RB-swap or JZ-swap, the Triple Channel Igniter provides a clean, professional solution for ignition management. It allows for the relocation of the igniter modules to the firewall or cabin, protecting them from the extreme radiant heat of the turbocharger. This is a key advantage for harness integration, as it keeps high-current noise (EMI) away from sensitive crank and cam sensors. In a fuel map calibration scenario, the consistency of this igniter ensures that every spark kernel is identical in energy, leading to a smoother idle and more predictable power delivery under high boost. It is a mandatory upgrade for those moving away from restrictive factory distributed ignition systems.

Installation and System Requirements

This Triple Channel kit is a comprehensive package designed for a professional-grade finish. It includes a robust mounting bracket, thermal paste, and matching plugs and pins. The electrical interface utilizes a Bosch-style 7-pin Junior Timer connector, which is the industry standard for high-vibration engine bay applications. Installation requires mounting the unit to a flat, conductive surface and wiring each of the three channels to a corresponding ignition coil negative. It is fully compatible with Haltech Elite and Nexus ECUs, as well as any standalone engine management system featuring logic-level ignition outputs. Using two modules allows for full 6-cylinder sequential control.

Technical Specs Table

Summary & Includes

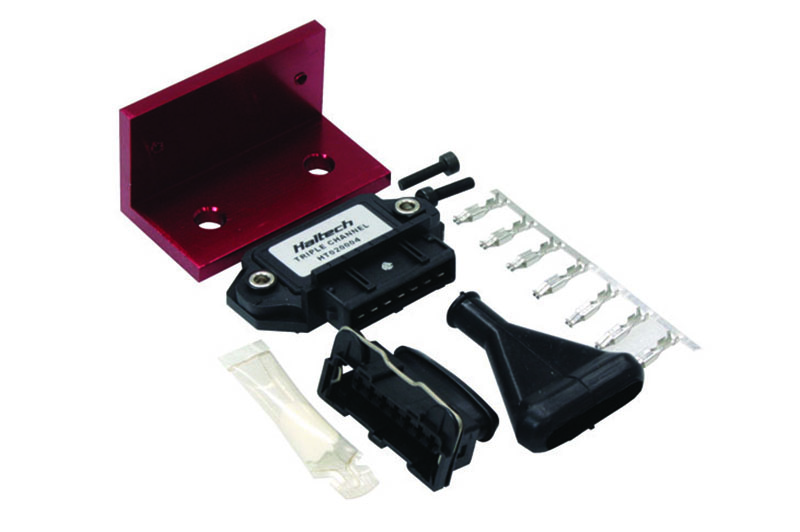

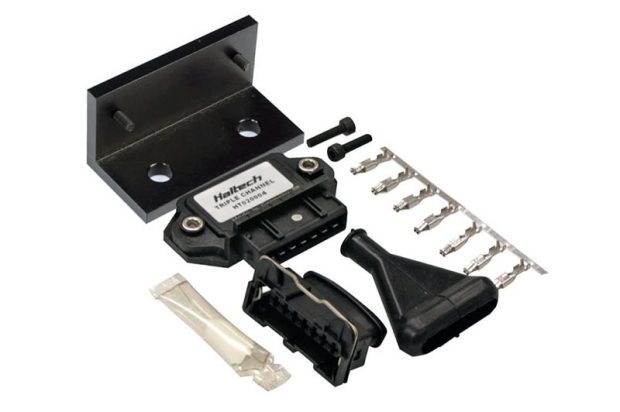

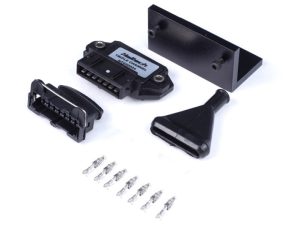

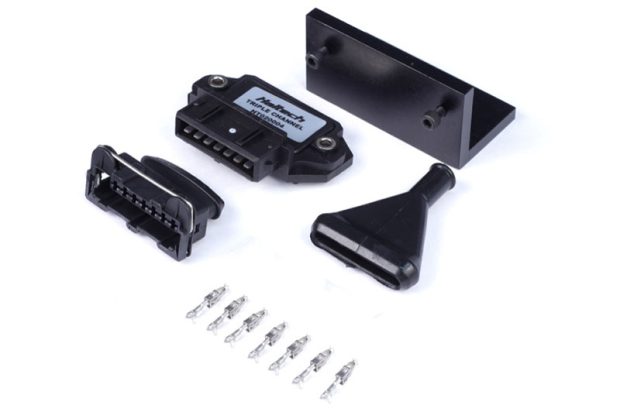

The Triple Channel OEM Igniter is the professional’s choice for 3-channel and 6-channel ignition. Includes: 1 x Triple-Channel Module, Mounting Bracket, Thermal Paste, and full Plug/Pin Set. Note: Two modules are required for 6-cylinder sequential ignition setups.
