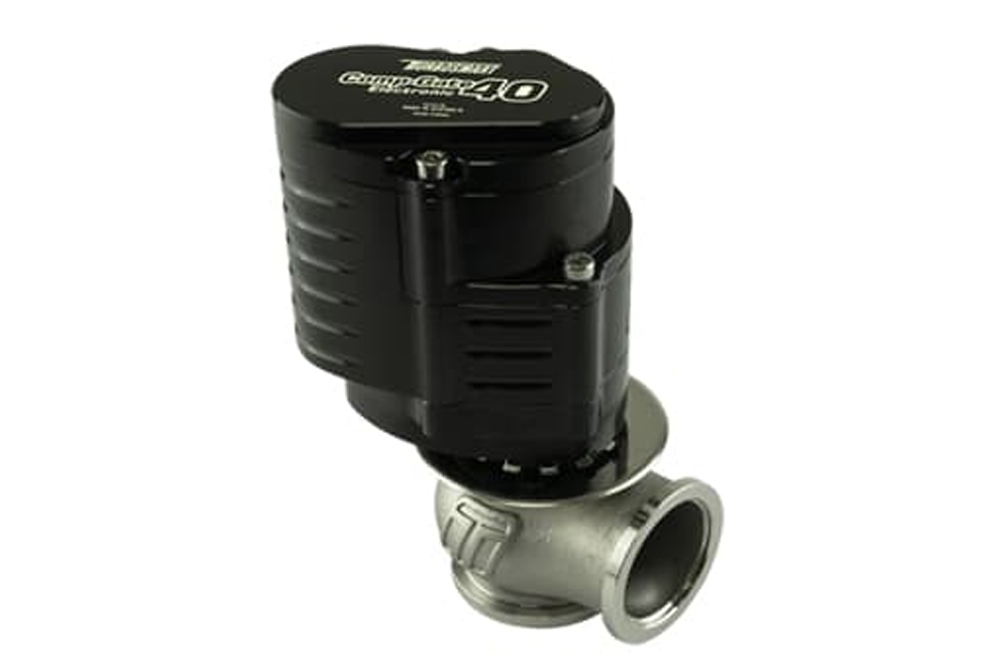

Turbosmart GenV eWG40 Comp Gate 40 Diameter: 40mm

Compact Precision Boost Control: Turbosmart GenV eWG40 Comp Gate

The Turbosmart GenV eWG40 Comp Gate is a masterclass in compact, high-performance boost management. With a 40mm valve diameter, it is perfectly sized for twin-turbo V8s or smaller displacement high-boost 4-cylinder engines. The transition to the eWG platform removes the traditional limitations of pneumatic gates—namely, the instability caused by exhaust pressure acting on a spring-loaded diaphragm. By utilizing a high-torque electronic actuator, the eWG40 provides the tuner with the ability to maintain closed-loop boost control regardless of manifold conditions. For the builder working with tight engine bays, such as an RB26 in an S-chassis or a K-swap, the eWG40 provides world-class performance in a space-efficient package.

Engineering and Material Science

Despite its smaller size, the eWG40 shares the same robust construction as its larger siblings. The body is investment cast from High Temp 347 Stainless Steel, and the valve guide is Nitronic 40, ensuring that the valve won’t bind or seize even under extreme thermal loads. The electronic motor replaces the spring and diaphragm entirely, meaning there are no hoses to crack or melt. The unit features an Onboard Analogue 0-5V Wastegate Position Sensor, which allows the ECU to monitor the valve’s state via an Analogue-to-Digital interface. This feedback is the backbone of modern boost-by-gear and traction control strategies, where the ECU must know the exact position of the gate to maintain the fuel map calibration targets.

Operational Benefits: Precision and Stability

The eWG40 offers a level of stability that pneumatic gates cannot match. In a traditional setup, “boost creep” occurs when the gate is forced open by backpressure. The eWG40 uses motor torque to actively fight backpressure, keeping the valve shut until the ECU commands otherwise. Conversely, it can be opened fully to drop boost to zero, providing a massive safety margin for engine protection. This zero-to-all boost range is controlled via the laptop, making it the most user-friendly gate on the market. Additionally, the Onboard 0-5V Actuator Temperature Sensor allows the ECU to trigger safety maps if the actuator gets too hot, protecting your standalone ECU integration from hardware failure.

Fitment and Technical Integration

The eWG40 fits all standard GenV CompGate40 V-band flanges, making it a plug-and-play mechanical swap for most users. However, the electrical and thermal requirements are different. The actuator must be Liquid Cooled to ensure the motor survives in proximity to the exhaust. Electrically, the eWG40 requires a DC Motor Driver (DCMD), which translates the ECU’s Digital Pulse Outputs (DPO) into the high-current bidirectional power the motor needs. This setup is fully supported by Haltech Nexus and Elite series ECUs. The actuator position is user-adjustable, allowing for the motor to be rotated to avoid obstructions in the engine bay.

Technical Specifications

Summary & Includes

The Turbosmart GenV eWG40 Comp Gate is the new standard for compact electronic boost control. Includes: 40mm eWG Unit, Strap Type V-band Clamps, and integrated sensors. Note: Not compatible with hoses; requires electrical control via a DCMD and standalone ECU.
