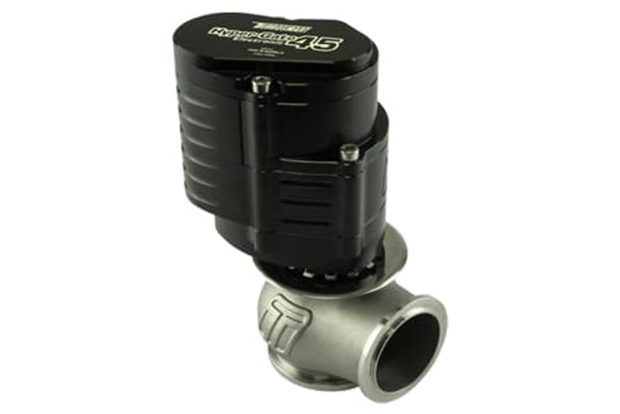

Turbosmart GenV eWG45 Hypergate 45 Diameter: 45mm

High-Precision Boost Regulation: Turbosmart GenV eWG45 Hypergate

The Turbosmart GenV eWG45 Hypergate is the ultimate mid-sized electronic wastegate, bridging the gap between street performance and professional motorsport. Featuring a 45mm valve diameter, this unit is engineered for engines that require precise boost regulation without the flow limitations of a smaller gate. The move to an electronic actuator represents a paradigm shift in closed-loop boost control. By eliminating the reliance on pneumatic hoses and diaphragm springs, the eWG45 provides the tuner with absolute authority over manifold pressure. Whether you are tuning a K-swap turbo, an EJ25, or a single-turbo LS-swap, the eWG45 ensures that your boost curve is defined by your software, not the laws of physics acting on a rubber diaphragm.

The Technology of Electronic Actuation

Traditional wastegates suffer from “boost taper” and “creep” because exhaust backpressure eventually forced the valve open against the spring. The GenV eWG45 solves this by using a high-torque internal motor that can actively hold the valve shut even under extreme exhaust pressures. For precise feedback, the unit includes an Onboard Analogue 0-5V Wastegate Position Sensor. This sensor provides the ECU with a 1:1 map of the valve’s physical location, enabling a level of standalone ECU integration previously only seen in factory OEM high-end supercars. Additionally, the Onboard 0-5V Actuator Temperature Sensor monitors the health of the internal electronics, providing critical data for detonation protection and system safety strategies.

Operational Benefits: Total Boost Authority

With the eWG45, the term “base spring pressure” becomes obsolete. You can command the wastegate to stay wide open to keep the car in a low-power “valet” mode, or lock it shut for the fastest possible turbo spool. This zero-to-all boost capability is essential for traction management. In a fuel map calibration session, the tuner can program boost targets for every RPM and gear with surgical precision. Because there is no diaphragm, there is no risk of failure due to heat or fatigue. The valve guide is made from Nitronic 60 and the body is High Temp 347 Stainless Steel, ensuring that the Hypergate remains functional even when the exhaust manifold is glowing red.

Fitment and System Requirements

The eWG45 uses the standard GenV Hypergate45 V-band footprint, allowing for easy integration into existing manifolds. To protect the high-precision motor from the intense radiant heat of the turbocharger, the actuator housing is Liquid Cooled. This is mandatory for any car seeing track use or extended pulls. For operation, the eWG45 requires a DC Motor Driver (DCMD) to handle the current needs of the motor and a standalone ECU (Nexus or Elite) to provide the control logic. The user can adjust the actuator position during installation to ensure clearance around other engine bay components like steering racks or strut towers.

Technical Specifications

Summary & Includes

The Turbosmart GenV eWG45 Hypergate is the professional’s choice for modern boost management. Includes: 45mm eWG Unit, V-Band Clamps, and integrated sensors. Note: This unit requires 2 x DPO outputs from the ECU and a DCMD driver for full bidirectional control.
