WB2 Bosch – Dual Channel CAN O2 Wideband Controller Kit Length: 1.2M (4ft)

WB2 Bosch Dual Channel CAN Wideband Controller: The Ultimate Tuning Tool

For high-performance engines with dual exhaust banks—such as V6, V8, V10, or V12 configurations—monitoring a single Lambda value is insufficient. Bank-to-bank imbalances caused by intake manifold geometry, injector variance, or exhaust design can lead to one bank running dangerously lean while the other is rich. The WB2 Bosch Dual Channel CAN Wideband Controller Kit is the definitive solution for total engine oversight. This system integrates two laboratory-grade Bosch LSU 4.9 sensors into a single, compact controller that broadcasts precise Air-Fuel Ratio (AFR) data directly to your Haltech ECU via the high-speed CAN bus. By digitizing the signal at the source, the WB2 eliminates the voltage offsets and signal degradation inherent in analog wiring, delivering the pristine data required for individual cylinder bank trimming and advanced engine protection strategies.

Engineering Deep-Dive: CAN Bus Precision and LSU 4.9 Integration

The WB2 utilizes the Controller Area Network (CAN) protocol to transmit data. In traditional analog setups, a 0-5V signal is sent to the ECU. Ground offsets in the vehicle’s chassis can skew this voltage, causing the ECU to see an AFR of 12.0:1 when the sensor is actually reading 12.5:1. The WB2 reads the sensor current locally, processes the Nernst cell data digitally, and transmits a data packet to the ECU. This method is immune to electrical noise and ground loops.

The controller is specifically calibrated for the Bosch LSU 4.9 sensor, managing the heater circuit with Pulse Width Modulation (PWM) to maintain the ceramic element at the optimal 780°C operating temperature. This precise thermal management ensures accurate readings even under varying exhaust gas temperatures, from idle to full-load pulls. The dual-channel architecture allows the tuner to implement "Per-Bank" closed-loop O2 control, ensuring that both sides of the engine are perfectly balanced, maximizing power and efficiency while protecting against detonation.

Operational Benefits

• Total Engine Visibility: Monitor both banks of a V-engine simultaneously to detect injector faults, misfires, or airflow imbalances.
• Plug and Play Integration: Connects directly to the Haltech CAN network. Recognized instantly by NSP and ESP software.
• Accurate Auto-Tuning: Provides the high-fidelity feedback loop required for Haltech’s long-term fuel trim learning to build perfect fuel maps.
• System Redundancy: In the event of a single sensor failure, the second channel continues to provide data, allowing for limp-mode strategies.

Fitment and Compatibility

This kit is designed for Haltech Elite and Nexus Series ECUs. It serves as the ideal expansion module for ECUs that do not have built-in wideband hardware or for users requiring additional channels.

• Vehicles: V6, V8, V10, V12 applications, or twin-turbo setups with independent exhaust streams.
• ECU Compatibility: Elite 550, 750, 1000, 1500, 2000, 2500, Nexus R3, R5.
• Software: Easily programmed via ECU Manager (ESP) or Nexus Software Programmer (NSP).

Technical Specifications

Summary & What’s Included

The HT-159986 WB2 Kit is the standard for professional V-engine calibration. It provides the hardware confidence needed to push high-horsepower builds to the limit.

Includes:

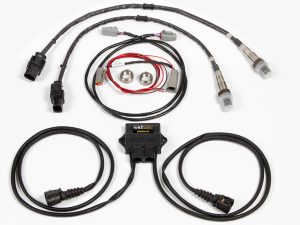

• 1 x WB2 Dual Channel CAN Wideband Controller

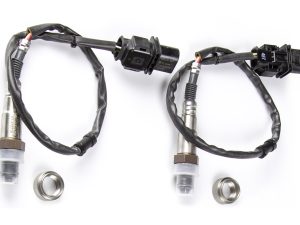

• 2 x Bosch LSU 4.9 Sensors
• 1 x CAN Cable (4ft / 1200mm)
• 1 x Power Supply Cable
• 2 x Weld-on Bungs
• Quick Start Guide

Note: This controller is specific to Bosch LSU 4.9 sensors and is not compatible with NTK sensors.
