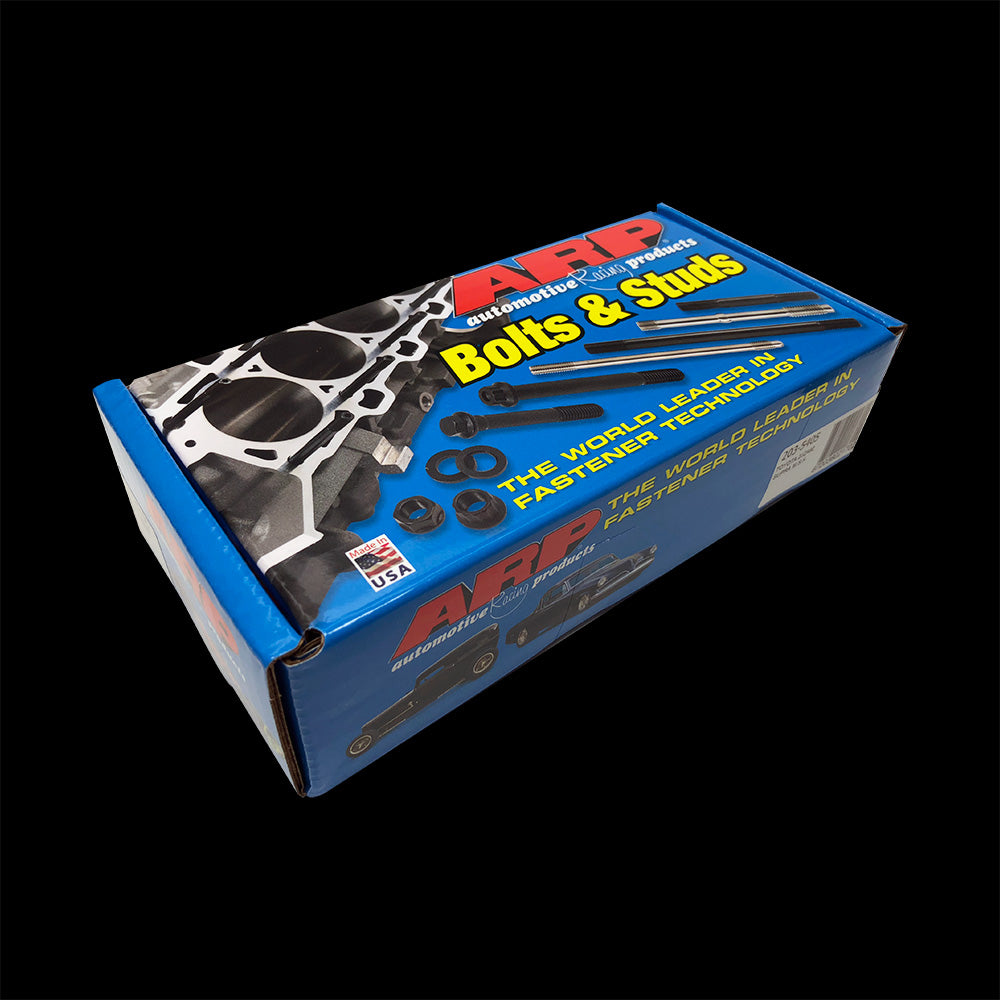

AR8738 – Toyota B58B30 ARP2000 Main Studs

Introduction: The Foundational Upgrade for the B58 Powerplant

In the realm of forced-induction performance, the Toyota (and BMW) B58B30 engine has established itself as a modern masterpiece, a turbocharged inline-six with a formidable reputation for strength and tunability. However, as enthusiasts and builders push beyond factory limitations—increasing boost, optimizing tunes, and demanding relentless reliability—the factory main bearing cap fasteners become a critical point of potential failure. The AR8738 ARP2000 Main Stud Kit from ARP is not merely an upgrade; it is a fundamental re-engineering of the engine’s bedrock. This kit replaces the stock torque-to-yield bolts with precision-machined, heat-treated 8740 chromium-molybdenum alloy steel studs, engineered to provide absolute clamp load consistency and eliminate cap walk under extreme cylinder pressures. For any serious build targeting elevated horsepower levels or dedicated track use, installing the AR8738 is a non-negotiable step in fortifying the B58’s bottom-end integrity.

Engineering Excellence: The ARP2000 Advantage

The designation “ARP2000” refers to ARP’s proprietary material and process, a significant step above standard 8740 chromoly. Each stud in the AR8738 kit undergoes a unique thermal cycling treatment that raises the material’s tensile strength to an exceptional 200,000 psi, while maintaining superior ductility and fatigue resistance. This process refines the grain structure of the alloy, allowing the fastener to handle immense cyclical loads without succumbing to stress fractures or elongation.

Precision is paramount. Every stud is centerless-ground after heat treatment to achieve a consistent diameter and flawless surface finish. This ensures perfect thread engagement and uniform load distribution across the main bearing caps and the engine block. The kit utilizes a stud-and-nut system, which offers a critical advantage over bolts: it virtually eliminates the torsional stress and thread galling that can occur when torquing a bolt directly into the aluminum block. The stud remains stationary during final assembly, allowing the high-quality, hex-profile nut to be torqued to ARP’s specified value with a consistent and repeatable preload. This method guarantees that the clamping force holding the main bearing caps is maximized and uniform, directly contributing to stabilized crankshaft alignment and reduced bearing wear.

Technical Breakdown of the Clamping System

The factory main bolts are designed for cost-effective mass production and a specific service life. They are torque-to-yield (TTY), meaning they are intentionally stretched past their elastic limit during installation to achieve clamp load. This is a one-time-use procedure that cannot guarantee consistent load after disassembly and reassembly. The ARP2000 studs, in contrast, operate within their elastic range. When torqued to ARP’s specified value (provided with the kit and requiring ARP Ultra-Torque fastener lubricant for accuracy), they apply a precise, massive clamping force that remains constant through thermal cycles and dynamic engine loads. This prevents main bearing cap “fretting” or micro-movement, a primary cause of bearing failure and oil pressure loss in high-output engines. For a deeper dive into fastener metallurgy and clamping force dynamics, consider this resource on understanding fastener strength and torque from industry experts.

Comprehensive Benefits: Beyond Basic Strength

• Uncompromised Crankshaft Alignment: Eliminates main cap deflection and walk, ensuring perfect crankshaft centerline stability for optimal bearing clearance and oil film retention.
• Fatigue Resistance for Longevity: The ARP2000 alloy’s superior fatigue life withstands the constant high-RPM, high-boost stress cycles of track and performance use, where factory bolts may relax over time.
• Precision for Power: A stable bottom end is essential for maintaining consistent piston ring seal and cylinder wall contact, directly translating to reliable power delivery and reduced blow-by.
• Reusability and Serviceability: Unlike TTY bolts, ARP studs can be installed, removed, and retorqued multiple times without any loss of integrity, making engine servicing and future builds more practical and cost-effective.
• Insurance for Forced Induction: Acts as foundational insurance for big turbo upgrades, aggressive ethanol tuning, and nitrous applications, containing the dramatically increased cylinder pressures these modifications create.

Vehicle Fitment: Precision Application

The AR8738 kit is engineered specifically for the Toyota-branded B58B30 engine. This ensures perfect thread pitch, length, and shoulder dimensions for a direct, no-modification installation. Correct application is critical for performance and safety.

Primary Application:

• 2020+ Toyota GR Supra (with B58B30 engine)

Also Fits BMW Applications utilizing the identical B58B30 engine block:

• 2017+ BMW 340i / 440i (G20, G22 chassis)
• 2019+ BMW X3 M40i, X4 M40i (G01, G02 chassis)
• 2019+ BMW Z4 M40i (G29 chassis)
• 2019+ Toyota GR Supra (A90/A91)
• And other B58B30-powered BMW models (Always verify engine code)

Important Note: This kit is designed for the B58B30. Always confirm your engine variant (e.g., B58B30O1, B58B30M0). It is not compatible with the earlier N54/N55 or other engine families.

Technical Specifications & Installation Notes

Professional Installation Guidelines

Installation of main studs requires the complete disassembly of the engine’s bottom end, including oil pan, windage tray, and main bearing cap removal. The block’s main bearing bores should be measured for alignment before and after stud installation, as the increased clamp load can slightly distort the bore (often improving alignment). A line hone may be recommended for ultimate precision in all-out competition engines. Use only the lubricant supplied or specified by ARP; using engine oil or other lubricants will result in incorrect preload and potential failure. This is a component for experienced engine builders or professional machine shops. The investment in the AR8738 kit is safeguarded only by correct, meticulous installation procedures.
