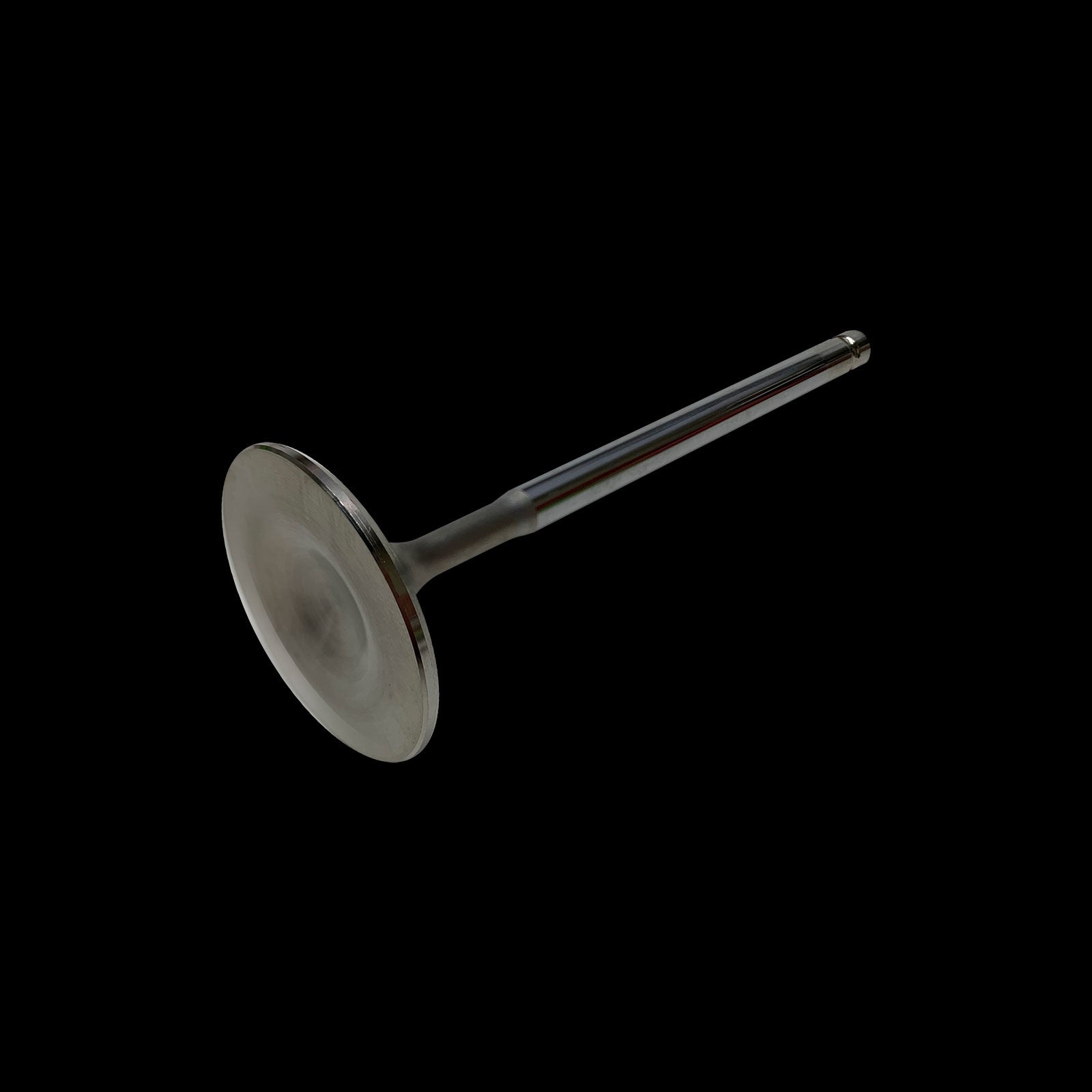

In the relentless pursuit of engine efficiency and power, the valve train represents a critical frontier. For Honda B-series engines, revered for their high-revving, naturally aspirated character, the intake valve is the gatekeeper to volumetric efficiency. The Brian Crower BC3010-1 Individual Intake Valve is not a replacement part; it is a strategic upgrade engineered for those who understand that genuine performance is built from the bottom up, component by component. This 33mm Standard (+0.00mm) stainless steel valve is the definitive choice for rebuilding, blueprinting, or upgrading B16A and B18C engines where precision, durability, and flow characteristics are non-negotiable. It embodies a commitment to metallurgical science and aerodynamic design, offering a direct path to increased engine reliability at elevated RPM and improved power output across the entire curve. For the builder who measures success in thousandths of an inch and sustained redline performance, this is the fundamental component.
Material Science and Design: The Foundation of High-RPM Integrity
Standard OEM valves, while adequate for stock applications, operate at the margins of their capability in a performance environment. The BC3010-1 is manufactured from a proprietary, high-tensile stainless steel alloy. This material is selected specifically for its exceptional resistance to heat fatigue, creep, and elongation under the extreme thermal and mechanical stresses encountered in a high-compression, high-RPM four-stroke cycle. The valve’s one-piece construction ensures uniform grain structure and density, eliminating potential failure points found in two-piece or friction-welded designs. The stem is precision-ground to exacting tolerances, ensuring perfect alignment and minimal friction within the guide, which is critical for valvetrain stability and longevity. The head profile is not merely a copy of the OE part; it is subtly refined to promote smoother airflow transition from the port into the combustion chamber, reducing turbulence and improving mixture velocity.
Key Performance Benefits and Engineering Advantages
- Superior Heat and Fatigue Resistance: The advanced stainless alloy maintains tensile strength and resists deformation at sustained high temperatures, preventing valve tuliping or necking common in stressed engines.
- Optimized Weight-to-Strength Ratio: Despite its robust construction, the valve is designed with weight savings in mind, reducing valvetrain mass to mitigate inertia, lower the risk of valve float, and allow for more aggressive cam profiles without compromising stability.
- Precision Ground Stem: Ensures consistent oil film retention, reduces guide wear, and provides ideal sealing characteristics for the valve stem seal, combating oil consumption.
- Aerodynamic Head Profile: The contour of the valve head is designed to work in concert with performance porting, improving flow coefficients (both lift and low-lift) for gains in volumetric efficiency.
- Direct OEM Replacement Dimension: As a Standard 33mm size, it installs directly into OEM or aftermarket seats without requiring cylinder head machining, making it perfect for precision rebuilds or selective valvetrain upgrades.
Exact Vehicle and Engine Fitment
The BC3010-1 is engineered for a specific lineage of performance engines. It is a direct-fit component for the following applications. Correct fitment is paramount for valvetrain geometry and performance; always verify engine code and specifications prior to installation.
- Honda Civic Si / VTi (EG/EK): B16A2, B16A3 (1999-2000)
- Honda Civic Type R (EK9): B16B
- Honda Integra SiR / Type R (DC2): B18C, B18C5 (USDM), B18C-R (JDM)
- Acura Integra GS-R (DC2): B18C1 (1994-2001)
- Note: This valve is for the intake side only. Always replace valves in matched sets per cylinder and ensure proper inspection and machining of the valve seats for optimal sealing. For more in-depth technical analysis on valvetrain dynamics and material selection for Honda B-series engines, refer to this authoritative resource on high-performance valvetrain materials.
Technical Specifications: The Blueprint Details
| Specification | Detail |
|---|---|
| Part Number | BC3010-1 |
| Valve Type | Intake |
| Head Diameter | 33.00mm (Standard / +0.00mm Oversize) |
| Stem Diameter | 5.48mm (Precision Ground) |
| Overall Length | Approx. 98.5mm (Confirm against OEM spec for your specific model year) |
| Lock Groove | Single (OEM Style) |
| Face Angle | 45° |
| Material | High-Tensile Stainless Steel Alloy |
| Primary Fitment | Honda B16A, B16B, B18C (All variants – see fitment list) |
Installation Protocol and Final Builder Notes
Installing the BC3010-1 valve is a procedure that demands methodological precision. Every valve must be paired with a freshly cut or inspected valve seat to ensure a perfect gas-tight seal; simply dropping in new valves on worn seats is a guarantee of failure. Use a quality valve spring compressor and always install new valve stem seals. Critical post-installation steps include checking and setting valve stem installed height with the appropriate springs and retainers, as this directly affects spring pressure and camshaft base circle clearance. Finally, a thorough leak-down test is the only authoritative verification of proper seating before the cylinder head is installed on the block. This valve is the cornerstone of a reliable, high-output valvetrain. When paired with matching Brian Crower springs, retainers, and camshafts, it forms a harmonized system engineered to deliver and sustain the legendary high-RPM performance for which the Honda B-series is renowned. This is not just a part; it’s an investment in engineered durability.
