In the high-stakes realm of forced induction and elevated RPM limits, the valve train is the final frontier of engine durability and power. The Brian Crower BC0159 Spring and Titanium Retainer Kit for the Dodge SRT-4 and PT Cruiser (2.4L Turbo) represents a master-engineered solution for enthusiasts and builders pushing beyond the constraints of the factory valvetrain. This isn’t merely an upgrade; it’s a fundamental re-engineering of the combustion chamber’s sealing mechanism, designed to combat valve float, ensure precise valve events at extreme RPM, and provide the mechanical foundation for significant horsepower gains. Engineered for direct application to the stock and modified 2.4L DOHC engine, the BC0159 kit provides a complete, drop-in package of premium materials and calculated spring pressures, transforming a potential weak link into a bastion of reliability.
Engineering the Ultimate Valvetrain Defense: Kit Overview

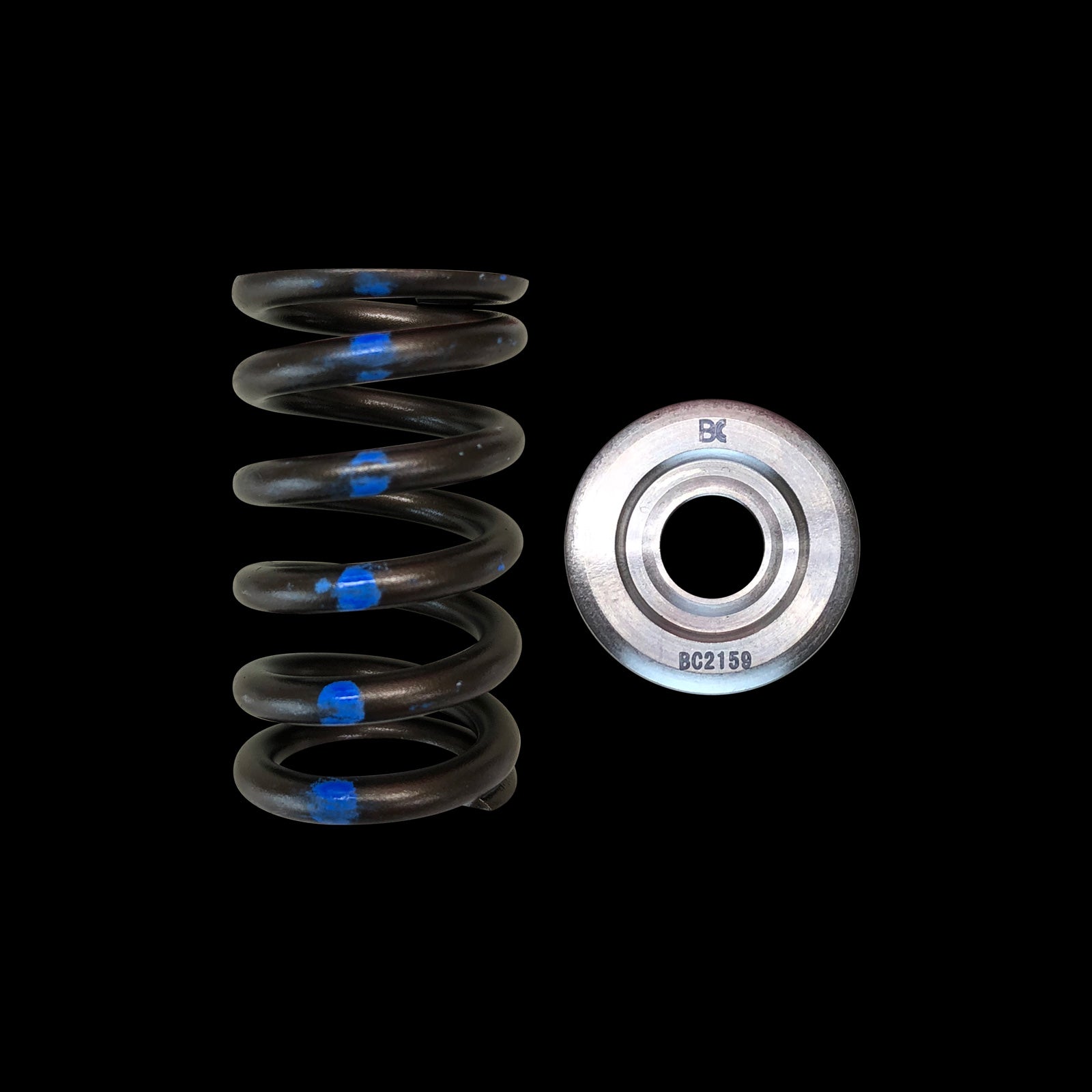

The BC0159 kit is a comprehensive system engineered to replace the entire spring, retainer, and keeper assembly on the 2.4L Turbo engine. At its core are Brian Crower’s proprietary dual valve springs, meticulously calibrated to provide increased seat and open pressure without introducing excessive camshaft lobe wear. These are paired with precision-machined titanium retainers, which offer a drastic reduction in reciprocating mass compared to the stock steel units. The critical interface—the lock or keeper—utilizes a triple-groove design for superior valve stem grip and alignment. This synergistic combination directly addresses the primary failures in high-output turbo applications: valve float caused by insufficient spring pressure and retainer failure from fatigue and heat. By installing this kit, you are not just adding parts; you are installing a physics-based solution for controlled valve actuation under boost and RPM stress.
Performance Benefits and Direct Advantages
- Eliminate Valve Float: Increased spring pressures maintain positive control of the valve, preventing “float” and the catastrophic piston-to-valve contact that can follow at high RPM, especially under boost.
- Reduce Reciprocating Mass: Titanium retainers are approximately 40-50% lighter than stock steel retainers. This reduces inertial stress on the valve stem, camshaft lobes, and lifters, allowing for higher safe RPM and improved valve response.
- Support Aggressive Camshaft Profiles: Provides the necessary spring pressure and clearance for aftermarket performance camshafts with higher lift and more radical ramp rates, ensuring the valve follows the cam lobe exactly as designed.
- Enhance Boost and Power Potential: A stable valvetrain is essential for maintaining cylinder sealing under high boost pressure. This kit ensures the valve seals reliably against the seat, preventing power loss and protecting the engine during high-load scenarios.
- Increased Durability and Safety Margin: The use of high-grade chrome silicon spring wire (SAE 9254) and CNC-machined 6AL-4V titanium offers superior fatigue resistance and heat tolerance compared to OEM components, creating a robust safety margin for modified engines.
Technical Specifications and Design Details
Understanding the precise metrics of this kit is crucial for proper application and integration with your engine build. Below are the definitive technical specifications that define the BC0159’s performance envelope.
| Component | Specification | Detail / Benefit |
|---|---|---|
| Spring Type | Dual Valve Spring | Inner damper spring controls harmonic resonance at high RPM. |
| Spring Wire | SAE 9254 Chrome Silicon | Premium material for exceptional heat resistance and fatigue life. |
| Seat Pressure | Approx. 80 lbs @ 1.550″ | Significant increase over stock, ensures valve closure at low RPM and idle stability. |
| Open Pressure | Approx. 200 lbs @ 1.050″ | High force to control valve acceleration with aggressive cam profiles and high lift. |
| Retainer Material | CNC-Machined 6AL-4V Titanium | Aerospace-grade alloy offering the ideal strength-to-weight ratio. |
| Keeper Design | Triple Groove (3-Groove) | Provides greater surface area contact on the valve stem for secure locking and improved valve guide alignment. |
| Coil Bind Clearance | > 0.060″ (with typical installed height) | Adequate safety margin to prevent springs from becoming solid, which would cause immediate failure. |
Vehicle Fitment and Application Notes
Primary Fitment: This BC0159 kit is engineered specifically for the turbocharged 2.4L DOHC (EDZ) engine. Its most notable applications are in performance vehicles where the valvetrain is a known limitation under increased power.
Direct Applications Include:
- 2003-2005 Dodge Neon SRT-4
- 2003-2007 Chrysler PT Cruiser GT Turbo
- 2004-2006 Chrysler PT Cruiser Limited Turbo
- Other applications using the turbo 2.4L DOHC engine platform (verify head casting and valve stem diameter).
Critical Installation Consideration: This kit is designed for use with the stock diameter valve stems. Always verify installed height and coil bind clearance when using aftermarket camshafts or valves. Proper installation requires the use of a valve spring compressor, micrometer, and knowledge of setting correct installed height, often achieved with machined spring seats or shims. For a deeper technical understanding of valvetrain dynamics and spring selection, refer to this authoritative resource on valvetrain geometry and harmonics.
Installation Protocol and Final Recommendations
Installing the BC0159 kit is a precision task that demands a clean environment and methodical approach. The cylinder head should be off the engine, allowing for thorough cleaning of the valve guides and spring seats. Each valve should be inspected for straightness and stem wear. The triple-groove keepers require a specific technique for installation; using a small amount of assembly lube on the keeper grooves can help them seat into the retainer during compression. The single most critical measurement is installed height. This distance from the spring seat to the bottom of the retainer must be consistent and within specification to achieve the published spring pressures. Deviations require correction with calibrated shims. Once assembled, a final check for coil bind throughout the full travel of the valve (max lift + some margin) is non-negotiable. This kit is the definitive upgrade for SRT-4 and PT Cruiser Turbo builds targeting reliable power beyond 400+ horsepower, supporting aggressive turbo setups, ethanol fuels, and dedicated track use with unwavering precision.
