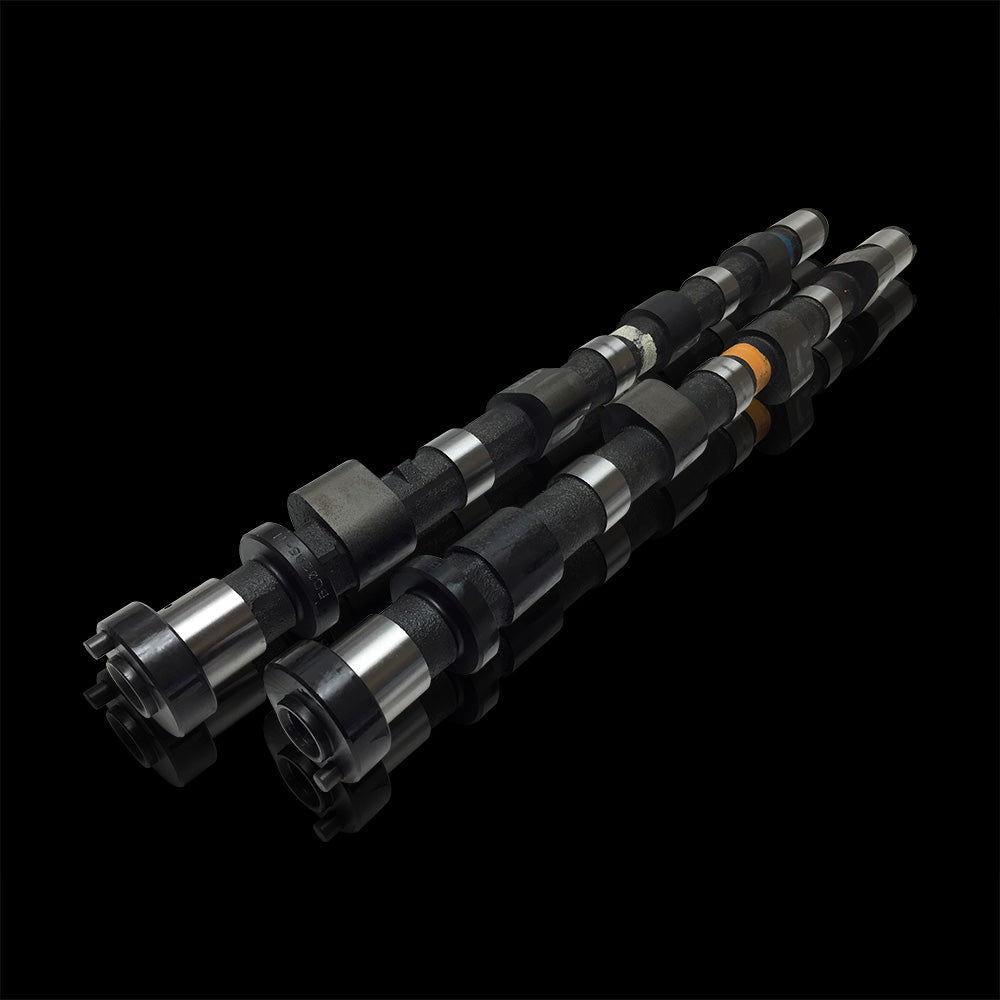

For the builder whose ambition exceeds the limits of off-the-shelf performance, the Brian Crower BC0206 Stage 3 Camshaft Kit represents the definitive step into the realm of dedicated race engineering. Engineered explicitly for the Nissan SR20DE and SR20DET platforms, these camshafts are not an upgrade—they are a transformation. Designed for fully built engines with supporting modifications, the BC0206 profile aggressively redefines the engine’s volumetric efficiency and power band, shifting it decisively towards high-RPM dominance. This is the camshaft specification chosen when the objective is uncompromising peak horsepower and torque for circuit attack, time attack, or drag racing, where every millisecond of valve event timing and every thousandth of an inch of lift translates directly to track position. If your build incorporates forged internals, ported and flowed cylinder heads, high-flow fuel systems, and stand-alone engine management, these are the camshafts that will unlock its true, savage potential.
Technical Profile & Design Philosophy
The BC0206 camshafts are the product of a singular design philosophy: maximize high-RPM airflow. The Stage 3 designation indicates a radical profile with significant increases in both duration and lift over stock and milder performance grinds. This aggressive lobe design holds the valves open for a substantially longer period and lifts them higher, allowing a massive volume of air and fuel to enter the cylinder and exhaust to be evacuated with minimal restriction. The lobe separation angle (LSA) is strategically narrowed compared to street-oriented cams. This increases valve overlap—the period where both intake and exhaust valves are open simultaneously—which harnesses exhaust gas scavenging to literally pull the fresh intake charge into the cylinder at high engine speeds. The result is a profound extension of the power band well beyond factory limits, but with the characteristic trade-off of a rough, loping idle and significantly reduced low-end vacuum. These cams announce their intent audibly and mechanically, communicating a pure, unadulterated race purpose.
Unmatched Performance Benefits
Installing the BC0206 camshaft set is a commitment to peak performance. The benefits are substantial and measurable, fundamentally altering the engine’s personality and output.
- Extreme High-RPM Horsepower: The core design goal. By dramatically improving volumetric efficiency at engine speeds above 5,000 RPM, these cams unlock horsepower figures that milder cams simply cannot approach, often realizing gains of 40+ horsepower on a fully built engine when tuned correctly.
- Radically Extended Power Band: Shifts the effective power curve upward, providing a relentless pull from the mid-range to the 8,500+ RPM redline required in competitive racing.
- Superior Exhaust Scavenging: The increased overlap and exhaust duration ensure a cleaner evacuation of spent gases, reducing cylinder temperature and allowing for more aggressive ignition timing and boost (on turbo applications).
- Engineered for Boost (SR20DET): The profile is exceptionally well-suited for forced induction. The enhanced exhaust scavenging is critical for efficiently clearing cylinders under boost, reducing back-pressure, and mitigating detonation, leading to a safer, more powerful turbocharged engine.
- Billet Steel Core Construction: Manufactured from premium-quality 8620 steel billets, then precision machined and micro-polished. This ensures exceptional strength to resist lobe wear and valve float at extreme RPM, providing durability that matches the performance.
Vehicle Fitment & Prerequisite Build Level
Critical Note: The BC0206 Stage 3 camshafts are exclusively for fully built, non-street-driven competition engines. They are NOT suitable for daily drivers or stock engines. Proper operation requires extensive supporting modifications.
Direct Application: Nissan SR20DE and SR20DET engines found in:
- Nissan 180SX / 200SX / 240SX (S13, S14) with SR20DET
- Nissan Silvia (S13, S14, S15) with SR20DE(T)
- Nissan Bluebird (U12) with SR20DE(T)
- Nissan Pulsar GTi-R (RNN14) with SR20DET
Mandatory Supporting Modifications Include: Forged pistons and connecting rods, upgraded valve springs and retainers (such as Brian Crower BC0240 kit), ported cylinder head, high-flow fuel injectors and pump, standalone ECU (e.g., Haltech, Link, AEM), adjustable cam gears for fine-tuning, and a performance clutch. For turbo applications, a larger turbocharger, front-mount intercooler, and boost controller are essential. Neglecting these components will result in poor performance, engine damage, or complete failure.
Technical Specifications & Comparison
The following table details the exact specifications of the BC0206 camshaft set, illustrating the substantial leap from factory parameters. Understanding these numbers is key to planning your engine management strategy and tuning approach.
| Specification | BC0206 Intake Cam | BC0206 Exhaust Cam | OEM SR20DET (Approx.) |
|---|---|---|---|
| Duration at 0.050″ Lift | 272° | 272° | 240°-248° |
| Gross Valve Lift | 11.50 mm (0.453 in) | 11.50 mm (0.453 in) | ~9.0 mm (0.354 in) |
| Lobe Separation Angle (LSA) | 112° | ~114°-116° | |
| Recommended RPM Range | 4,800 – 9,000+ RPM | Idle – 7,000 RPM | |
Installation & Tuning Imperatives
Success with the BC0206 camshafts is 100% dependent on professional installation and expert tuning. Installation requires precise timing of the camshafts relative to the crankshaft. The use of adjustable cam gears is non-negotiable, allowing the tuner to dial in the valve timing to optimize the power band for your specific combination of turbo, exhaust, and intake. This process, known as “degreeing the cams,” is critical. The standalone ECU must then be meticulously mapped to accommodate the drastically altered air intake characteristics, significantly reduced manifold vacuum, and the need for much higher idle speed (typically 1,100-1,300 RPM). Ignoring these steps will lead to poor driveability, backfiring, and severe performance loss. For a deep dive into the science of camshaft timing and tuning, refer to this authoritative resource on camshaft degreeing fundamentals at EngineLabs.
Conclusion: The Ultimate SR20 Race Cam
The Brian Crower BC0206 Stage 3 Camshaft Kit is the final, decisive component in a max-effort SR20 build. It makes no concessions for comfort, emissions, or low-speed tractability. Its purpose is singular: to dominate at the highest echelons of RPM. By committing to the required suite of supporting modifications and expert tuning, you equip your engine with the valve train command needed to extract every last ounce of power from your forged internals and turbo system. This is not merely a part—it is the declaration of a race-ready engine. Choose the BC0206 when second place is not an option.
