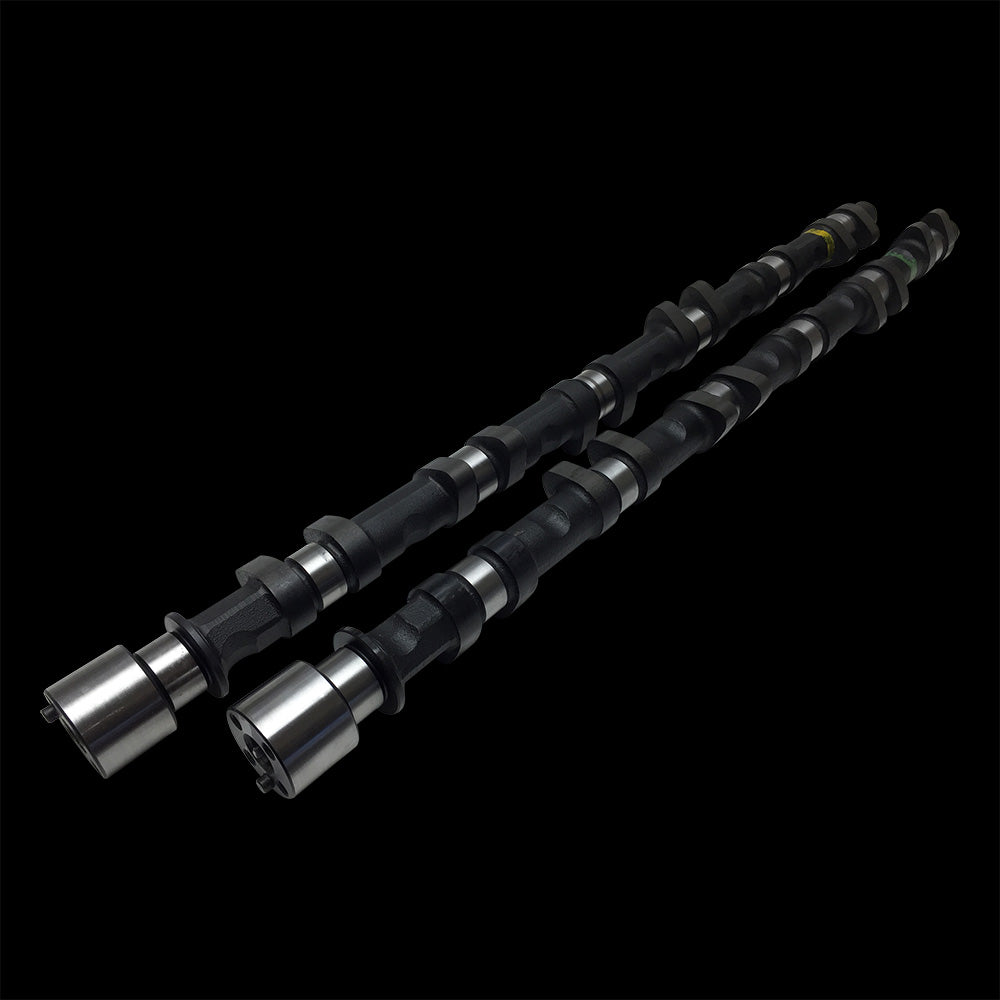

BC0232 – Nissan RB26DETT Stage 2+ Camshafts – Street/Drift Spec

For the Nissan RB26DETT enthusiast pushing beyond factory limitations, the bottleneck to power and response is often the factory camshafts. Designed for a balance of emissions, idle quality, and broad reliability, they strangle the true potential of this legendary inline-six. The BC0232 – Brian Crower Stage 2+ Camshafts for the Nissan RB26DETT represent a calculated engineering solution for the dedicated street performance and aggressive drift driver. This is not a radical race-only grind; it is a precision-machined upgrade that redefines the engine’s volumetric efficiency and power curve without sacrificing the driveability required for competitive use. Engineered with proprietary lobe profiles, enhanced lift, and optimized duration, these Street/Drift Spec cams unlock significant mid-to-top-end horsepower and torque, transforming throttle response and pulling power where it matters most on the circuit or the mountain pass. As experts in performance camshaft selection and engine tuning often note, the correct cam profile is the cornerstone of a responsive, high-output forced induction build.

Precision Engineered Camshaft Design & Material Science

The BC0232 camshafts are a testament to modern performance metallurgy and CNC machining precision. Manufactured from a premium-grade 8620 chromoly steel billet, each camshaft undergoes a rigorous process of machining, heat treatment, and finishing. The core material provides exceptional tensile strength and fatigue resistance, critical for maintaining exact lobe geometry under the high spring pressures and rotational forces of a modified RB26DETT. Brian Crower’s proprietary CNC-ground lobe profiles are the heart of the upgrade. Unlike generic regrinds that compromise base circle geometry, these are manufactured from solid billet, ensuring perfect lobe centerlines, base circles, and journal dimensions for precise fitment and optimal valvetrain geometry.

The lobes are finished with a specialized micro-polishing process that reduces surface friction between the lobe and lifter, minimizing wear and allowing for more aggressive ramp rates without compromising longevity. This attention to detail ensures that the advertised lift and duration are consistently achieved across all six cylinders, providing balanced airflow into each combustion chamber. The camshafts are designed as a complete set, with specific intake and exhaust profiles engineered to work in harmony, optimizing scavenging efficiency and cylinder filling across the targeted RPM band.

The Street/Drift Spec Philosophy: Balanced Aggression

The “Stage 2+” and “Street/Drift Spec” nomenclature is a direct communication of intent. This profile sits deliberately between a mild street upgrade and an all-out race cam. The aggressive intake and exhaust lift (detailed in the specifications table) work to drastically increase the engine’s ability to move air. For a turbocharged engine like the RB26DETT, this means the turbochargers can breathe more efficiently, reducing pumping losses and decreasing exhaust backpressure. The result is a broader, flatter torque curve with a pronounced surge in power from approximately 3,500 RPM to the 8,000+ RPM redline.

This powerband is ideal for both street and drift applications. On track, it provides relentless pull out of corners. In drift, the strong mid-range torque allows for easier initiation and maintenance of slides without constantly riding the limiter. Crucially, the profile retains enough vacuum at idle for power brakes and manageable street manners, with a characteristic aggressive, lumpy idle that signals its performance intent without being obnoxious or unstable. It demands supporting modifications—notably upgraded valve springs and retainers—but does not require radical head machining or compromise daily usability for the committed enthusiast.

Performance Benefits & System Synergy

Installing the BC0232 camshafts is a transformative modification, but it must be viewed as a core component within a synergistic system. The benefits are realized fully when paired with complementary upgrades.

• Substantial Mid-to-Top-End Power Gains: Expect significant increases in horsepower and torque, typically ranging from 30 to 70+ wheel horsepower depending on turbo, fuel, and tuning support, with power holding strong to high RPM.
• Enhanced Turbo Spool & Response: Improved exhaust scavenging helps spin turbochargers faster, reducing lag and improving transient throttle response.
• Optimized Airflow for Larger Turbos: Effectively supports the airflow demands of modern GTX, BorgWarner, or twin-scroll turbo upgrades that overwhelm stock cams.
• Improved Volumetric Efficiency (VE): The engine becomes a more effective air pump, generating more power per unit of boost, often allowing for similar power at lower boost pressures for increased safety.
• Competitive Driveability: The tailored profile maintains street manners while delivering the aggressive power curve needed for podium finishes in drift or time attack.
• Direct Bolt-In Fitment: Manufactured to OEM specifications for cam journals and bearings, ensuring a precise, hassle-free installation.

Vehicle Fitment & Prerequisite Upgrades

Vehicle Fitment: This camshaft set (BC0232) is engineered specifically for the Nissan RB26DETT twin-turbo inline-six engine. Direct application is for vehicles including:

Nissan Skyline GT-R R32 (1989-1994)

Nissan Skyline GT-R R33 (1995-1998)

Nissan Skyline GT-R R34 (1999-2002)

Note: Also fits RB26DETT-swapped vehicles where the engine retains the stock cylinder head and valvetrain configuration.

Critical Prerequisite & Supporting Modifications: To operate safely and reliably, the BC0232 Stage 2+ camshafts ABSOLUTELY REQUIRE complementary upgrades. Attempting to run these cams on a stock valvetrain will lead to valve float, catastrophic engine failure, and bent valves.

• Upgraded Valve Springs & Titanium Retainers (MANDATORY): The increased lift and aggressive ramp rates exceed the capacity of factory springs. A kit like the Brian Crower BC0119 or equivalent dual-spring/retainer set is required to control the valves at high RPM.
• Engine Tuning (MANDATORY): The increased airflow radically changes the engine’s fuel and ignition requirements. A standalone ECU (e.g., Haltech, Link, AEM) or a tuned factory ECU (Nistune) is essential to achieve safe air/fuel ratios and optimize ignition timing.
• Supporting Bolt-Ons (HIGHLY RECOMMENDED): To maximize the benefit, consider upgraded turbochargers, a high-flow intake system, a large front-mount intercooler, and a high-capacity fuel system (pump, injectors, regulator).

Technical Specifications & Installation Notes

Installation Notes: Professional installation is strongly advised. The process involves precise timing using the factory VCT system (Variable Cam Timing on intake camshafts). Camshafts must be installed with a high-quality assembly lubricant. Following installation, a meticulous process of setting base timing, performing a cold valve lash adjustment (using the factory shim-under-bucket system), and performing a thorough break-in cycle at varying mid-range RPM is critical before high-load operation. Final tuning must be performed on a dynamometer to ensure safety and extract maximum performance.

In conclusion, the Brian Crower BC0232 Stage 2+ Camshafts are a definitive, performance-proven upgrade for the RB26DETT builder targeting robust, responsive power for street performance and competitive drifting. They bridge the gap between moderate and extreme, offering a tangible, seat-of-the-pants transformation when integrated into a properly prepared engine. This is an investment in the fundamental architecture of power, delivering the aggressive breath your GT-R’s heart needs to fulfill its potential.
