BC6238 – Nissan RB26DETT – ProH625+ Connecting Rods w/ARP Custom Age 625+ Fasteners

In the relentless pursuit of horsepower and reliability within the RB26DETT platform, the connecting rod stands as the definitive linchpin between aggressive combustion forces and rotating assembly integrity. For builders pushing beyond the limits of factory components, the BC6238 ProH625+ Connecting Rod Set from Brian Crower represents not an upgrade, but a fundamental re-engineering of this critical link. Engineered specifically for the Nissan RB26DETT’s 86mm stroke, these rods are forged from premium 4340 chromoly steel and paired with the industry-leading ARP Custom Age 625+ fasteners, creating a symbiotic assembly designed for sustained operation in environments exceeding 1,500 horsepower. This is not merely a part; it is the calculated solution for engines where margin of error is zero and performance is everything.

Engineering for the Extremes: The ProH625+ & ARP 625+ Synergy

The BC6238 set is defined by the holistic integration of its two core components: the rod itself and its fastener. The ProH625+ rod begins as a premium 4340 chromoly steel billet, subjected to a proprietary forging process that aligns the grain structure for optimal strength in the high-stress areas of the beam and pin end. This is followed by a CNC machining process that ensures not just dimensional accuracy, but perfect balance and weight consistency from rod to rod—a critical factor for high-RPM harmonic stability. The “H625+” designation signifies the rod’s design and material readiness for the accompanying fastener.

The true differentiator lies in the included ARP Custom Age 625+ rod bolts. While many kits include standard ARP 2000 fasteners, Brian Crower specifies the 625+ alloy for this application. This aerospace-grade nickel-chromium alloy offers a significant increase in tensile and yield strength over 8740 or even 2000-grade steels, with superior resistance to fatigue and hydrogen embrittlement. As detailed in a foundational study on fastener technology by EngineLabs, the 625+ alloy maintains its clamp load under extreme thermal cycling, precisely the condition found in a high-boost, high-RPM RB26. The marriage of the ProH625+ rod body with these fasteners creates a connection capable of withstanding the immense tensile and compressive loads generated by modern turbocharging and aggressive nitrous or ethanol applications.

Precision Design & Weight-Matched Construction

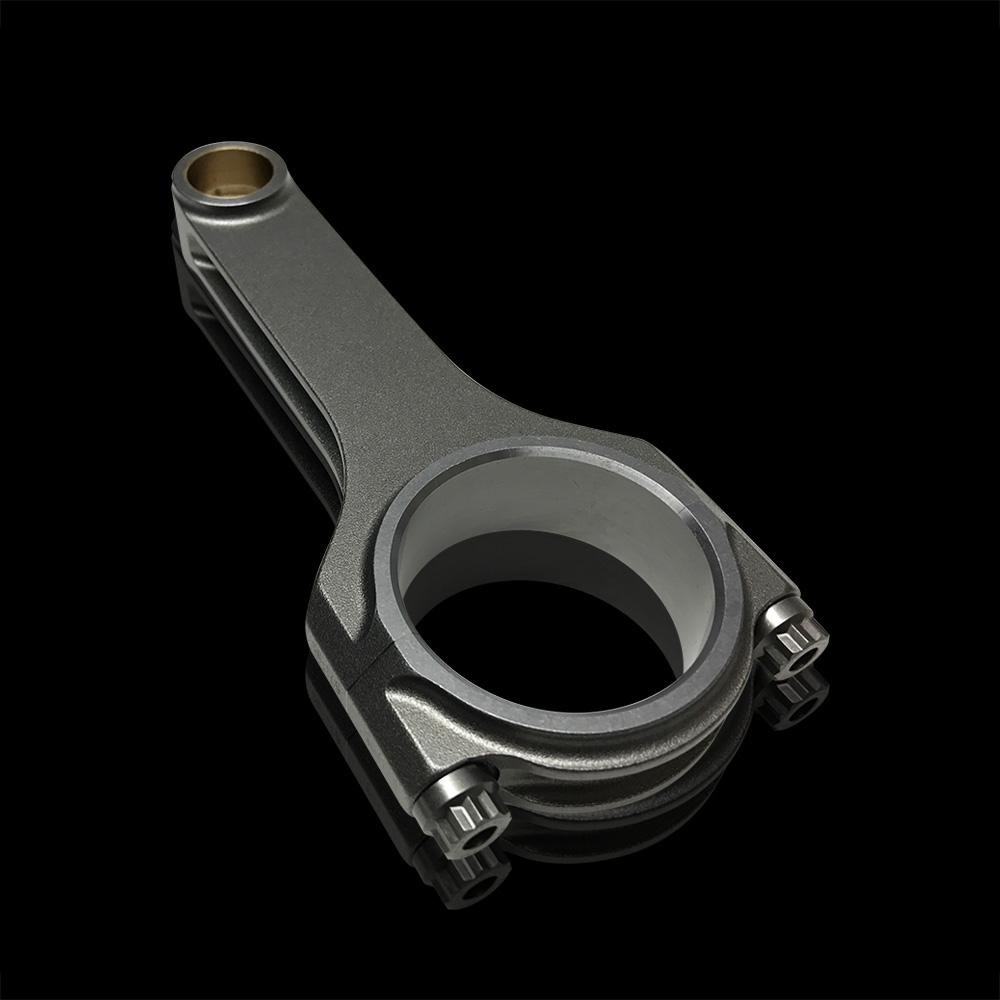

Every dimension of the BC6238 rod is calculated for performance and durability in the RB26 block. It features a “fork and blade” style I-beam design, which provides an exceptional strength-to-weight ratio, efficiently resisting both buckling under compression and stretching under tension. The small end is precision honed for a perfect fit to the piston pin, while the large end is machined to exacting tolerances for the crankshaft journal. Perhaps most crucial for a smooth, reliable engine is weight matching. Each rod in the BC6238 set is weight-matched to within ±1 gram, both at the big end and the small end. This meticulous balancing minimizes destructive harmonics, reduces bearing wear, and allows the engine to achieve and maintain higher rotational speeds with significantly less stress on the entire rotating assembly.

Uncompromising Benefits for the High-Horsepower RB26

Choosing the BC6238 ProH625+ rod set is a decision that impacts every aspect of engine performance, reliability, and build potential.

• Extreme Horsepower Capacity: Engineered and tested for applications exceeding 1,500 HP, providing a massive safety margin for street, strip, or track builds.
• Maximum RPM Capability: The balanced, forged 4340 construction and 625+ fasteners enable secure and stable operation at RPM levels far beyond the factory redline.
• Unmatched Fastener Reliability: ARP Custom Age 625+ bolts offer superior clamp load retention and fatigue resistance, eliminating rod bolt failure as a concern.
• Reduced Rotating Mass: The precision-forged and machined design removes unnecessary weight without sacrificing strength, improving throttle response and reducing inertial stress.
• Perfect Fitment & Balance: CNC-machined specifically for the RB26DETT’s 86mm stroke and weight-matched for harmonic stability and bearing longevity.
• Foundation For Boost & Nitrous: The definitive solution for engines utilizing high-boost turbo systems, progressive nitrous oxide injection, or high-concentration ethanol fuels.

Vehicle Fitment: Application-Specific Engineering

The BC6238 set is not a universal rod adapted to fit; it is engineered from the ground up for the iconic twin-turbocharged Nissan inline-six. Its dimensions are precise for the factory 86mm stroke crankshaft, ensuring correct piston deck height and compression ratio calculations in your build. Direct fitment includes:

• Nissan Skyline GT-R R32 (1989-1994) – RB26DETT
• Nissan Skyline GT-R R33 (1995-1998) – RB26DETT
• Nissan Skyline GT-R R34 (1999-2002) – RB26DETT
• Nissan Stagea 260RS Autech – RB26DETT

Note: For builds utilizing a stroker crankshaft (e.g., 90mm, 92mm), confirm specific rod length requirements as this set is designed for the standard stroke.

Technical Specifications: The Data of Dominance

For the builder who views the RB26DETT not as a stock engine but as a foundation for greatness, the BC6238 ProH625+ Connecting Rod Set is a non-negotiable component. It transcends the category of “supporting mod” to become the very backbone of a high-horsepower build. By integrating top-tier 4340 chromoly forging with the pinnacle of fastener technology from ARP, Brian Crower has created a product that delivers absolute mechanical confidence. This is the rod set that allows you to turn up the boost, advance the timing, and hold the throttle open longer, secure in the knowledge that the connection between your piston and crank is the strongest link in the chain.
