BC0238 – Nissan RB26DETT Stroker Kit – 79mm Stroke/ProH625+ Rods

For the builder who views the legendary Nissan RB26DETT not as a relic but as a foundation, the pursuit of displacement and ultimate strength is a non-negotiable engineering imperative. The BC0238 Nissan RB26DETT Stroker Kit from Brian Crower is not merely a collection of parts; it is a fully realized blueprint for transformation. Engineered to elevate the iconic 2.6-liter inline-six to a formidable 2.9-liter configuration, this kit transcends typical bolt-on upgrades. It is a systematic re-engineering of the engine’s rotating assembly, centered on a monstrous 79mm stroke crankshaft and fortified with Pro Series H625+ connecting rods and custom-forged pistons. This kit is designed for one purpose: to provide an unshakable, high-RPM foundation capable of supporting four-digit horsepower figures while delivering the broad, responsive torque curve that defines a truly modern performance engine. It is the definitive choice for professional tuners and dedicated enthusiasts building for absolute supremacy on the strip, circuit, or street.

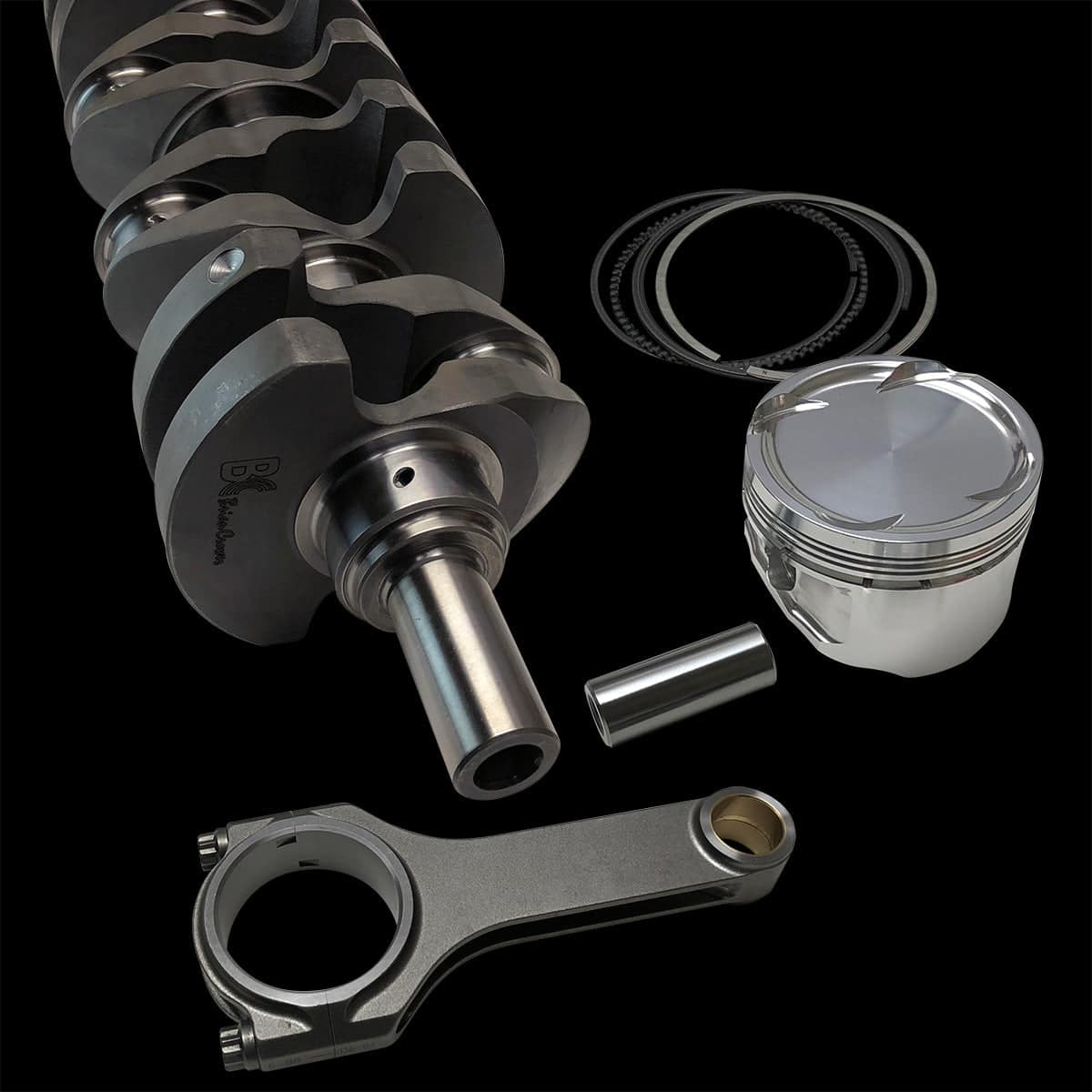

Core Components: A Foundation Forged from 4340 Billet Steel

The heart of any stroker kit is its integrity under extreme load, and the BC0238 establishes its dominance from the core outward. Every component is selected and manufactured to a standard that meets or exceeds the demands of professional racing.

4340 Billet Steel Crankshaft: The 79mm Stroke Centerpiece

This is not a reground or modified factory unit. The kit’s centerpiece is a completely new crankshaft, CNC-machined from a single billet of premium 4340 chromoly steel. The 79mm stroke represents a significant increase over the stock ~73.7mm stroke, directly responsible for the substantial displacement gain. Billet construction is critical, as the grain structure of the steel is uniform throughout, providing superior tensile strength and fatigue resistance compared to cast or even forged units. Each crank is precision-balanced to exacting tolerances, minimizing harmonic vibrations that can destroy bearings and other components at sustained high RPM. The journals are micropolished to a mirror finish, promoting optimal oil film retention and reducing friction for maximum durability.

Pro Series H625+ Connecting Rods: The Ultimate Link

To harness the increased leverage of the 79mm stroke, the connecting rods must be indestructible. Brian Crower supplies its top-tier ProH625+ rods, crafted from 4340 chromoly steel and heat-treated to a proven H-beam design. The “H625+” designation signifies a material with an ultimate tensile strength exceeding 625,000 PSI—a rating reserved for the most severe applications. These rods are dimensionally specific to the stroker configuration, ensuring perfect piston deck height and pin placement. They feature ARP 2000 or 625+ rod bolts (kit dependent) as standard, the industry benchmark for fastener strength, eliminating the weak point found in many OEM-style rods.

Performance Engineering & Power Delivery Benefits

Installing this stroker kit fundamentally alters the engine’s thermodynamic and mechanical characteristics. The benefits are not abstract; they are measurable, tangible improvements that translate directly to performance.

• Substantial Displacement Increase: The core 2.6L engine is expanded to approximately 2.9 liters (precise displacement depends on final overbore). This yields an immediate gain in torque across the entire RPM band, improving throttle response and reducing turbo lag.
• Broad, Flat Torque Curve: Increased displacement provides more cylinder pressure per combustion event. This results in a torque curve that builds earlier and remains plateau-like, giving the vehicle a relentless, tractable feel that is especially beneficial in road racing and high-speed acceleration.
• Enhanced High-RPM Stability: The professionally balanced, over-built rotating assembly is engineered to operate smoothly beyond 9,000 RPM. This allows builders to safely utilize aggressive camshaft profiles and turbocharger combinations that make power at the very top of the rev range.
• Foundation for Extreme Power: With a static compression ratio tailored to your fuel and boost goals (via piston selection), this assembly is routinely used in builds exceeding 1,200 wheel horsepower. The 4340 billet crank and Pro rods are the insurance policy for your entire investment.
• Improved Combustion Efficiency: The matched piston and rod combination allows for optimal squish band and combustion chamber design, promoting more complete fuel burn which can contribute to both power gains and improved stability under boost.

Installation Precision & Final Assembly Considerations

A kit of this caliber demands an installation process that matches its quality. This is not a beginner’s project and requires the hand of an experienced machinist and engine builder. Critical steps include verifying main bearing clearances with precision gauges, ensuring proper piston-to-wall and ring end gap clearances based on your final bore size and intended use, and performing a mock assembly to check piston-to-valve clearance, especially if using high-lift camshafts. The block will likely require machining to clear the increased stroke radius at the bottom of the cylinder bores, a process known as “notching” or “clearancing.” Always consult with your machinist. For a deep dive into the nuances of RB26 bottom-end assembly and clearancing, refer to this authoritative technical resource on engine building fundamentals at MotoIQ.

Vehicle Fitment

The BC0238 Stroker Kit is designed as a direct replacement for the factory rotating assembly in the following Nissan vehicles equipped with the RB26DETT engine:

• Nissan Skyline GT-R R32 (1989-1994)
• Nissan Skyline GT-R R33 (1995-1998)
• Nissan Skyline GT-R R34 (1999-2002)
• Nissan Stagea 260RS Autech (WGNC34)
• Other vehicles utilizing a complete RB26DETT engine swap. Compatibility with RB25DET/NEO or RB30 blocks may require additional research and component mixing; consult with your supplier or Brian Crower technical support.

Technical Specifications: BC0238 Stroker Kit
