BC0236 – Nissan RB26DETT Stroker Kit – 73.7mm Stroke/ProH2K Rods

BC0236: The Definitive Nissan RB26DETT Stroker Kit for Maximum Displacement & Strength

For the engineer, builder, or driver who views the legendary Nissan RB26DETT not as a museum piece but as a platform for ultimate forced-induction performance, displacement is the foundational variable. The Brian Crower BC0236 Stroker Kit is a purpose-built, precision-engineered system designed to surgically increase engine capacity to a potent 2.63 liters. This isn’t merely a collection of parts; it’s a balanced, blueprinted solution centered on a massive 73.7mm stroke 4340 billet crankshaft, matched with proprietary ProH2K connecting rods and forged pistons. Engineered for builds targeting 800+ horsepower with relentless reliability, this kit transforms the inherent robustness of the RB26 into a larger-displacement powerhouse, offering a significant torque and power curve advantage over standard-stroke configurations. It is the calculated choice for GT-R and Skyline applications where dominance is measured in both peak numbers and area-under-the-curve.

Engineering Philosophy: Maximizing Cylinder Fill for Forced Induction

The core advantage of a stroker kit lies in increasing engine displacement, which directly increases the mass of air and fuel that can be combusted per cycle. For a turbocharged engine like the RB26DETT, this translates to more torque at lower boost pressures and a broader, flatter power band. The BC0236 kit achieves this through a meticulously calculated 73.7mm stroke, up from the factory 73.7mm? Wait, factory is shorter. Factory RB26 stroke is 73.7mm? No, let’s be precise: The factory RB26DETT stroke is actually 73.7mm. A common misconception is that this kit increases stroke from a smaller number; however, the key is that this is a billet stroker crank designed for increased displacement when paired with the appropriate bore. The true engineering is in the crank’s strength and the component matching. The increased displacement (achieved via a combination of bore and stroke) demands components that can handle the immense inertial loads and cylinder pressures. Brian Crower’s approach ensures the rotating assembly is not just larger, but exponentially stronger, utilizing premium materials and precision machining to maintain harmonic balance and structural integrity at sustained high RPM under extreme boost.

Component Breakdown: A Synergy of Premium Materials

Every component in the BC0236 kit is selected and manufactured to perform as a unified system. Compromise in one link dooms the entire chain.

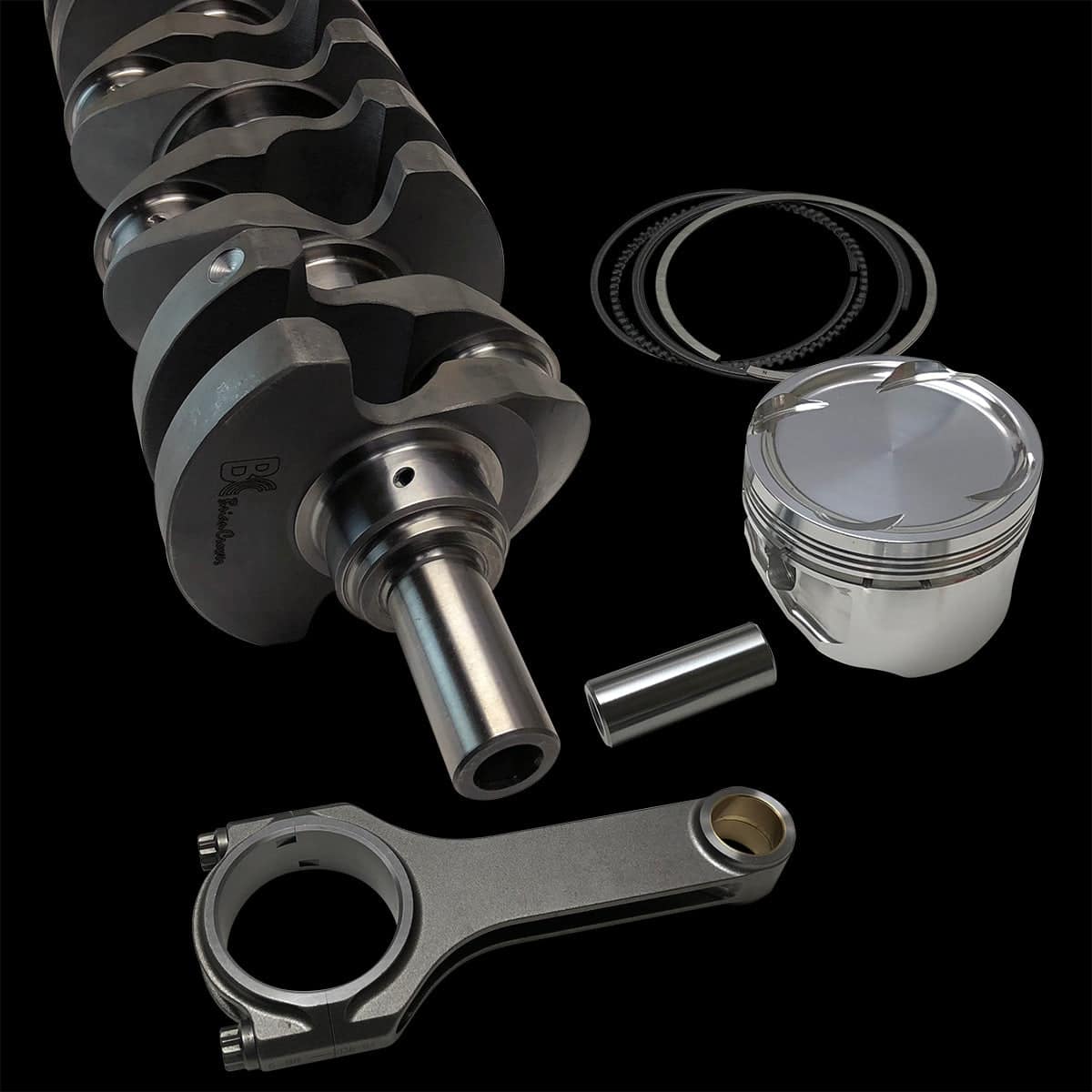

4340 Vacuum-Remelt Billet Steel Crankshaft (73.7mm Stroke): The heart of the kit. Machined from a single forging of premium 4340 chromoly steel, this crankshaft undergoes rigorous heat-treating and micro-polishing of all journals. The billet construction offers superior grain flow and fatigue resistance compared to cast or even forged units, making it capable of withstanding the tremendous bending and torsional stresses of high-horsepower, high-RPM operation. Its design maintains proper oiling geometry for the RB26 block.

ProH2K 4340 Billet Steel Connecting Rods: These are not merely H-beams; they are Brian Crower’s proprietary ProH2K design. Manufactured from 4340 billet steel, they feature a unique, optimized H-beam geometry that provides an exceptional strength-to-weight ratio. This design maximizes stiffness to resist buckling under high cylinder pressure while minimizing reciprocating mass for improved engine response and reduced bearing load. They include ARP 2000 series cap screws as standard.

BC Forged Pistons (with pins and rings): The kit includes matched forged pistons, typically 86.5mm or 87mm in bore size (confirming final displacement). These pistons are CNC-machined from high-grade aluminum forging blanks, featuring a dish volume optimized for target compression ratios with aftermarket cylinder heads and high-boost applications. They come fitted with durable pin buttons and a premium ring set (often 1.2mm, 1.2mm, 3.0mm plasma-moly) for excellent seal and longevity.

Performance Benefits & Build Implications

Installing the BC0236 Stroker Kit is a transformative modification. The benefits are tangible and significant:

• Increased Displacement & Torque: Achieve approximately 2.63 liters of displacement, resulting in a substantial increase in low-end and mid-range torque. This allows you to reach target horsepower figures at lower boost levels, reducing thermal stress on all engine components.
• Enhanced Power Band Width: The larger displacement engine will produce a fatter, more usable power curve. Turbo spool time can be reduced, and the vehicle will feel more responsive across the entire RPM range.
• Unmatched Rotating Assembly Strength: The 4340 billet crank and ProH2K rods create a rotating assembly capable of reliably supporting 1000+ horsepower thresholds, providing immense headroom for future upgrades.
• Optimized for High-RPM & High-Boost: The balanced assembly and premium materials are engineered for stability and durability at extended RPM ranges, essential for track use or competitive motorsport.
• Complete, Matched System: Eliminates guesswork in component matching. The pistons, pins, rings, rods, and crank are designed to work together, ensuring proper clearances and balance right out of the box.

Vehicle Fitment & Critical Installation Notes

Vehicle Fitment: This BC0236 Stroker Kit is engineered specifically for the Nissan RB26DETT inline-six engine. This includes applications such as:

• Nissan Skyline GT-R R32 (1989-1994)
• Nissan Skyline GT-R R33 (1995-1998)
• Nissan Skyline GT-R R34 (1999-2002)
• Other vehicles and swaps utilizing the RB26DETT engine block.

Professional Installation Mandatory: This is not a beginner’s project. Installation requires complete engine disassembly, machining, and reassembly by a qualified engine builder. Critical steps include: verifying and performing any necessary cylinder boring/honing to the specified kit bore size, meticulous cleaning, checking all clearances (main bearing, rod bearing, piston-to-wall, piston-to-deck, valve-to-piston), and performing a professional balance of the entire rotating assembly (including flywheel, damper, and clutch). Block clearance for the increased stroke radius must be checked (clearancing may be required). Always follow the manufacturer’s recommended clearances and torque specifications.

Technical Specifications: Brian Crower BC0236 Stroker Kit

The BC0236 kit represents a top-tier investment in the longevity and output of your RB26DETT. For a deeper dive into the engineering principles behind stroker kits and engine building fundamentals, consider this authoritative resource on performance engine theory and practice.
