BC0249U – Nissan VR38DETT Stroker Kit – 94.4mm Stroke/ProHD I-Beam Rods (Unbalanced)

For the engineer, builder, or driver for whom factory specifications represent a starting point, not a limit, the Brian Crower BC0249U Stroker Kit is a calculated declaration of intent. This is not a simple replacement assembly; it is a foundational re-engineering of Nissan’s legendary VR38DETT, systematically addressing its inherent volumetric constraints to unlock a profound step-change in displacement, torque, and power potential. Engineered for forced induction applications where ultimate cylinder pressure management and bottom-end integrity are non-negotiable, this unbalanced kit provides the core rotating assembly for a 4.45-liter destroked configuration, centered on a commanding 94.4mm stroke crankshaft paired with premium ProHD I-Beam connecting rods and custom forged pistons. It is the definitive solution for builds targeting four-figure horsepower outputs while maintaining relentless street durability or dominant strip performance.

Architecting Displacement: The 94.4mm Stroke Crankshaft

The cornerstone of the BC0249U system is the custom-forged, 4340 chromoly steel crankshaft, machined to increase stroke from the factory 86.0mm to a significant 94.4mm. This strategic increase is the primary driver behind the engine’s expansion to 4.45 liters. Brian Crower’s execution here is critical: the forging process ensures a continuous grain flow that follows the crank’s contours, resulting in a component with superior tensile strength and fatigue resistance compared to cast or even billet machined units. The journals are precision-machined and micro-polished to exacting tolerances, minimizing friction and ensuring optimal oil film retention under extreme loads. Crucially, this kit is supplied unbalanced, acknowledging the reality of serious performance building. It allows the machinist or engine builder to precisely balance the entire rotating assembly—crank, rods, pistons, pins, and rings—as a unit. This custom balancing is essential for achieving silken high-RPM operation and longevity in a stroked, high-horsepower application, as it accounts for the specific weights of all ancillary components.

ProHD I-Beam Rods: The Structural Keystone

Connecting the increased stroke motion to the combustion event are Brian Crower’s renowned ProHD I-Beam Connecting Rods. Fabricated from premium 4340 chromoly steel via a forged manufacturing process, these rods are defined by their iconic I-beam design. This geometry places material precisely where it is needed to resist two primary failure modes: buckling under compression and stretching under tension. The wide beam center provides exceptional column strength to combat the immense cylinder pressures generated by turbocharging, while the robust cap design, secured by ARP2000 cap screws (included), ensures absolute clamping force and bearing alignment. Each rod is shot-peened for enhanced surface strength, magnafluxed to detect any subsurface flaws, and weight-matched to ensure consistent rotational mass. In the context of the increased stroke and leverage imposed by the 94.4mm crank, the ProHD rod’s resilience is the critical link that transforms increased displacement into reliable, repeatable power.

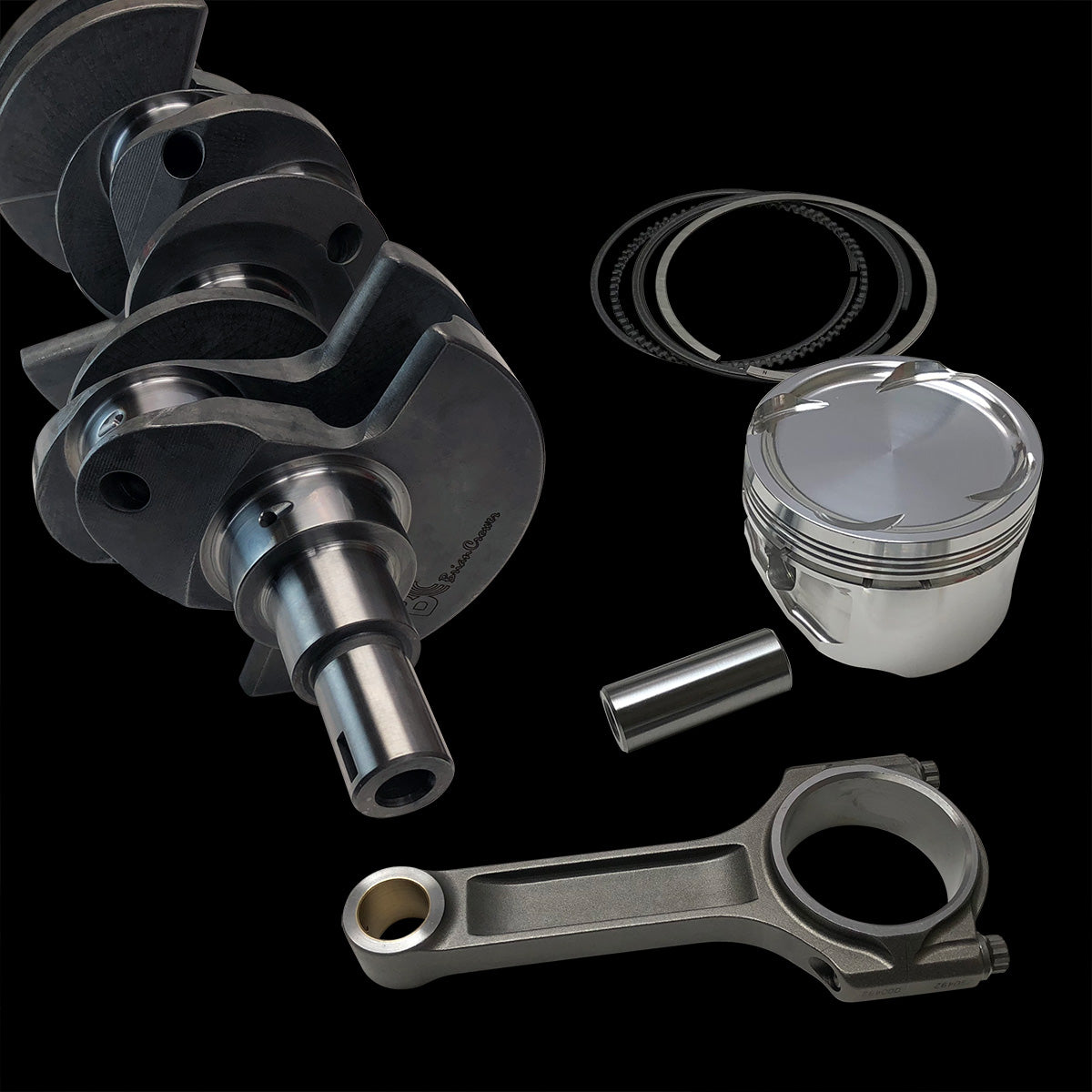

Forged Pistons & Complete System Integration

To complete the sealed combustion chamber, the kit includes a set of custom 4032 aluminum forged pistons, designed specifically for this stroker combination. The 4032 alloy offers an excellent balance of strength and thermal characteristics, with lower expansion rates than 2618 alloy, promoting tighter cold clearances and reduced noise in street-driven applications. The piston design is critical, as the increased stroke alters deck height and valve clearance dynamics. These pistons feature precisely calculated valve reliefs to accommodate aggressive camshaft profiles, a machined crown topography optimized for efficient combustion, and a advanced ring land design to support the included performance ring set. The integration of these components—crank, rod, and piston—is where Brian Crower’s engineering expertise shines. The rod length and piston compression height are meticulously calculated to maintain a safe and functional deck clearance with the increased stroke, ensuring proper squish band dynamics and preventing piston-to-head contact.

Assembly Philosophy & Technical Considerations

Successfully implementing the BC0249U kit demands a builder’s mindset and precision machining. The unbalanced crankshaft requires professional balancing as part of the assembly process. Furthermore, the block must be clearanced (“notched”) to accommodate the increased swing radius of the stroker crankshaft and the larger rod bolts. This is a standard but essential machining procedure for any stroker application. Kit selection also necessitates a clear understanding of your power goals. The 4.45L stroker excels at building massive area under the curve—immense mid-range torque that allows for quicker spool of large turbochargers and devastating acceleration. As noted in technical discussions on stroker motor theory, such as this analysis on VR38DETT bottom-end capabilities at Engine Labs, increasing stroke fundamentally changes the engine’s torque characteristics and must be matched with appropriate turbo, fuel, and tuning strategies.

Vehicle Fitment & Application

The BC0249U Stroker Kit is engineered as a core upgrade for the Nissan VR38DETT engine platform. Its primary application is for builders seeking the ultimate in displacement-based performance gains for street, strip, or time-attack use.

• Nissan GT-R (R35): All model years (2009-Present). The definitive application for transforming the factory 3.8L engine into a 4.45L powerhouse.
• Engine Swap Applications: Any vehicle or chassis utilizing a swapped VR38DETT engine where maximum displacement and performance are key objectives.
• Note: This is an unbalanced rotating assembly. Professional machining (block clearancing, crank balancing) is required. Kit is intended for use with aftermarket engine bearings (sold separately). Final compression ratio is determined by piston selection and cylinder head/milling specs.

Performance Benefits & Technical Specifications

• Substantial Displacement Increase: Elevates engine capacity from 3.8L to approximately 4.45L, a ~17% increase, for significantly greater torque and horsepower potential.
• Enhanced Torque Production: The longer stroke inherently increases leverage and cylinder filling, generating massive mid-range torque for faster turbo spool and violent acceleration.
• Forged Rotating Assembly Durability: 4340 chromoly crank and ProHD rods, combined with 4032 forged pistons, create a short-block capable of reliably sustaining 1500+ horsepower with proper supporting mods.
• Precision Building Flexibility: Supplied unbalanced to allow for exact rotating assembly balancing tailored to your specific components, ensuring optimal harmonics and longevity.
• Optimized For Forced Induction: The entire system is designed from the ground up to manage the extreme pressures and thermal loads of high-boost turbocharging or nitrous oxide application.

The Brian Crower BC0249U Stroker Kit represents the pinnacle of deliberate, displacement-based performance engineering for the VR38DETT. It transforms the architecture of the engine, trading a slight reduction in ultimate rev potential for a monumental increase in tractable force and volumetric efficiency. For the builder whose calculus is based on tangible results—quicker spool, a broader powerband, and a foundation for four-digit power figures—this unbalanced rotating assembly is the essential first equation. It provides the forged, precision-machined components; the builder provides the expertise, supporting systems, and tuning to fully solve for performance.
