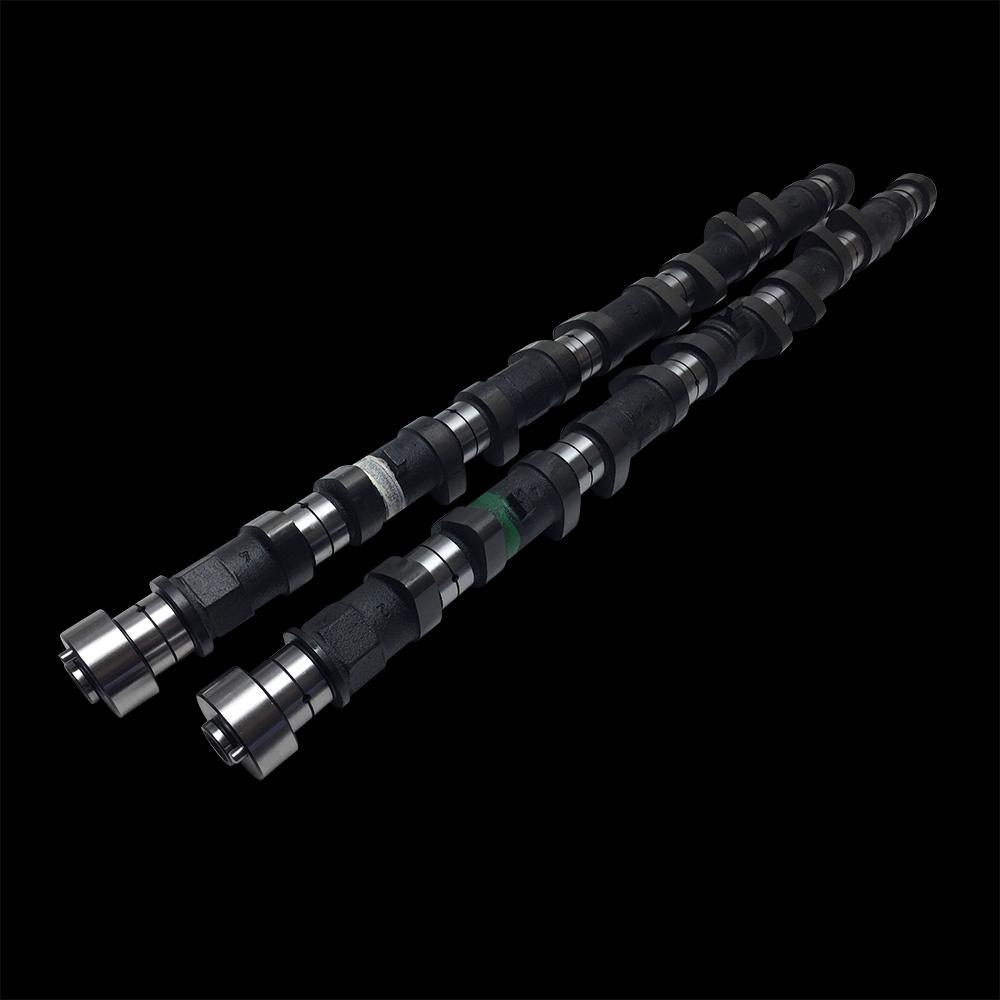

BC0304 – Toyota 2JZGTE Stage 3+ Camshafts – Race Spec

Introduction: The Heartbeat of a Legendary Powerplant

For the dedicated builder, the Toyota 2JZ-GTE is more than an engine; it’s a canvas for potential. Its legendary robustness is the foundation, but unlocking its ultimate power and response requires precision intervention at its core. The valvetrain, governed by the camshafts, is the critical gateway between the engine’s breathing capacity and its explosive output. The Brian Crower BC0304 Stage 3+ Camshaft Set represents a master-class in camshaft engineering, designed not merely to modify, but to fundamentally transform the 2JZ-GTE’s volumetric efficiency for serious street, strip, and competition applications. This is not a generic “performance” grind; it is a purpose-built, race-spec profile that demands supporting modifications and expert tuning to deliver unparalleled gains in horsepower and torque across a broad, usable powerband.

Engineering Philosophy: Beyond Basic Duration and Lift

Many aftermarket camshafts focus solely on increased duration and lift figures. Brian Crower’s approach with the BC0304 set is holistic, considering the complete valve event. These Stage 3+ grinds utilize aggressive lobe profiles that dramatically accelerate valve opening and closing rates. This reduces the time the valve spends at low lift, where flow is poor, and maximizes the time spent at high lift, where the port flows most efficiently. The result is a significant increase in the area under the valve lift curve—the true measure of a camshaft’s flow potential.

Furthermore, these cams are manufactured from premium 8620-grade chromoly steel and undergo a proprietary CNC machining and heat-treating process. This ensures exceptional surface hardness for wear resistance against high-pressure valve springs, while maintaining a ductile core to handle the immense stresses of high-RPM operation. The precision of the grind is paramount; lobe-to-lobe consistency ensures balanced cylinder filling, which is critical for smooth engine operation and maximizing power output.

Core Design Objectives of the BC0304 Profile

The Stage 3+ designation indicates a profile optimized for forced induction engines running substantial boost pressure, typically from a large-frame turbocharger or twin-turbo setup. The primary objectives are:

• Expand the Powerband: Move the torque curve higher in the RPM range while maintaining strong mid-range pull, preventing power from falling off at the redline.
• Increase Volumetric Efficiency: Drastically improve the engine’s ability to ingest air and expel exhaust gases, reducing pumping losses and lowering exhaust back-pressure.
• Optimize Overlap for Boost: Utilize a calculated amount of valve overlap (the period when both intake and exhaust valves are open) to leverage exhaust scavenging, which helps draw in the fresh intake charge and cool the combustion chamber—a critical factor under boost.
• Provide Stable Valve Control: The aggressive ramp rates necessitate a corresponding upgrade to high-performance valve springs and titanium retainers (such as Brian Crower’s BC0610 kit) to prevent valve float and ensure precise valve timing at all engine speeds.

Performance Benefits & Required Support Modifications

Installing the BC0304 camshafts is a transformative upgrade, but it is not a “bolt-on and go” component. Its full potential is only realized within a properly built engine and supporting system. When integrated correctly, the benefits are profound.

• Substantial Peak Horsepower Gains: Expect gains of 80-150+ wheel horsepower over stock cams, depending on overall engine setup, turbo size, and boost level. The engine will breathe efficiently at RPMs where the stock camshafts have completely choked flow.
• Broadened, Flattened Torque Curve: While peak torque may shift higher, the area under the torque curve increases significantly. This translates to stronger acceleration across a wider RPM range, making the car more responsive and faster both out of corners and on long pulls.
• Enhanced Turbo Spool & Response: Improved exhaust scavenging during the overlap period can help spin the turbocharger faster, reducing lag and improving transient throttle response. This is especially noticeable on large single-turbo conversions.
• Increased Engine Efficiency: Better cylinder filling and scavenging leads to a more complete combustion cycle, which can reduce exhaust gas temperatures (EGTs) and thermal stress on engine components under high load.

Mandatory Supporting Modifications Include: High-performance valve springs & titanium retainers, adjustable cam gears for precise degreeing, a standalone engine management system (e.g., AEM, Haltech, Link) capable of fine-tuning ignition and fuel maps for the new airflow characteristics, a clutch capable of handling the increased power, and a fuel system scaled to support the engine’s new airflow potential. For a deep dive into the theory behind camshaft selection and timing on the 2JZ platform, refer to this expert technical resource on MotoIQ.

Technical Specifications & Comparison

The following table details the exact specifications of the BC0304 camshaft set, providing a clear, quantitative comparison to the factory Toyota 2JZ-GTE camshafts. These figures are the blueprint of the performance transformation.

Vehicle Fitment & Final Installation Notes

Direct Application & Model Compatibility

The Brian Crower BC0304 Camshaft Set is engineered as a direct replacement for the following Toyota JZ-series engines. Correct identification of your engine’s cylinder head (various codes exist) is recommended prior to purchase.

• Toyota 2JZ-GTE: All versions found in:
  • Toyota Supra MKIV (JZA80) – 1993-1998
  • Toyota Aristo (JZS161) – 1997-2005
• Toyota 1JZ-GTE: Engines utilizing the solid lifter valvetrain (non-VVTi). This includes many 1JZ-GTE engines from:
  • Toyota Soarer (JZZ30) – 1990-1996
  • Toyota Chaser/Mark II/Cresta (JZX90, JZX100) – 1992-2001

Note: This camshaft set is not compatible with 2JZ-GTE VVTi engines (found in late-model Supras and Aristo) or 1JZ-GTE VVTi engines without significant head modification, as the VVTi mechanism requires a different camshaft design.

Installation Protocol & Professional Tuning Imperative

Installation requires a complete teardown of the cylinder head. Critical steps include:

1. Degreeing the Camshafts: This is non-negotiable. Simply aligning the timing marks is insufficient. Using adjustable cam gears, a degree wheel, and a dial indicator is essential to verify and set the intake and exhaust camshafts to the precise centerline specified in the cam card for optimal performance.
2. Checking Piston-to-Valve Clearance: The significant increase in lift and duration must be checked against your specific piston topology. This is especially critical with aftermarket high-compression or dished pistons. A clay check or physical measurement with a dial indicator is mandatory to prevent catastrophic interference.
3. Valvetrain Setup: Installing the required high-rate valve springs, titanium retainers, and checking installed height and spring pressure is crucial for reliability.

Finally, the engine must be tuned by a professional familiar with aggressive cam profiles on turbocharged engines. The ECU will require significant adjustments to idle speed, ignition timing, fuel delivery, and potentially VANOS/ignition control maps to accommodate the new airflow dynamics. When executed with this level of precision, the BC0304 Stage 3+ Camshafts cease to be a component and become the definitive catalyst for elevating your 2JZ-GTE into the upper echelons of performance.
