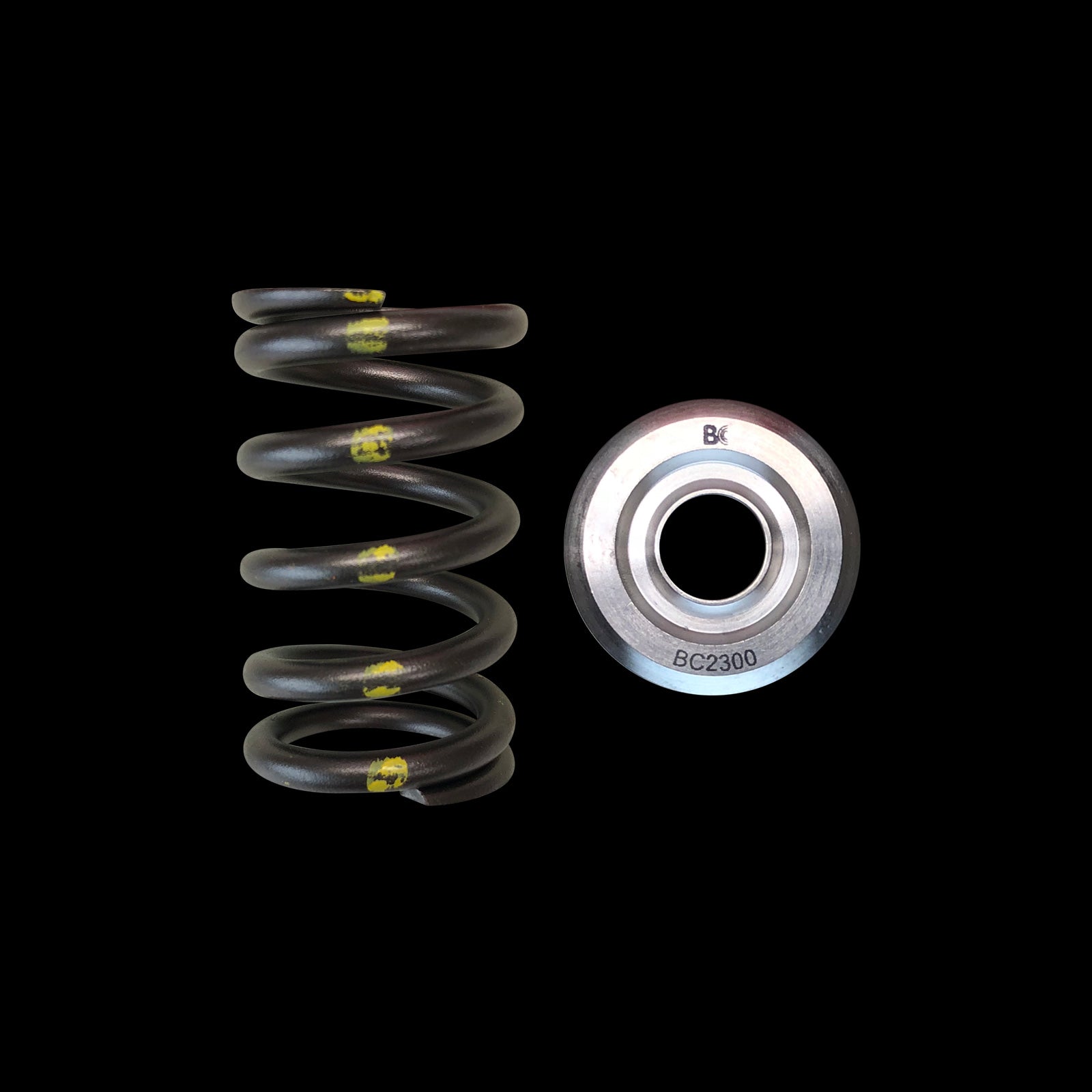

In the realm of high-performance Toyota 4-cylinder engines, the 3S-GTE and 3S-GE platforms stand as legends, renowned for their robust architecture and tuning potential. To unlock their ultimate capability, particularly under sustained high-RPM operation or forced induction stress, the valvetrain must be transformed from a potential failure point into a bastion of reliability. The BC0350-2 Single Spring & Titanium Retainer Kit from Brian Crower is not an upgrade; it is a fundamental re-engineering of this critical system. Engineered specifically for shim-over-bucket (shimless) configurations, this kit provides the precise coil bind margin, open pressure, and component strength required to maintain valve control where stock components falter. It is the definitive solution for builders targeting elevated redlines, aggressive cam profiles, and uncompromising reliability in competitive or street-performance applications.
Engineering the Ultimate Valvetrain Insurance
The stock valvetrain in the 3S-GTE and 3S-GE, while durable for OEM purposes, operates within a narrow safety margin. Increased boost pressure, higher volumetric efficiency, and elevated RPM exponentially increase the risk of valve float—a condition where the spring cannot close the valve in time, leading to catastrophic piston-to-valve contact. The BC0350-2 kit addresses this with a holistic, performance-first design philosophy. By pairing a meticulously calibrated single spring with aerospace-grade titanium retainers, it achieves a significant increase in usable RPM range and damping stability without the excessive friction and heat generation associated with dual or triple spring setups. This design is critical for maintaining power band integrity and preventing harmonics that can lead to spring resonance and failure.
Technical Advantages & Direct Benefits
- Optimized Single Spring Design: Provides a superior balance of high open pressure and controlled seat pressure, engineered to work in harmony with performance camshafts. The single spring design reduces valvetrain mass and internal friction compared to dual springs, translating to less parasitic power loss and lower operating temperatures.
- Aerospace Titanium Retainers (6Al-4V): The cornerstone of this kit. Titanium retainers offer a drastic reduction in reciprocating mass over stock steel units. This lower mass reduces the inertial load on the valve spring, allowing it to control the valve more effectively at high RPM, delaying the onset of valve float and extending component life.
- Precision-Calibrated Pressures: Each spring is manufactured to exacting tolerances, providing consistent pressures from spring to spring and cylinder to cylinder. This uniformity is paramount for balanced engine operation and predictable performance.
- Enhanced Coil Bind Margin: The spring is designed with a generous coil bind safety margin, ensuring that even with high-lift camshafts and potential slight settling over time, the spring will not “stack” or bind, which would instantly result in valvetrain failure.
- Direct Shimless Bucket Compatibility: Engineered as a drop-in solution for the factory shimless valvetrain geometry. This ensures correct installed height and valve tip geometry, preserving proper camshaft lobe interface and lifter rotation.
- Comprehensive Kit Inclusion: Supplied as a complete set for a 16-valve engine, including springs, retainers, and necessary seals. This eliminates guesswork and sourcing of individual components, guaranteeing system compatibility.
Detailed Technical Specifications & Construction
Every dimension and material choice in the BC0350-2 kit is the result of calculated performance engineering. The spring rate is not merely increased; it is optimized for the specific mass of the titanium retainer and the dynamic requirements of a modified 3S engine. The use of Chrome Silicon alloy wire (SAE 9254) for the springs provides exceptional fatigue resistance and heat tolerance, crucial for turbocharged applications where under-hood temperatures are extreme. The retainers are machined from 6Al-4V Titanium, the industry standard for high-performance applications, offering an unparalleled strength-to-weight ratio. For a deeper technical dive into the metallurgy and dynamics of titanium valvetrain components, refer to this authoritative resource on valvetrain component engineering.
| Specification | Detail / Measurement |
|---|---|
| Part Number | BC0350-2 |
| Spring Type | Single, Precision-Wound |
| Retainer Material | 6Al-4V Titanium (Aerospace Grade) |
| Outer Diameter (OD) | Approx. 1.250″ (Consult manual for precise fit) |
| Installed Height | Designed for OEM Shimless Bucket Geometry |
| Seat Pressure | Approximately 80-85 lbs (at OEM installed height) |
| Open Pressure | Approximately 200-220 lbs (varies with cam lift) |
| Coil Bind Height | Precisely engineered with significant safety margin |
| Spring Wire Material | Chrome Silicon (SAE 9254) |
| Quantity | 16 Springs, 16 Titanium Retainers (Full Set) |
| Valvetrain Type | Shim Over Bucket (Shimless) |
Precise Vehicle Fitment & Application
The BC0350-2 kit is engineered for a specific range of Toyota vehicles utilizing the 3S-GE and 3S-GTE engines with the shimless valvetrain design. Correct identification of your engine’s valvetrain type (shimless vs. shim-under-bucket) is critical before installation. This kit is not compatible with shim-under-bucket designs.
Primary Applications Include:
- Toyota Celica GT-Four (ST165, ST185, ST205) with 3S-GTE
- Toyota MR2 (SW20) Turbo with 3S-GTE
- Toyota Celica (5th & 6th Gen) with 3S-GE
- Toyota MR2 (SW20) NA with 3S-GE
- Later-model 3S-GE Beams engines with shimless buckets (Verification required)
Note: Always cross-reference your engine’s specific head casting and valvetrain configuration with the product specifications. Fitment for any non-OEM or heavily modified cylinder heads should be verified by measuring installed height and coil bind clearance.
Installation Considerations & Final Notes
Installation of the BC0350-2 kit demands mechanical precision. It is not a simple “swap and go” procedure. The installer must verify the installed height of each spring after assembly using a precise height micrometer. This measurement dictates the actual seat pressure. Furthermore, checking for coil bind clearance by measuring the spring’s compressed length at maximum valve lift (cam lift + valve lash) is non-negotiable. A minimum clearance of 0.060″ is a typical safe rule. We strongly recommend performing these checks, as variances in head machining, valve stem length, or valve seat recession can affect geometry. Pair this kit with high-quality performance camshafts, proper valve guides, and sturdy valves for a complete, balanced valvetrain system. When installed with due diligence, the Brian Crower BC0350-2 kit transcends being a component upgrade—it becomes the foundational reliability mod that enables every other performance enhancement on your 3S-GTE or 3S-GE to operate with confidence at the limit.
