BC0459 Chevrolet LS Series Wet Sump Stroker Kit: The Blueprint for Dominance

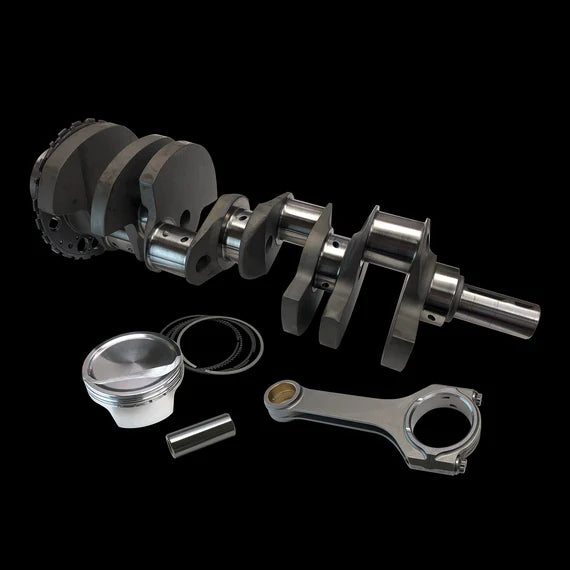

In the realm of high-performance LS engine building, displacement is the undisputed king of torque and horsepower. The BC0459 Chevrolet LS Series Wet Sump Stroker Kit from Brian Crower is not merely a collection of parts; it is a fully engineered, system-matched solution designed to transform your standard-displacement LS into a torque-monster stroker engine. Engineered around a massive 4.125-inch stroke 4340 forged steel crankshaft and paired with premium ProH2K connecting rods and CP Custom MTO pistons, this kit is the definitive choice for builders seeking maximum cubic inches, relentless durability, and precision fitment for wet-sump applications. Every component is machined to aerospace tolerances and balanced as an assembly, ensuring you receive a turn-key rotating assembly capable of supporting four-digit horsepower figures while maintaining street-driven reliability. This kit represents the pinnacle of stroker technology for the LS platform.

Engineering Philosophy: System-Matched Components for Uncompromised Performance

The critical failure point of many stroker builds is the piecemeal selection of components. The BC0459 kit eliminates this risk. Brian Crower’s engineers do not simply sell a crank, rods, and pistons; they design, test, and balance them as a cohesive rotating assembly. The 4.125-inch stroke is the centerpiece, dramatically increasing displacement—typically to 427 cubic inches in a standard 4.00″ bore LS2/LS3 block, or even larger with common overbores. This stroke length is optimized to provide a substantial leverage advantage for immense low- and mid-range torque, without introducing excessive piston speed that can compromise longevity. The accompanying ProH2K rods and CP pistons are specifcally configured for this crank’s stroke and intended RPM range, ensuring proper piston-to-valve clearance, optimal ring placement, and perfect deck height. This holistic engineering approach guarantees that all dynamic forces—inertial, tensile, and compressive—are managed in harmony.

The Foundation: BC 4340 Forged Steel Stroker Crankshaft

At the heart of the BC0459 kit lies the BC 4340 Forged Steel Crankshaft. Manufactured from premium SAE 4340 chromoly steel, it undergoes a rigorous forging process that aligns the grain structure for superior tensile strength and fatigue resistance. The 4.125-inch stroke is achieved through precise machining of the rod throws, which are then cross-drilled for enhanced oiling to the connecting rod bearings—a critical feature for high-RPM, high-load operation. The crankshaft is fully nitrided, creating an ultra-hard surface layer that reduces friction at the bearing journals and significantly increases wear resistance. Each unit is Magnaflux inspected for flaws and precision balanced to within 1 gram-inch. This crank is designed to be the immutable, unwavering foundation of your engine, capable of handling the brutal stresses imposed by forced induction or high-RPM nitrous applications.

Connecting Rods & Pistons: The ProH2K & CP MTO Alliance

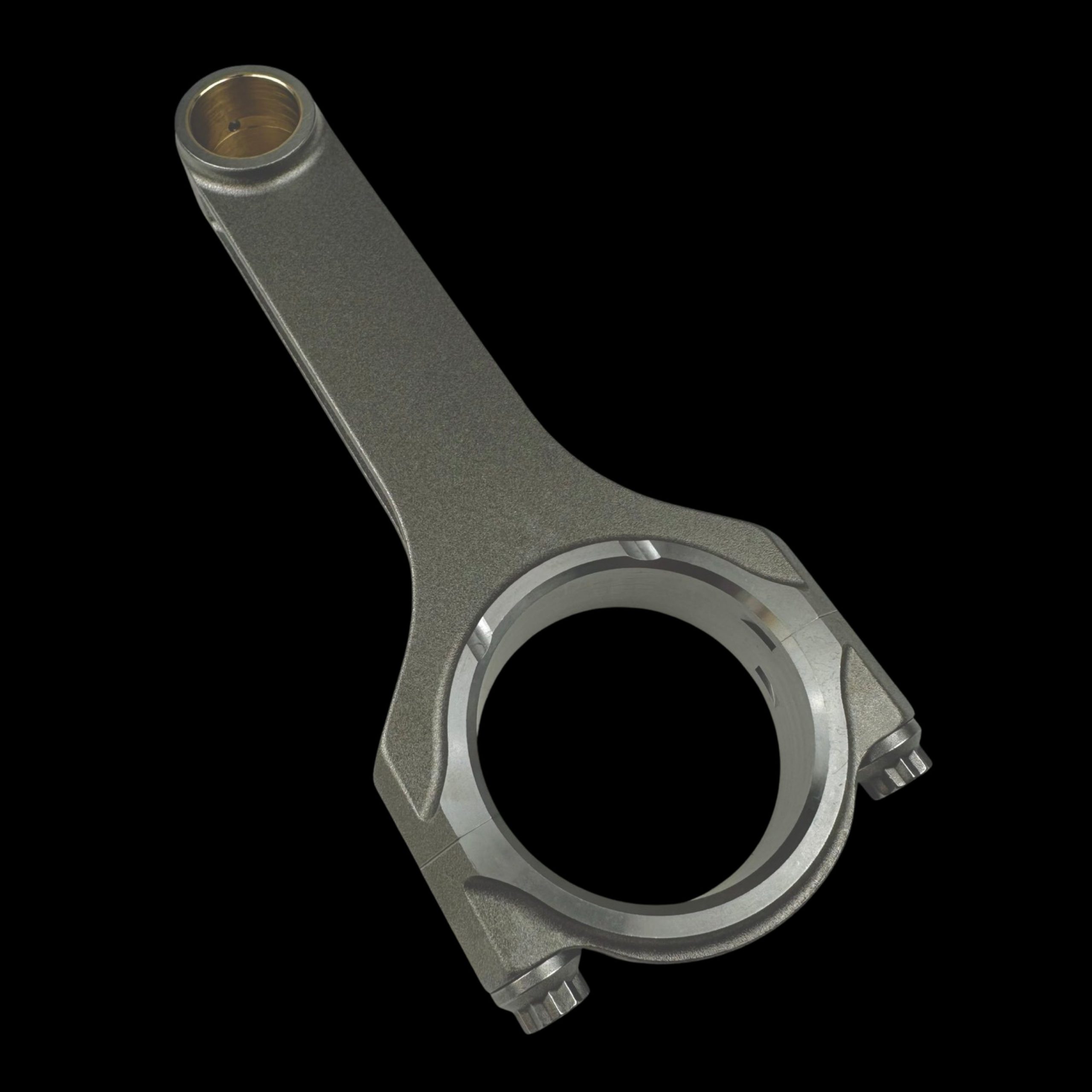

Connecting the massive stroke to the combustion chamber is a task for only the most robust components. The ProH2K 4340 Forged Steel Connecting Rods included in this kit are H-beam designs, renowned for their ideal balance of strength-to-weight ratio and compressive load capability. They are manufactured from 4340 steel, heat-treated, shot-peened, and fitted with Grade 8 ARP 2000 cap screws as standard. The rods are precisely length-matched to pair perfectly with the stroker crank and the custom pistons.

Those pistons are CP Custom “Made-To-Order” Pistons. CP does not supply an off-the-shelf shelf piston for this kit; each set is custom-built to the specifications provided with your order (deck height, bore size, compression height). They are forged from 2618 aluminum alloy, a material chosen for its exceptional ductility and fatigue life under extreme heat and pressure, making it the preferred choice for high-boost or nitrous engines. The pistons feature a advanced CNC-machined profile with valve reliefs cut specifically for the increased stroke and your chosen cylinder heads, a Dual-Float wrist pin design for reduced friction, and CP’s proprietary skirt coating to prevent scuffing during cold starts. The ring lands are machined to accept standard 1.5mm, 1.5mm, 3.0mm ring packs for optimal sealing and longevity.

Performance Benefits & Application Fitment

Installing the BC0459 Stroker Kit fundamentally transforms the character and capability of your LS engine. The benefits are tangible and significant:

• Massive Displacement Increase: Achieve 427+ cubic inches, creating a monumental increase in airflow and combustion volume for exponential gains in torque and horsepower across the entire powerband.
• Extreme Low-End and Mid-Range Torque: The long stroke provides tremendous mechanical leverage, producing tire-shredding torque that is instantly accessible, perfect for street performance, towing, or drag racing.
• Unmatched Rotating Assembly Durability: The synergy between the 4340 forged crank, ProH2K rods, and 2618 forged pistons creates a rotating assembly with a safety factor far exceeding most competitive offerings, built for boosted or nitrous-assisted power levels.
• Pre-Engineered and Balanced: The kit arrives as a balanced assembly, saving significant machine shop time and cost while ensuring harmonic smoothness at high RPM.
• Wet Sump Specific Design: All components are configured for optimal performance and clearance in standard wet-sump oiling systems, making it ideal for factory-frame vehicles and street-driven applications.

Vehicle and Engine Fitment

The BC0459 kit is engineered for LS series engines utilizing a standard wet sump oiling system. It is not compatible with dry-sump configurations (e.g., LS7, LS9) without significant modification. Critical clearance checks, particularly for piston-to-valve and rod-to-cam/block, are always required during assembly.

Primary Block Compatibility: LS1, LS2, LS3, LS6, LQ4, LQ9, and other Gen III/IV truck blocks with a standard 9.240″ deck height. The block must be machined to the final bore size specified when ordering the CP pistons (e.g., 4.00″, 4.03″, 4.065″).

Vehicle Applications: This kit is the cornerstone for building a legendary stroker motor for a wide range of vehicles, including:

• Chevrolet Corvette (C5, C6)

• Chevrolet Camaro (1998-2002, 2010-2015)

• Pontiac GTO (2004-2006)

• Cadillac CTS-V (First & Second Gen)

• GM Trucks/SUVs (Silverado, Tahoe, Escalade with LQ4/LQ9)

• LS-Swapped Vehicles requiring maximum NA or boosted torque.

For a deeper technical dive into the advantages of stroker crankshafts and their impact on engine dynamics, refer to this authoritative resource on stroker crankshaft engineering principles.

Technical Specifications Table
