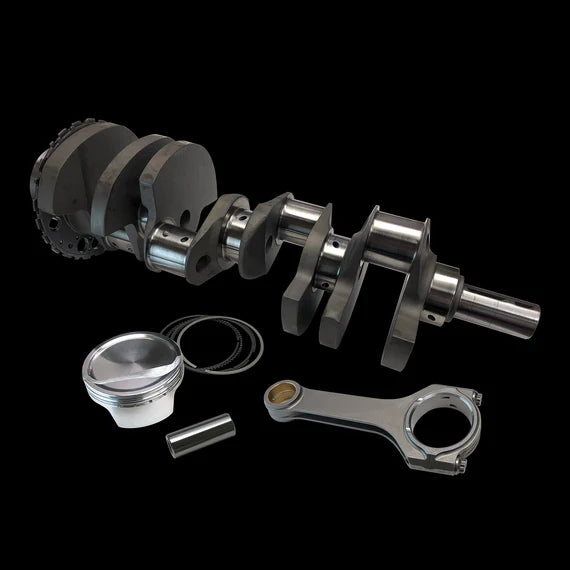

BC0458 – Chevrolet LS Series Wet Sump Stroker Kit – 4.000″ Stroke/ProH2K Rods, CP Custom MTO Pistons

In the realm of high-performance GM LS engine building, displacement is the ultimate currency of power and torque. The BC0458 Chevrolet LS Series Wet Sump Stroker Kit represents the pinnacle of this philosophy, engineered not merely as a collection of parts, but as a fully integrated, blueprint-level system designed to transform a standard displacement LS block into a monstrous, reliably rotating assembly. This kit is the definitive solution for builders seeking maximum cubic inches from a standard-deck LS block while utilizing the factory wet sump oiling system, making it ideal for street-driven monsters, road course warriors, and high-horsepower street/strip applications. Brian Crower’s BC engineering mandates absolute precision, from the deep-cryo-treated 4340 forged steel crankshaft to the legendary CP-Carrillo Custom MTO pistons and ProH2K connecting rods. The BC0458 isn’t just an upgrade; it’s a foundational transformation that sets a new benchmark for durability, power potential, and technical execution in the aftermarket stroker kit market.

Core Component Engineering & Technical Architecture

The integrity of any stroker kit lies in the synergistic engineering of its three core rotating components: the crankshaft, connecting rods, and pistons. The BC0458 kit is architected around a 4.000-inch stroke BC 4340 forged steel crankshaft. Manufactured from premium-grade 4340 chromoly steel, this crank undergoes a rigorous forging process followed by a deep cryogenic treatment. This thermal cycling process stabilizes the molecular structure of the metal, significantly enhancing tensile strength and fatigue resistance, which is critical for handling the immense stresses of high-RPM operation and forced induction. The crankshaft features a factory-style LS1 wet sump snout and a standard 58-tooth reluctor wheel, ensuring direct compatibility with factory front accessories, dampers, and OEM or aftermarket engine management systems without requiring custom sensors or triggers.

ProH2K Connecting Rods & CP Custom MTO Pistons: The Dynamic Duo

Attaching to this robust crankshaft are the formidable ProH2K 4340 forged steel connecting rods, measuring a precise 6.125 inches in center-to-center length. This specific rod length is meticulously chosen to optimize piston motion dynamics, side-loading, and rod angularity for the extended 4.000-inch stroke, promoting longevity and reducing parasitic friction. Each rod is assembled with premium ARP 2000-series fasteners, the industry gold standard for clamp load consistency and tensile strength. The interface between rod and piston is a masterpiece: CP-Carrillo Custom “Made-To-Order” Pistons. These are not off-the-shelf slugs; they are CNC-machined from 2618-T6 aluminum forgings to exacting specifications that complement the kit’s compression height and deck clearance requirements. They feature a robust .210-inch wall top ring land, advanced skirt coatings for break-in and friction reduction, and are custom-configured for your chosen bore size, ring package, and compression ratio, ensuring a perfect, zero-compromise fit within your engine block.

Performance Benefits & Application Advantages

Choosing the BC0458 Stroker Kit delivers a comprehensive suite of mechanical and performance advantages that transcend simple displacement increase.

• Maximized Displacement: Achieves approximately 402-427 cubic inches (6.6L-7.0L) depending on final bore size, providing a massive foundation for unparalleled low-end torque and high-RPM horsepower.
• Uncompromised Durability: The 4340 forged crankshaft, ProH2K rods, and 2618 alloy CP pistons form an assembly rated for well beyond 1,500 horsepower, offering immense safety margins for nitrous, supercharger, or turbocharger applications.
• Wet Sump Compatibility: Engineered specifically for factory-style wet sump oiling systems, eliminating the cost and complexity of a dry sump system for many high-performance street and track applications.
• Plug-and-Play Electronics Compatibility: The standard 58-tooth reluctor and LS1 snout ensure seamless integration with OEM ECUs, aftermarket standalones like Holley Dominator or Haltech, and all standard LS front accessory drives.
• Optimized Rotating Assembly Geometry: The precise combination of 4.000″ stroke and 6.125″ rod length minimizes piston skirt thrust loading and improves ring seal stability, contributing to longevity and optimal oil control.

Vehicle Fitment & Installation Prerequisites

The BC0458 kit is designed for use in standard-deck height (9.240″) GM LS-series engine blocks, including but not limited to LS1, LS6, LS2, LS3, L92, and aftermarket blocks from companies like Dart and GM Performance Parts. It is not compatible with the taller “LSX” 6-bolt deck blocks or Gen IV/V blocks with a variable reluctor wheel without appropriate modifications. Proper installation is paramount:

Critical Installation Notes: This is a blueprint-assembly kit. Final machine work is required, including precision balancing of the entire rotating assembly (crank, rods, pistons, pins, rings, and damper/flywheel), honing the block to the specific piston skirt diameter and ring package supplied, and verifying all critical clearances (main/rod bearing, piston-to-wall, deck height, and valve-to-piston). The builder must specify the final bore size, desired compression ratio, and ring package when ordering the custom CP pistons. For a deep dive on the intricacies of stroker engine assembly and clearance checking, refer to this authoritative resource on LS stroker engine clearances and assembly best practices.

Technical Specifications & Kit Contents

The following table details the complete technical specifications and components included in the BC0458 Stroker Kit. All dimensions are nominal, and final measurements must be verified during the blueprinting process.
