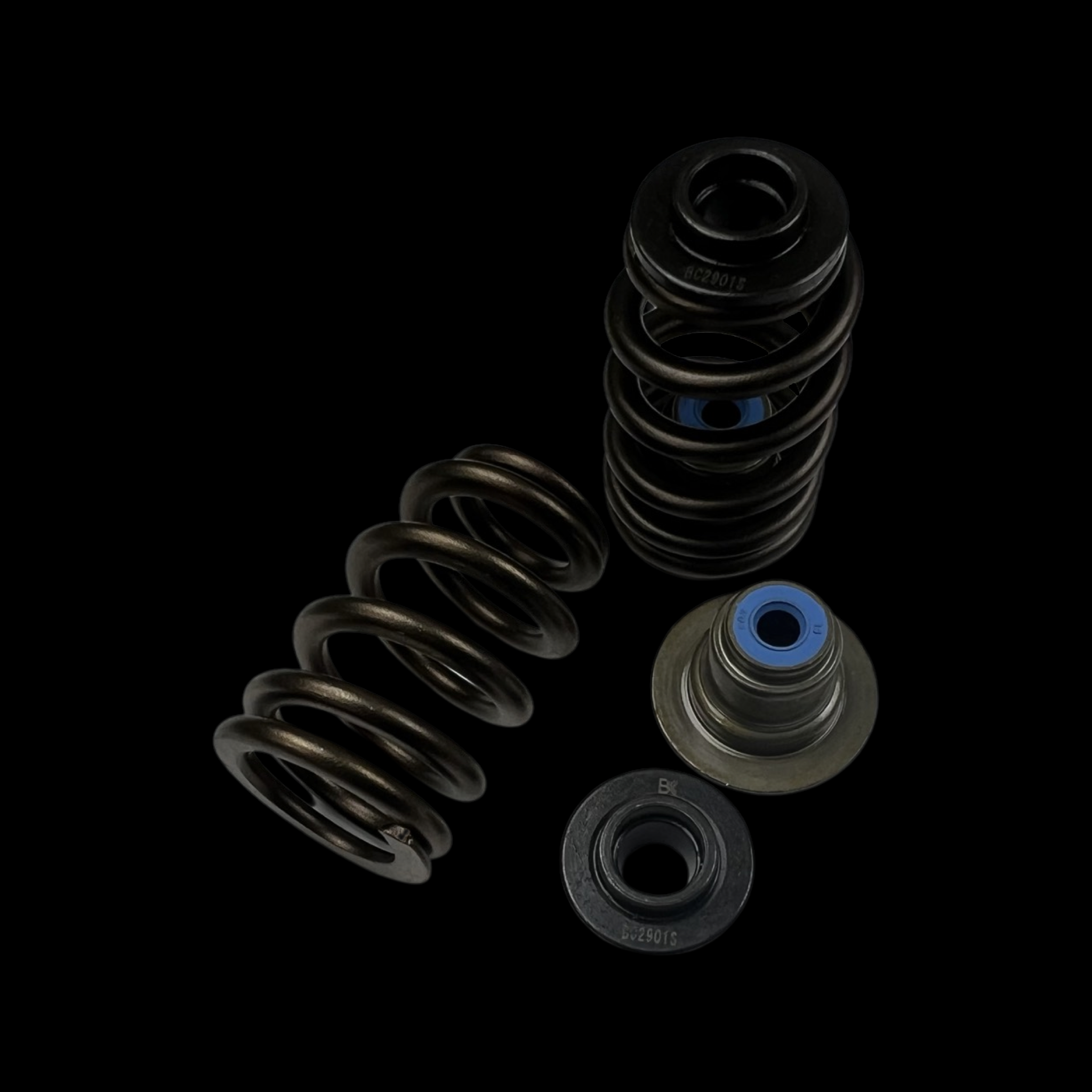

BC0900X – Polaris XP Turbo (16-up) / XP 1000 (14-up) Beehive Spring/Titanium Retainer/Seal Kit w/o Seats

For the Polaris RZR XP Turbo and XP 1000 enthusiast who has pushed their machine to the edge of its factory capabilities, the valve train often becomes the first critical failure point. Standard valve springs, designed for conservative RPM limits and stock boost levels, can succumb to valve float, leading to catastrophic engine failure—a costly and time-consuming setback. The Brian Crower BC0900X Beehive Spring, Titanium Retainer, and Seal Kit is not merely an upgrade; it is a fundamental re-engineering of the valvetrain’s core dynamics. Engineered for the punishing demands of high-RPM operation, forced induction, and aggressive cam profiles, this kit transforms the engine’s breathing integrity from a liability into a pillar of strength. By addressing the harmonic limitations of conventional springs and reducing reciprocating mass with aerospace-grade materials, the BC0900X delivers the precise, reliable valve control necessary to unlock and safely contain significant horsepower gains.

Engineering Superiority: The Beehive Spring & Titanium Advantage

At the heart of the BC0900X kit is its proprietary beehive valve spring design, a technology proven in the world’s most demanding racing series. Unlike a conventional cylindrical spring with uniform coil diameter, the beehive design features a progressively tapered shape. This geometry fundamentally alters the spring’s harmonic characteristics, effectively eliminating the surge and resonance that cause standard springs to lose control at high RPM. The result is a wider, safer operational RPM range, allowing your Polaris engine to rev more freely and recover more quickly without the threat of valve float. Paired with these springs are precision-machined titanium retainers. Titanium offers a exceptional strength-to-weight ratio, drastically reducing the mass in the valve train’s reciprocating assembly. This reduction in inertial mass decreases the load on the spring, the camshaft lobes, and the entire valve actuation system, contributing to higher potential RPM, improved valve acceleration rates, and reduced wear on companion parts. This combination is the gold standard for achieving valvetrain stability under extreme conditions.

Core Performance Benefits of the BC0900X Kit

• Eliminates Valve Float: Beehive spring technology controls valve motion at RPM levels far beyond stock capability, preventing loss of power and engine-destroying piston-to-valve contact.
• Enables Higher RPM and Boost: Provides the valve control foundation necessary for aggressive camshaft upgrades and increased turbocharger boost pressure without valvetrain instability.
• Reduces Reciprocating Mass: Titanium retainers significantly lighten the valve assembly, decreasing inertial stress and allowing for more aggressive valve timing and quicker engine response.
• Enhanced Durability: Manufactured from the highest quality materials and heat-treated for maximum fatigue resistance, the components are built for long-term reliability in harsh environments.
• Direct OEM Replacement Fitment: Designed as a complete drop-in solution for specified Polaris models, requiring no machining or modification for installation.
• Improved High-Temperature Performance: The included high-quality valve seals and spring design maintain consistent seat pressure even under elevated engine bay temperatures common in turbocharged UTVs.

Technical Specifications & Component Breakdown

Every component in the BC0900X kit is specified to work in concert, creating a system greater than the sum of its parts. The beehive springs are crafted from chrome silicon alloy wire, a material chosen for its superior endurance limit and resistance to heat relaxation compared to standard spring steels. They are shot-peened for increased surface strength and preset to ensure consistent installed height and seat pressure. The titanium retainers (6Al-4V alloy) are CNC-machined to exacting tolerances for a perfect fit on the valve stems and spring perches. The kit includes high-performance viton valve stem seals, which offer excellent resistance to heat and oil degradation, crucial for turbocharged applications where under-hood temperatures are extreme. It is critical to note that this kit is supplied without valve seats, as those are a press-fit component machined into the cylinder head itself.

Vehicle Fitment: Precision Application

The BC0900X kit is engineered for specific ProStar 1000 engine variants known for their performance potential. Correct application is paramount for fit and function.

Primary Fitment: Polaris RZR XP Turbo (2016 and newer). Secondary Fitment: Polaris RZR XP 1000 (2014 and newer). It is always the technician’s responsibility to verify engine model and year before installation. This kit is designed for the stock valve diameter and installed height of these engines. If the cylinder head has been machined or if aftermarket valves with different tip heights are being used, verifying installed height and spring pressure is mandatory. For a deeper technical understanding of valvetrain dynamics and spring selection, refer to this authoritative resource on valve spring technology from Engine Builder Magazine.

Installation Notes & Performance Synergy

Installation of the BC0900X kit requires standard engine disassembly to access the cylinder head(s). While it is a direct replacement, the procedure demands mechanical competence. The cylinder head must be removed, and valves extracted using a proper spring compressor tool. Care must be taken to keep all components organized. Before assembly, the cylinder head, valves, and new components should be thoroughly cleaned. A light coating of assembly lubricant on the valve stems and retainers is recommended. Critical checks include verifying that each valve moves freely in its guide after installation and ensuring the keepers (not included, reuse OEM if in good condition) are fully and properly seated. This kit is the essential supporting modification for any build involving performance camshafts, turbo upgrades, or a simple RPM limit increase. It works in synergy with these parts to ensure the valvetrain is not the weak link, allowing you to extract maximum, reliable power from your Polaris ProStar engine.
