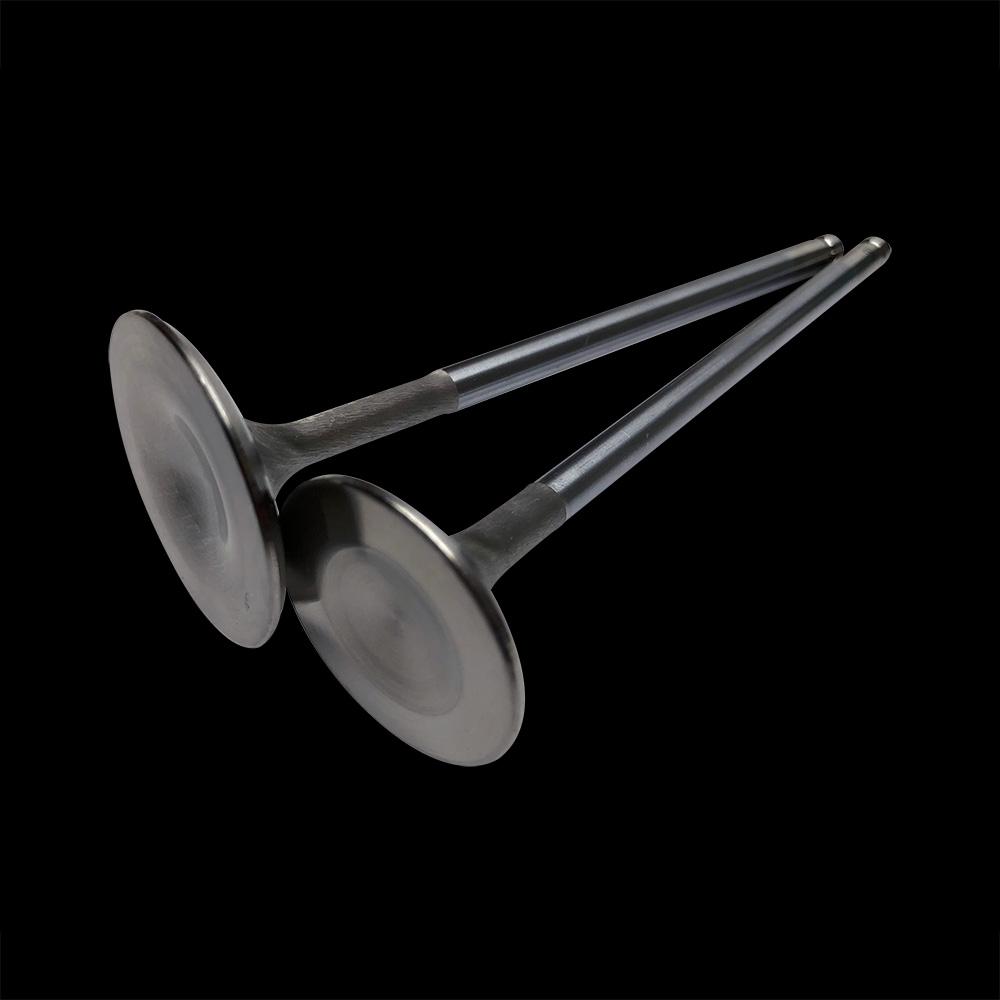

BC3034 – Honda H22/H22A Intake Valves (36mm / +1mm) – set/8

Engineering Dominance: Introducing the Brian Crower BC3034 +1mm Intake Valve Set for Honda H22

For the builder who views the Honda H22 and H22A engine not as a mere powerplant but as a canvas for forced induction or all-motor dominance, the factory valvetrain represents a fundamental bottleneck. The stock 35mm intake valves, while robust for OEM applications, become a severe restriction when airflow demands escalate beyond 300 horsepower. The Brian Crower BC3034 intake valve set is the definitive engineering solution, transforming this limitation into your engine’s greatest asset. This is not an incremental upgrade; it is a recalibration of your engine’s breathing architecture. Each valve in this meticulously crafted set of eight is oversized to a true 36mm diameter—a full +1mm over stock—delivering a quantifiable 8.3% increase in curtain area for the critical intake cycle. Crafted from proprietary EV1+ alloy and finished with a patented physical vapor deposition (PVD) coating, the BC3034 valves are engineered to withstand the brutal thermal and mechanical stresses of sustained high-RPM operation and aggressive boost profiles, making them the mandatory foundation for any serious H22 build targeting reliable, repeatable power.

Valvetrain Physics and the +1mm Advantage

The Aerodynamic Imperative for High-Output H22 Engines

The primary constraint for any internal combustion engine is volumetric efficiency—the ability to completely fill the cylinder with a fresh air/fuel charge. In the H22’s pent-roof combustion chamber, the intake valve is the gatekeeper. The stock valve’s perimeter, or “curtain area,” dictates maximum potential flow. The simple yet profound act of increasing the valve diameter by 1mm to 36mm expands this critical area. This modification allows a greater mass of air to enter the cylinder at the same valve lift and duration, effectively lowering the engine’s pumping losses and raising its volumetric efficiency ceiling. For forced induction applications, this means the turbocharger or supercharger operates more efficiently, producing equal or greater power at lower boost pressure, reducing heat and strain on the entire system. In all-motor configurations, it directly translates to broader torque curves and significant gains in peak horsepower, especially when paired with matched porting and camshaft profiles.

Dynamic Stability at Extreme RPM

Oversizing a valve without meticulous attention to mass and metallurgy is a recipe for valvetrain instability and failure. Brian Crower’s engineering addresses this through advanced weight optimization. The BC3034 valves achieve their increased size while maintaining a near-stock mass profile through precise machining of the valve stem and underhead profile. This is critical for preserving valvetrain control, allowing the use of aggressive camshafts without the need for excessively high spring pressures that accelerate wear. The reduced mass inertia minimizes valve float, enabling safe, reliable operation beyond 8,500 RPM—a threshold where many OEM-based components would catastrophically fail.

Material Science and Durability Engineering

EV1+ Alloy: The Core of Reliability

Brian Crower’s proprietary EV1+ alloy is the backbone of the BC3034’s performance. This aerospace-grade material is specifically formulated for high-stress valvetrain applications, offering a superior blend of tensile strength, thermal conductivity, and fatigue resistance compared to standard EV1 or EV8 materials. The enhanced thermal conductivity is a key performance differentiator, allowing heat to transfer more rapidly from the valve head—the hottest point in the combustion chamber—into the valve seat and cylinder head. This directly reduces the risk of pre-ignition and detonation, the primary killers of high-compression and forced induction engines. The exceptional fatigue resistance ensures the valve can survive millions of cycles under high spring load without succumbing to material crystallization or stem galling.

PVD Coating: A Surface Treatment Revolution

The final layer of defense and performance is a state-of-the-art Physical Vapor Deposition (PVD) coating applied to the valve stem. This is not a simple phosphate or chrome plating; it is a micron-thin, atomically-bonded ceramic-metallic layer that provides an extreme-hardness, low-friction surface. The benefits are multifold: friction between the stem and valve guide is drastically reduced, lowering parasitic loss and wear. The coating’s hardness dramatically increases resistance to stem scoring and guide wear, a common failure point in high-RPM engines. Furthermore, it enhances corrosion resistance, ensuring long-term integrity even in engines running methanol or aggressive fuel additives. For a deep dive into optimizing valve and seat interfaces, which is critical when installing oversized valves, refer to this authoritative resource on valve seat angles and valve jobs from Engine Builder Magazine.

BC3034 Direct Performance Benefits

• Quantifiable Airflow Increase: The 36mm (+1mm) diameter provides an immediate 8.3% gain in intake curtain area, directly translating to higher volumetric efficiency and power potential across the entire RPM band.
• Extended RPM Capability: Optimized weight and superior material strength allow for stable, reliable valvetrain operation at RPM levels exceeding 8,500, unlocking power from aggressive cam profiles.
• Enhanced Thermal Management: The high thermal conductivity of EV1+ alloy and the heat-reflective properties of the PVD coating lower valve head temperatures, reducing the risk of detonation and pre-ignition in tuned applications.
• Unmatched Wear Resistance: The combination of the hardened EV1+ alloy and the diamond-like PVD stem coating results in extraordinary resistance to stem, guide, and tip wear, ensuring longevity in competitive environments.
• Foundation for Forced Induction: By reducing intake restriction, these valves allow forced induction systems to produce target horsepower at lower boost levels, decreasing thermal load and improving overall engine reliability and response.

Vehicle Fitment and Installation Critical Notes

Primary Application: The BC3034 valve set is engineered specifically for the Honda H22A1, H22A4, H22A7 (Euro R), and H22A8 (Type S) cylinder heads. It is also directly compatible with JDM H22A engines from the Prelude SiR, BB6/BB8 chassis, and the JDM Accord SiR-T.

Mandatory Machining Work: Installation of +1mm oversized valves is not a direct drop-in procedure. It requires precise, professional machine shop work. The cylinder head must undergo a three-angle or superior five-angle valve seat cutting procedure to match the new 36mm valve diameter and the valve’s 45-degree seat angle. Additionally, valve guide clearance must be checked and honed if necessary to achieve the precise stem-to-guide clearance specified in the service manual, accounting for the PVD coating. Failure to perform these steps will result in poor sealing, reduced flow, and potential valve train failure.

Required Companion Components: To fully realize the potential and ensure reliability of the BC3034 valves, pairing them with Brian Crower’s matched BC0245 valve springs and BC0240 titanium retainers is strongly recommended. The stock valve springs and retainers are not designed for the increased mass (however minimal) and high-RPM operation these valves enable. Upgraded valve seals are also advised during assembly.

Technical Specifications: Brian Crower BC3034
