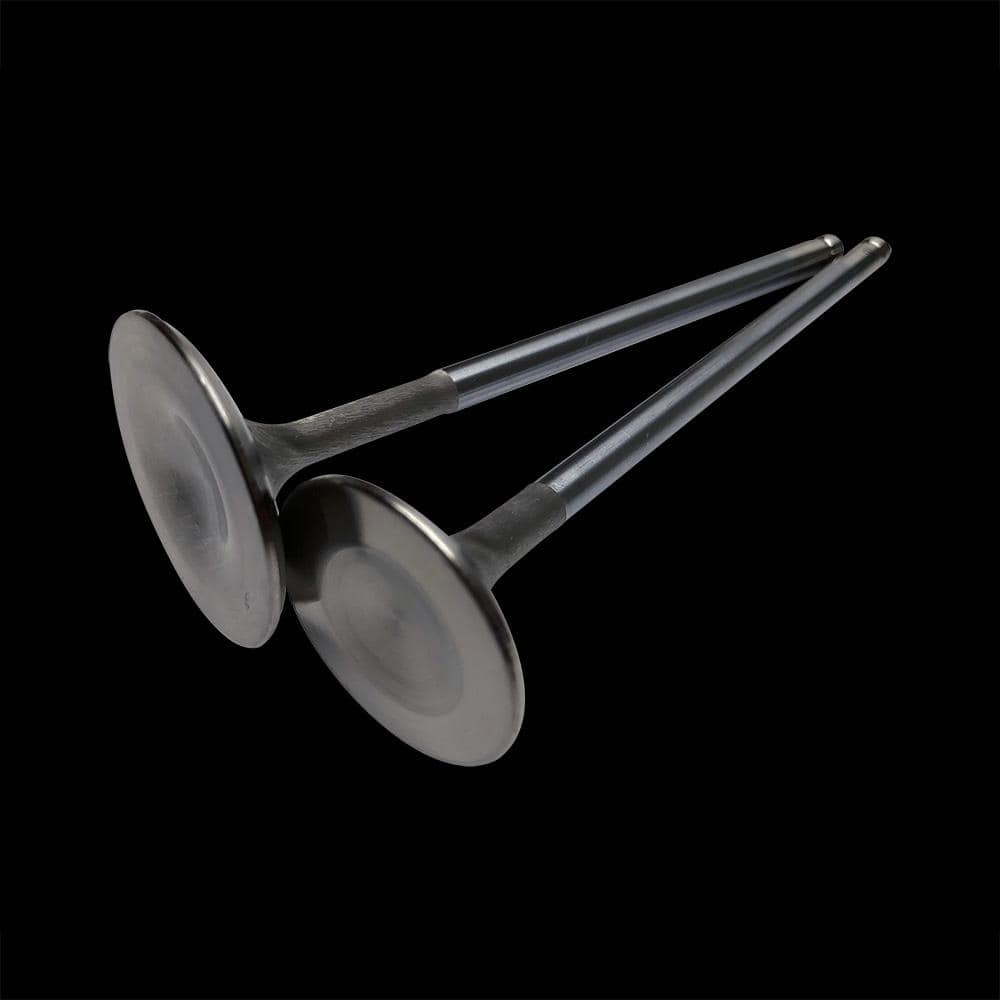

BC3204 – Nissan SR20DE(T) Intake Valves (35.15mm / +1mm – 6mm stem) – set/8

In the pursuit of reliable horsepower, especially within the highly tunable Nissan SR20 platform, the valve train represents a critical juncture between airflow potential and mechanical integrity. Standard components, while adequate for OEM output, become the weak link when boost pressure and rpm rise. The BC3204 Nissan SR20DE(T) Intake Valves from Brian Crower are not mere replacements; they are a precision-engineered upgrade designed to resolve the breathing bottlenecks and material limitations of the factory SR20 intake valves. Engineered for the discerning builder, this set of eight 35.15mm (+1mm oversize) valves with a 6mm stem is a foundational component for any performance or endurance build targeting elevated power levels without compromising valvetrain stability.

Engineering Authority: The BC3204 Valve Set Deconstructed

Brian Crower’s BC3204 valves are the product of targeted engineering, addressing the specific failure modes and flow restrictions of the SR20DET and SR20DE engines. The transition from a factory 34mm intake valve to a 35.15mm diameter is a calculated 3.4% increase in valve area. This is not a random oversize; it is the optimal balance between gaining crucial flow capacity—particularly around the valve seat and curtain area—and maintaining safe piston-to-valve clearance in modified engines without requiring radical chamber machining. The companion 6mm stem diameter, compared to various factory stem sizes, is selected for reduced mass and superior resistance to deflection under high spring pressures, a common issue in high-lift, high-rpm applications.

Precision Benefits & Performance Gains

• Optimized Oversize for Max Flow: The 35.15mm head diameter provides a significant increase in intake port flow, particularly at mid to high lift, directly translating to improved volumetric efficiency and power, especially under boost.
• 6mm Hollow Stem Design: Features a hollow, sodium-filled stem on select exhaust applications (while intakes are solid) to manage extreme heat, though the primary focus here is the 6mm stem’s rigidity for perfect alignment and reduced mass for higher RPM capability.
• Premium EV8+ Stainless Steel: Manufactured from Brian Crower’s proprietary EV8+ stainless, a material offering superior tensile strength and heat resistance compared to OEM or standard aftermarket stainless, resisting stretching and guttering under detonation.
• CNC-Machined Consistency: Every valve is CNC-machined to exacting tolerances, ensuring perfect weight matching within the set for balanced valvetrain operation and smooth, harmonic-free revving.
• Undercut Stem & Radiused Lock Groove: The stem is undercut below the keeper grooves to minimize weight, and the grooves themselves are radiused to eliminate stress risers that can lead to stem failure—a critical detail for endurance.
• Designed for Performance Springs: These valves are engineered to work in concert with upgraded valve springs and retainers, forming a cohesive, reliable high-RPM valvetrain system.

Vehicle Fitment & Application Notes

The BC3204 valve set is engineered as a direct-fit performance upgrade for a range of Nissan engines utilizing the SR20 cylinder head. Correct installation by a qualified machinist is paramount, as the oversize dimension requires a corresponding valve seat cutting and guide preparation.

Primary Fitment: Nissan SR20DET (Turbo) and SR20DE (Naturally Aspirated) engines found in vehicles such as the Nissan Silvia (S13, S14, S15), 180SX, 200SX, and Pulsar GTI-R. Always verify specific engine code and head casting.

Installation Requirements: Installation of these +1mm oversize valves mandates a professional three-angle valve job on newly cut or recut seats to match the valve face angle perfectly. Valve guides must be checked for wear and replaced or knurled as necessary. Clearance checks between the valve head and piston crown (at maximum lift, including cam timing advance) are non-negotiable, especially in engines with modified pistons or increased compression. For a deep dive on the science of engine breathing and valve geometry, refer to this authoritative resource on engine airflow dynamics.

Technical Deep Dive: Material Science & Design Philosophy

The choice of EV8+ Stainless Steel is what separates a performance component from a race-ready one. This alloy is heat-treated to a specific Rockwell hardness, providing an exceptional balance between wear resistance at the stem and tip and malleability at the margin to resist cracking. The 35.15mm head utilizes a precise back-cut angle on the underside—often 15-30 degrees—to improve flow transition from the port to the valve seat, a feature absent on stock valves. The 6mm stem is not simply thinner; it is manufactured with a tighter diameter tolerance and superior surface finish to reduce friction in the guide, lower parasitic loss, and improve oil control. This holistic design approach ensures that when paired with appropriate Brian Crower springs and titanium retainers, the valvetrain achieves a higher natural frequency, pushing the power band higher while maintaining control.

Technical Specifications Table

For the builder who understands that power is a function of airflow and reliability is a function of precision, the BC3204 intake valves are a definitive solution. They transform the SR20 cylinder head from a stock component into a meticulously calibrated air pump, capable of supporting significant horsepower increases with absolute valvetrain confidence. This is not an off-the-shelf part; it is a core investment in the mechanical foundation of a serious performance engine.
