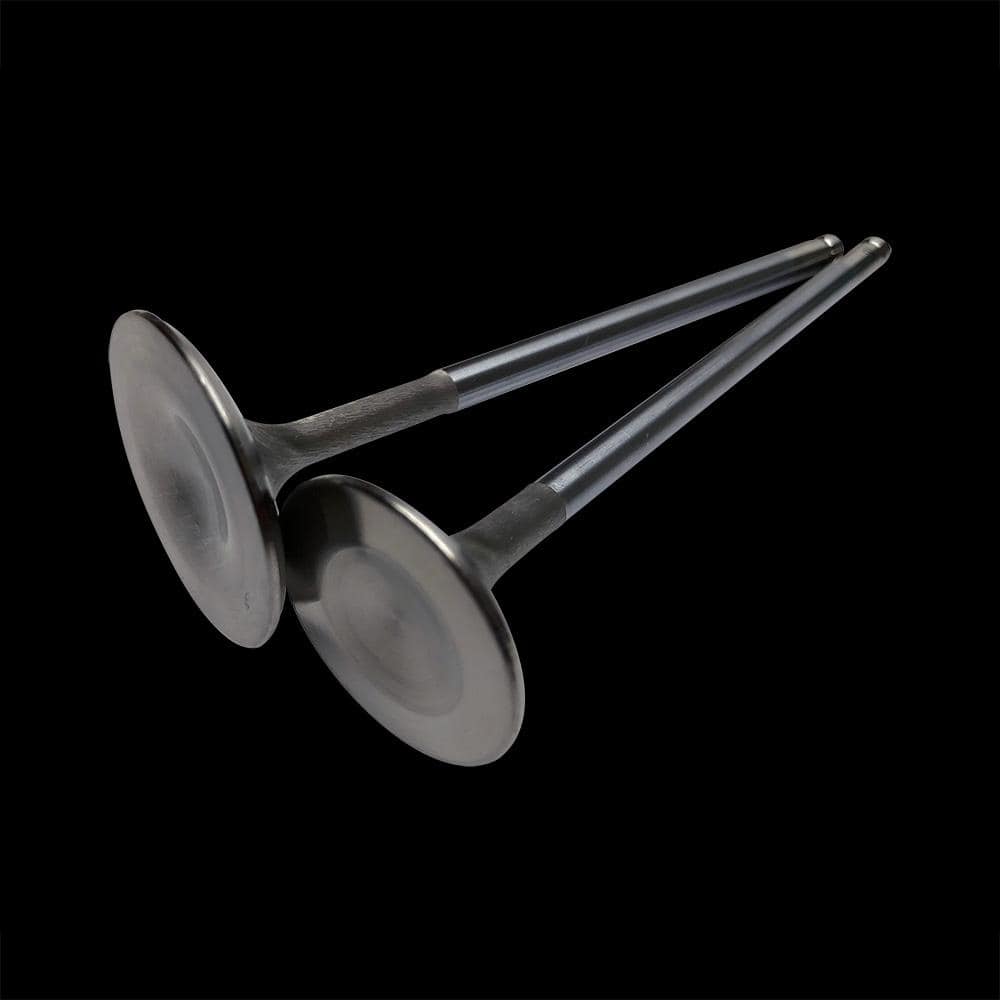

BC3213 – Nissan KA24DE Exhaust Valves (31.30mm / STD) – set/8

In the pursuit of maximizing volumetric efficiency and unlocking the true performance potential of the Nissan KA24DE engine, the valvetrain serves as a critical gateway. Here, exhaust valve integrity and specification are paramount, dictating flow characteristics, heat dissipation, and ultimately, power output and reliability. The Brian Crower BC3213 Exhaust Valve Set represents a calculated upgrade from OEM components, engineered not merely as a replacement but as a precision enhancement for both high-RPM builds and endurance-focused applications. This set of eight 31.30mm Standard (STD) diameter valves is manufactured to exacting tolerances, utilizing advanced materials and processes to withstand the extreme thermal and mechanical stresses inherent in performance tuning. For the builder who understands that reliable power is built from the valvetrain out, specifying the correct exhaust valve is a fundamental decision.

Engineering & Material Science: The Foundation of Reliability

OEM exhaust valves, while adequate for stock applications, often become the weak link under increased boost, higher compression, or sustained high-RPM use. The BC3213 valves address these limitations through a multi-faceted engineering approach. The primary material is a high-grade chromium-molybdenum steel alloy (21-4N), a specification renowned in racing for its exceptional heat resistance, tensile strength, and corrosion stability. This alloy maintains its structural integrity and hardness at temperatures that would cause standard valves to soften or warp, a common failure point in turbocharged or nitrous-injected KA24DE engines.

Beyond material selection, the manufacturing process is crucial. Each BC3213 valve is crafted using a proprietary CNC machining and precision grinding process. This ensures not only the critical 31.30mm head diameter but also perfect stem diameter consistency and an ultra-smooth finish. The stem finish minimizes friction against valve guides, reducing wear and oil consumption, while the meticulous shaping of the valve head and underhead radius is optimized for exhaust gas scavenging. The precise back-cut angles facilitate smoother airflow from the combustion chamber into the exhaust port, reducing reversion and improving the efficiency of the exhaust stroke. This level of detail, as explored in resources like this technical article on valvetrain dynamics at EngineLabs, is what separates a component from a performance solution.

Performance Benefits & Direct Advantages

• Enhanced Thermal Fatigue Resistance: The 21-4N alloy provides superior resistance to valve stretch, head cupping, and margin erosion under extreme heat, directly translating to long-term durability in performance environments.
• Optimized Exhaust Flow: Precision machining of the head and back-cut profiles reduces turbulence in the exhaust port, improving scavenging efficiency and supporting broader power curves, especially in forced induction setups.
• Increased Structural Integrity: Higher tensile strength reduces the risk of valve failure—a catastrophic event—providing a critical safety margin for high-horsepower and high-RPM KA24DE builds.
• Reduced Friction & Wear: The micro-finished stem promotes proper lubrication, decreases guide wear, and contributes to stable valve motion and consistent sealing over the engine’s lifespan.
• Perfect OEM Fitment & Drop-in Design: As a Standard 31.30mm diameter set, these valves install directly into factory or aftermarket cylinder heads machined to OEM specifications, requiring no special machining for diameter, ensuring a perfect seal with standard or upgraded valve seats.

Vehicle Fitment & Application Specifics

The BC3213 valve set is engineered specifically for the Nissan KA24DE dual overhead cam (DOHC) 2.4L inline-4 engine. This engine is renowned in the tuning community for its robust bottom end and tuning potential, found in several iconic Nissan platforms. Proper fitment is critical, and these valves are designed as a direct replacement and upgrade for the following applications:

Primary Applications: Nissan 240SX (S13, S14) 1991-1998; Nissan Pickup / D21 Hardbody 1990-1997 (with KA24DE); Nissan Frontier D22 1998-2004 (with KA24DE). It is the builder’s responsibility to verify engine code and cylinder head configuration before purchase. While the valve diameter is standard, always check valve stem height and confirm proper installed height with appropriate springs, retainers, and locks. These valves are compatible with OEM and aftermarket valve guides, but inspection and measurement of guide wear during installation is highly recommended.

Technical Specifications & Inspection Data

Installation Considerations & Final Build Notes

Installing the BC3213 valves is a straightforward process for a machinist or experienced builder, but attention to detail is non-negotiable. These valves are designed as a drop-in replacement for the standard diameter; however, “drop-in” never implies skipping critical steps.

Pre-Installation Protocol

Every cylinder head should undergo a full inspection and machining process before installing new valves. This includes checking and machining the valve seats to ensure a perfect 45-degree (or specified) seat angle and proper width. The valve guides must be measured for wear and replaced if out of specification—a new, high-quality valve in a worn guide is a compromised assembly. Always perform a three-angle valve job to match the valve’s back-cut profile, maximizing flow and ensuring a concentric seal. Finally, check and set the installed height for each valve using the appropriate springs, retainers, and locks to achieve the correct spring pressure and valve train geometry.

Synergy with Supporting Components

To fully realize the performance and reliability benefits of the BC3213 exhaust valves, pairing them with complementary valvetrain components is advised. For high-RPM or high-lift camshaft applications, upgrading to Brian Crower’s matched valve springs and titanium retainers is essential to control valve float. Similarly, for forced induction or nitrous builds, considering a full set of inconel exhaust valves (for even higher heat tolerance) or their matched intake valves may be the logical next step. The BC3213 set provides the foundation for a robust, high-flow exhaust valvetrain, ready to support the demands of a tuned KA24DE, from a refreshed daily driver to a dedicated track weapon.
