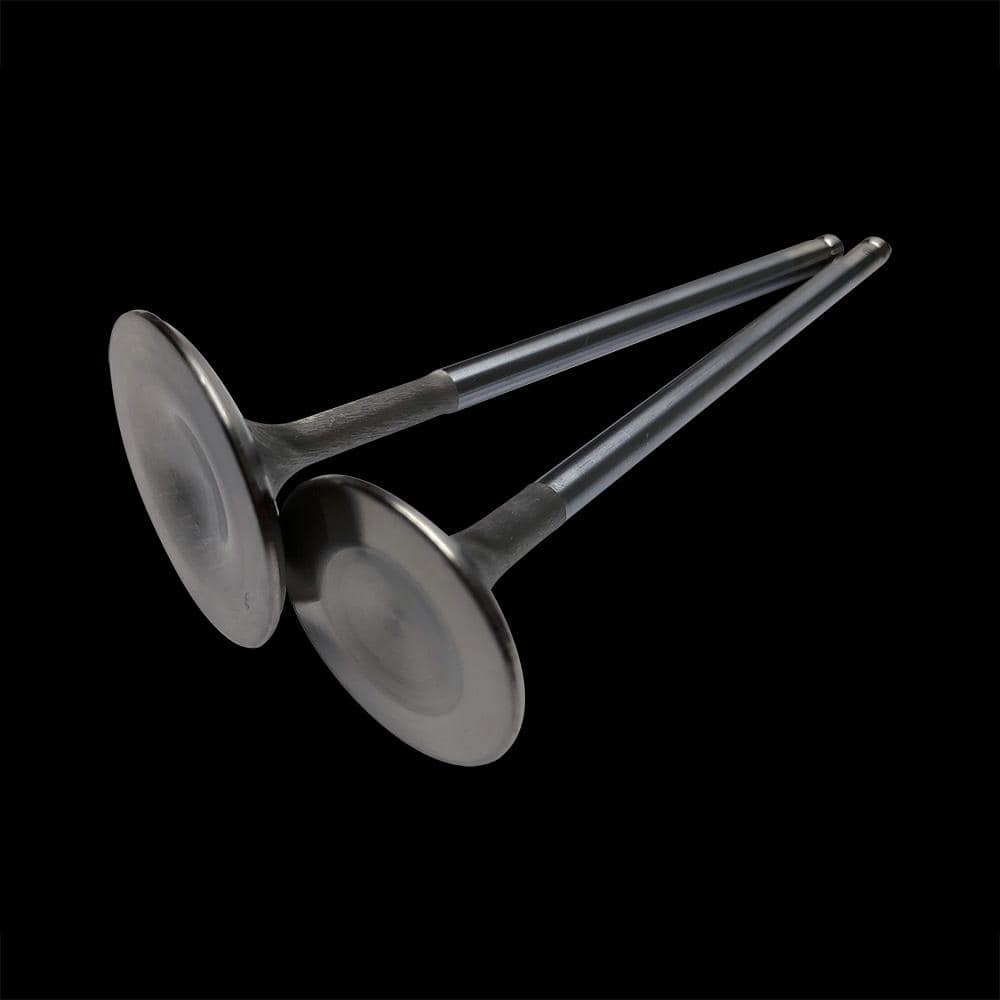

BC3207 – Brian Crower Performance Exhaust Valves for Nissan SR20DE(T)

For the engineer, builder, or dedicated enthusiast seeking to extract maximum efficiency and reliability from the legendary Nissan SR20 engine, valve selection is a critical path decision. Standard components, while adequate for OEM output, become the weak link in a performance equation focused on higher boost pressure, increased RPM, and sustained thermal load. The BC3207 Exhaust Valve Set from Brian Crower represents a definitive engineering solution. This set of eight precision-machined valves is not merely a replacement part; it is a system upgrade designed to directly address the thermodynamic and mechanical limitations of the factory SR20DE and SR20DET exhaust valves. Engineered with a specific 30.15mm head diameter and a durable 7mm stem, these valves are the product of advanced metallurgy and aerodynamic design, crafted to improve flow, reject heat, and maintain structural integrity under the extreme conditions inherent to modified forced-induction and high-RPM applications. When building for power, longevity, and consistency, the foundation begins with components that can withstand the punishment—this is where the BC3207 set excels.

Engineering Philosophy & Material Science

Brian Crower’s approach to valvetrain components is rooted in a balance between ultimate strength and practical durability. The BC3207 valves are forged from a proprietary EV8+ Stainless Steel alloy. This material is selected for its superior combination of high-temperature yield strength, exceptional corrosion resistance, and favorable thermal properties compared to standard automotive stainless or hollow-sodium filled designs. The EV8+ formulation allows these valves to operate continuously in the harsh environment of the exhaust port, where temperatures can routinely exceed 1400°F, without succumbing to creep, pitting, or tulip deformation. This material choice is a fundamental departure from cost-cutting OEM equivalents and is essential for preventing valve failure in tuned applications. For a deeper dive into the metallurgical considerations for high-stress valvetrains, resources such as Engine Labs’ analysis on valve materials provide excellent context.

Forged Construction & Precision Machining

Each valve begins as a forged blank, a process that aligns the metal’s grain structure for inherent strength and fatigue resistance. From there, CNC machining ensures tolerances are held to within ten-thousandths of an inch. The critical lock groove geometry, stem diameter, and tip are machined to exacting specifications, guaranteeing perfect compatibility with standard or performance retainers, locks, and guides. This level of precision eliminates valvetrain instability, a common source of lost power and premature component wear.

Performance-Enhancing Design Features

Beyond the base material, the BC3207 valves incorporate specific design features engineered to improve the engine’s volumetric efficiency and mechanical stability.

• Undercut Stem Design: Perhaps the most significant aerodynamic improvement, the stem is machined to a reduced diameter just below the head. This “undercut” minimizes shrouding and disrupts airflow less than a straight stem, reducing turbulence in the critical port-to-bowl transition area. This results in measurably improved exhaust gas scavenging, which directly translates to increased power and reduced pumping losses.
• 30.15mm Head Diameter: This specific dimension is engineered to maximize flow area within the constraints of the SR20 cylinder head, often improving upon OEM exhaust flow coefficients without requiring extensive and costly port work. The larger head helps evacuate spent combustion gases more efficiently, especially beneficial in turbocharged applications where reducing backpressure is key.
• Hardened Tip & Precision Lock Grooves: The valve tip is surface-hardened to resist wear from repeated impact with the rocker arm or follower. The CNC-cut lock grooves are sharp and consistent, ensuring a positive mechanical lock with the retainers to prevent valve drop, the most catastrophic of valvetrain failures.
• Mirror-Finished Stem: The stem surface is finely polished to minimize friction within the valve guide, reducing wear on both components and ensuring smooth, consistent operation even at extreme RPM.

Application & Vehicle Fitment

The BC3207 valve set is engineered as a direct-fit, high-performance replacement for the factory exhaust valves in a range of iconic Nissan vehicles powered by the SR20DE and SR20DET engines. Correct fitment is paramount, and these valves are designed to interface with OEM or quality aftermarket springs, retainers, locks, and guides (using appropriate stem seals).

Primary Vehicle Fitment Includes:

• Nissan Silvia S13, S14, S15 (with SR20DET)
• Nissan 180SX / 240SX (JDM & markets with SR20DET)
• Nissan 200SX (SR20DET models)
• Nissan Pulsar GTI-R (SR20DET)
• Nissan Bluebird (U12, with SR20DE/T)
• Infiniti G20 (with SR20DE)

Note: This set is for exhaust valves only (8 required for a 4-cylinder engine). Always verify engine code and current valvetrain specifications before purchase. Installation by a qualified technician familiar with performance valvetrain setup and proper valve-to-piston clearance checking is mandatory.

Technical Specifications & Detailed Data

The following table outlines the complete technical specifications for the Brian Crower BC3207 Exhaust Valve Set. These dimensions are critical for engine builders performing blueprinting or clearance calculations.

Installation Considerations & Final Summary

Installing the BC3207 valves is a procedure that demands precision. It is not a simple “drop-in” operation without verification. Critical steps include measuring and possibly machining the valve seats for perfect concentricity, checking and adjusting valve spring installed height and pressure, and most importantly, performing a thorough clay check or piston-to-valve clearance verification, especially if altering camshaft timing, using a thicker head gasket, or modifying pistons. The use of quality valve stem seals compatible with the 7mm stem is mandatory.

In summary, the Brian Crower BC3207 Exhaust Valve Set is a cornerstone component for any serious SR20 performance build. It solves the material weakness of OEM valves with forged EV8+ stainless steel, addresses airflow limitations with its undercut 7mm stem and optimized 30.15mm head, and delivers the precision required for high-RPM stability. Whether you are rebuilding a high-mileage turbo engine for reliability or constructing an all-out race motor, these valves provide the essential margin of safety and performance that separates a successful build from a problematic one. Invest in the foundation; the power output will follow.
