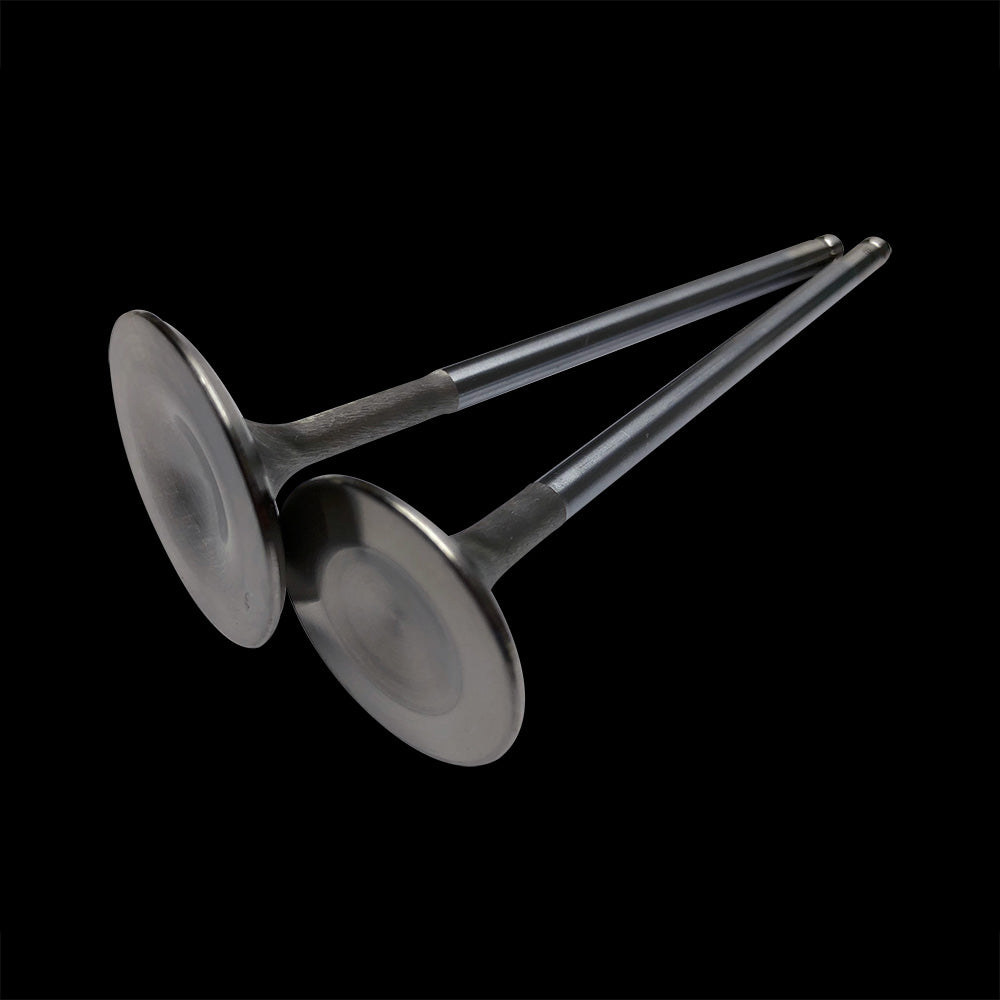

Precision Engineered for Forced Induction & High-RPM Endurance: The BC3275 Valve Set
In the realm of high-performance VK56 engine builds—where turbochargers scream and superchargers whine, pushing combustion pressures and exhaust gas temperatures to their absolute limits—the factory valvetrain components quickly become the weakest link. The Brian Crower BC3275 exhaust valve set is not an incremental upgrade; it is a fundamental re-engineering of a critical failure point. Engineered specifically for the 5.6L Nissan VK56DE, VK56VD, and their variants, this complete set of sixteen +1mm oversize (32.3mm head diameter) valves is the definitive solution for builders seeking uncompromising reliability and flow at elevated power levels. Crafted from a proprietary EV8+ stainless steel alloy and featuring a precision back-cut profile, each BC3275 valve is a testament to metallurgical science and aerodynamic efficiency, designed to withstand the brutal thermal and mechanical stresses of competitive motorsport and extreme street performance.
Material Science & Dimensional Mastery: The Anatomy of an Unbreakable Valve
The core of the BC3275’s superiority lies in its construction from Brian Crower’s signature EV8+ stainless steel. This is not standard off-the-shelf SS; it is a nitrogen-enhanced, austenitic alloy formulated for exceptional high-temperature strength and corrosion resistance. Where OEM and lesser aftermarket valves will succumb to tuliping, necking, or outright fracture under sustained high boost and EGTs, the EV8+ material maintains its tensile strength and dimensional stability. The 32.3mm head diameter represents a calculated +1mm oversize from stock, providing a crucial increase in flow area at the exhaust port. This is not a crude enlargement. The valve face is machined to an exacting 45-degree seat angle with a perfectly concentric stem, ensuring an immediate and perfect seal with compatible performance valve seats.
Critical to reducing flow restriction and inertial mass is the precision back-cut on the valve head’s underside. This machined radius minimizes the transition from the stem to the head, smoothing exhaust gas evacuation and reducing reversion tendencies. Furthermore, each valve features a hardened tip to resist wear from aggressive roller rocker arms or high-rate valve springs, preventing tip mushrooming that destroys valve lash settings. The stem is micro-polished to a mirror finish, reducing friction within the guide and enhancing oil control, a detail paramount for longevity in engines using high-lift, high-overlap camshafts.
Performance Advantages: The Tangible Benefits of Upgraded Valvetrain Integrity
- Unmatched Thermal & Mechanical Fatigue Resistance: The EV8+ alloy provides a massive safety margin against failure in forced induction and nitrous applications, directly addressing the most common mode of valvetrain catastrophe in high-output VK56 builds.
- Increased Exhaust Flow Capacity: The +1mm oversize head diameter, combined with the aerodynamic back-cut, reduces exhaust backpressure at the valve seat. This translates to more efficient cylinder scavenging, reduced pumping losses, and gains in top-end horsepower, especially when paired with ported heads and a matched camshaft profile.
- Optimized for High-RPM Stability: The careful balance of strength and weight ensures valvetrain stability at engine speeds far beyond the factory redline. This reduces the risk of valve float and allows builders to safely exploit the RPM range offered by aggressive camshafts.
- Enhanced Durability for Severe Service: From desert-racing Titans to time-attack 370Zs with VK swaps, the hardened tips and polished stems ensure consistent performance and minimal maintenance intervals even in abrasive, high-heat environments.
- Direct, No-Compromise Fitment: Engineered as a direct replacement component, these valves install into the factory or aftermarket valve guides without modification, assuming the cylinder head is properly machined for the +1mm oversize and new valve seats are installed.
Vehicle Fitment & Application Notes
The BC3275 valve set is engineered explicitly for the Nissan VK56 engine family. Correct installation is not a simple drop-in procedure and requires precision machine work by a qualified engine builder. The cylinder head must have the exhaust valve seats replaced with +1mm oversize seats and the pockets machined to accommodate the larger valve head diameter. This set is the cornerstone upgrade for:
- Nissan Titan (2004-2015 with VK56DE/VK56VD)
- Nissan Armada (2004-2015 with VK56DE/VK56VD)
- Infiniti QX56 (2004-2010 with VK56DE)
- Engine Swaps: A popular choice for VK56-swapped Nissan 350Z, 370Z, S-chassis, and road-race applications where reliability under sustained high load is non-negotiable.
Nissan Patrol / Safari (Y61, Y62 with VK56DE)
Critical Note: This upgrade is mandatory for any VK56 build exceeding ~600 wheel horsepower or utilizing sustained high-RPM operation. For an in-depth technical analysis of building a high-horsepower, forced-induction VK56 platform, reference this authoritative resource on modern engine building principles for endurance.
Technical Specifications Table
| Specification | Detail |
|---|---|
| Part Number | BC3275 |
| Valve Type | Exhaust |
| Quantity | 16 (Full Set for V8) |
| Head Diameter | 32.3mm (+1.0mm Oversize) |
| Stem Diameter | 6.0mm (Standard) |
| Overall Length | Factory Specification |
| Face Angle | 45 Degrees |
| Material | Proprietary EV8+ Stainless Steel |
| Tip Hardening | Yes, Hardened for Wear Resistance |
| Required Machining | Head must be machined for +1mm oversize valve seats and pocket clearance. |
Installation Synergy: Completing the High-Performance Valvetrain System
The BC3275 exhaust valves are a cornerstone component, but they represent one element of a fully integrated system. To realize their full potential and ensure absolute valvetrain reliability, they must be paired with complementary performance parts. Brian Crower or equivalent dual-valve springs with titanium retainers are non-optional to control the increased mass at elevated RPM. Precision-machined, bronze alloy valve guides are highly recommended for their superior heat dissipation and wear characteristics over cast iron. Finally, these valves are the perfect partners for aggressive aftermarket camshafts from Brian Crower or other reputable manufacturers, which leverage the increased flow and durability to produce monumental power gains. Isolating this upgrade without addressing the spring, guide, and camshaft equation is an incomplete engineering solution. For the serious builder, the BC3275 is the definitive step in transforming the VK56’s exhaust valvetrain from a liability into a pillar of strength, enabling the engine to reliably deliver the brutal horsepower it is inherently capable of producing.
