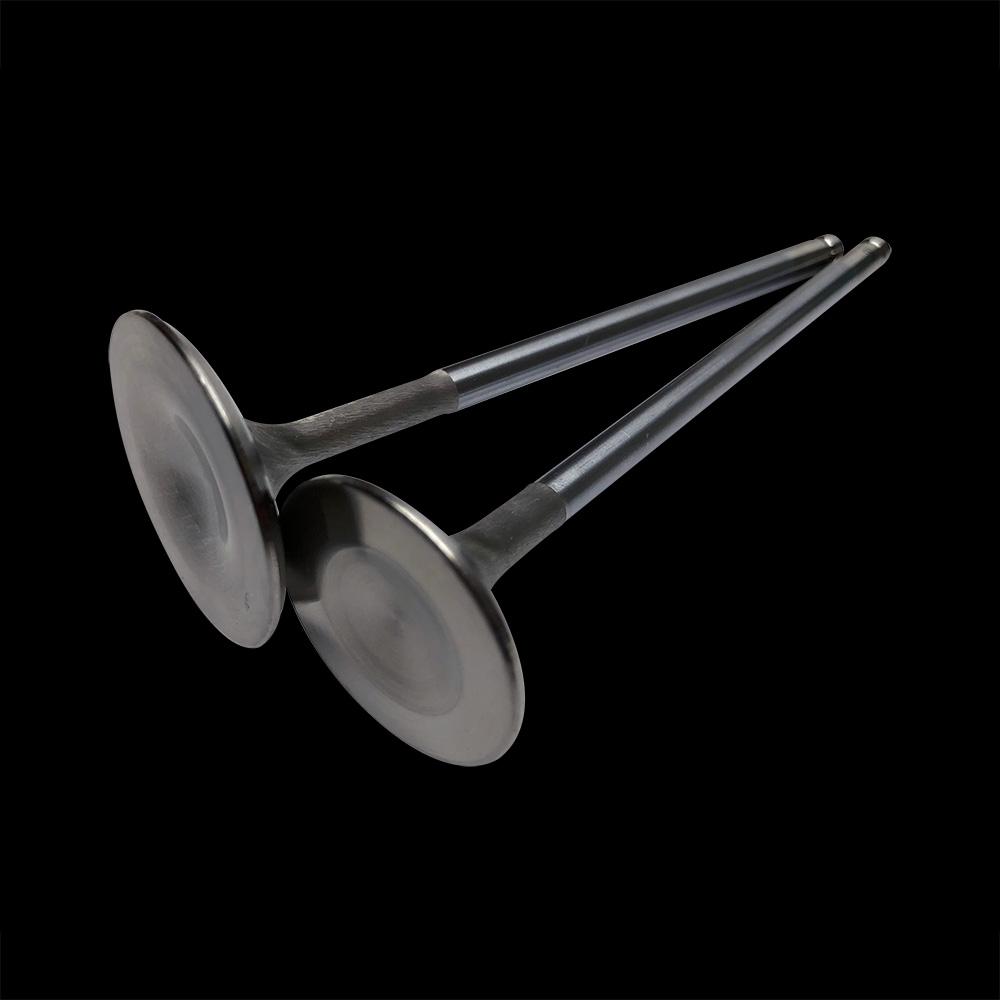

BC3302 – Toyota 2JZ Intake Valves (34.6mm / +1mm) – set/12

In the relentless pursuit of horsepower and durability within the legendary Toyota 2JZ engine platform, the bottleneck often shifts from the rotating assembly to the cylinder head’s ability to breathe. Standard valvetrain components, designed for OEM reliability and emissions, become the critical restriction when power levels escalate. The BC3302 Brian Crower +1mm Oversized Intake Valve Set is engineered as a direct, precision solution to this limitation. Representing a fundamental upgrade in port and combustion efficiency, these 34.6mm intake valves are the calculated choice for builders aiming to maximize volumetric efficiency, support increased boost or RPM, and build an engine with a foundation for serious power. This isn’t mere parts swapping; it’s a strategic recalibration of the engine’s air-handling core, leveraging advanced metallurgy and competition-proven design to transform the 2JZ’s already formidable cylinder head into a truly high-performance component.

Material Science and Construction: The Foundation of Reliability

Performance valvetrains operate in an environment of extreme thermal and mechanical stress, with valves acting as the literal gatekeepers to the combustion chamber. Brian Crower’s BC3302 valves are manufactured from a proprietary EV8+ stainless steel alloy, a material specification that far exceeds the capabilities of OEM or generic aftermarket offerings. This alloy is specifically chosen for its optimal balance of high-temperature tensile strength, thermal fatigue resistance, and corrosion resistance. The manufacturing process involves precise CNC machining followed by a critical hollow stem design. By removing material from the interior of the valve stem in a controlled manner, significant weight is reduced without compromising stem integrity or guide alignment. This reduction in reciprocating mass is paramount, directly decreasing the load on valve springs, reducing the risk of valve float at elevated RPM, and allowing for more aggressive cam profiles without sacrificing valvetrain stability. Each valve is then subjected to a multi-step micro-polishing process. This finish reduces stem friction against the guide, promotes better oil retention, and critically, removes microscopic surface imperfections that can serve as nucleation points for cracks under high-cycle fatigue, thereby extending service life.

Precision Engineering and Performance Design

The BC3302’s performance gains are rooted in deliberate, measurable design changes. The primary upgrade is the +1mm oversize, increasing the intake valve head diameter from the stock 33.5mm to 34.6mm. This 1.1mm increase in radius translates to a ~6.7% increase in valve curtain area—the available area for airflow around the valve—when the valve is lifted. This directly improves the engine’s ability to fill the cylinder, particularly at high RPM where airflow velocity is critical. The valve head features a precision-machined radiused profile and an optimized backside angle. This design minimizes flow restriction and turbulence as air transitions from the port, over the valve seat, and into the combustion chamber. To complement the increased airflow, the valves are designed to work in concert with performance valve springs and retainers (sold separately, such as Brian Crower’s BC0610 kit), ensuring proper valve control at the increased lift and RPM potential unlocked by accompanying camshaft upgrades. Proper installation always requires a three-angle valve job and often pocket porting of the cylinder head to fully realize the flow potential of the larger valve, making this a cornerstone component in a comprehensive head build.

Key Benefits and Performance Advantages

• Significant Airflow Increase: The +1mm oversize (34.6mm) provides a measurable gain in intake port flow, supporting higher horsepower and torque outputs, especially in forced-induction applications.
• Reduced Reciprocating Mass: The hollow stem design lowers inertial mass, decreasing stress on valve springs, allowing for higher safe RPM limits, and improving throttle response.
• Enhanced Durability: Manufactured from high-grade EV8+ stainless steel, these valves offer superior resistance to heat fatigue, warping, and wear compared to stock components.
• Optimized Combustion Efficiency: The engineered head profile promotes smoother, more efficient air/fuel mixture entry into the chamber, contributing to more complete combustion and power consistency.
• Direct OEM Replacement Fitment: Designed as a drop-in component for properly machined heads, utilizing stock or performance valve guides and seals, simplifying the upgrade process.
• Foundation for Aggressive Tuning: Provides the mechanical integrity needed to support large turbochargers, high boost pressure, and aggressive camshaft timing in built 2JZ engines.

Vehicle Fitment and Application Guidelines

The BC3302 valve set is engineered as a direct-fit performance upgrade for the vast family of Toyota 2JZ engines. It is crucial to understand that while the valves are a direct component replacement, their installation is part of a precision machining process. The cylinder head must be machined by a qualified shop to accept the +1mm oversize valves, including cutting new valve seats. This set is universally compatible with both turbocharged and naturally aspirated variants, making it a versatile core component for any serious 2JZ build.

Primary Fitment Includes:
• Toyota Supra (JZA80) 2JZ-GTE (1993-2002)
• Toyota Aristo (JZS161, JZS160) 2JZ-GTE (1997-2005)
• Toyota Soarer (JZZ30) 2JZ-GE (1991-2000)
• Toyota GS300 / SC300 (JZS160, JZZ31) 2JZ-GE (1993-2005)
• Toyota IS300 (GXE10) 2JZ-GE (2001-2005)
Note: Always verify specific model year and engine code compatibility. For a deep dive into valvetrain dynamics and setup theory that applies directly to this upgrade, refer to this authoritative resource on performance engine building principles.

Technical Specifications: BC3302 Intake Valve Set
