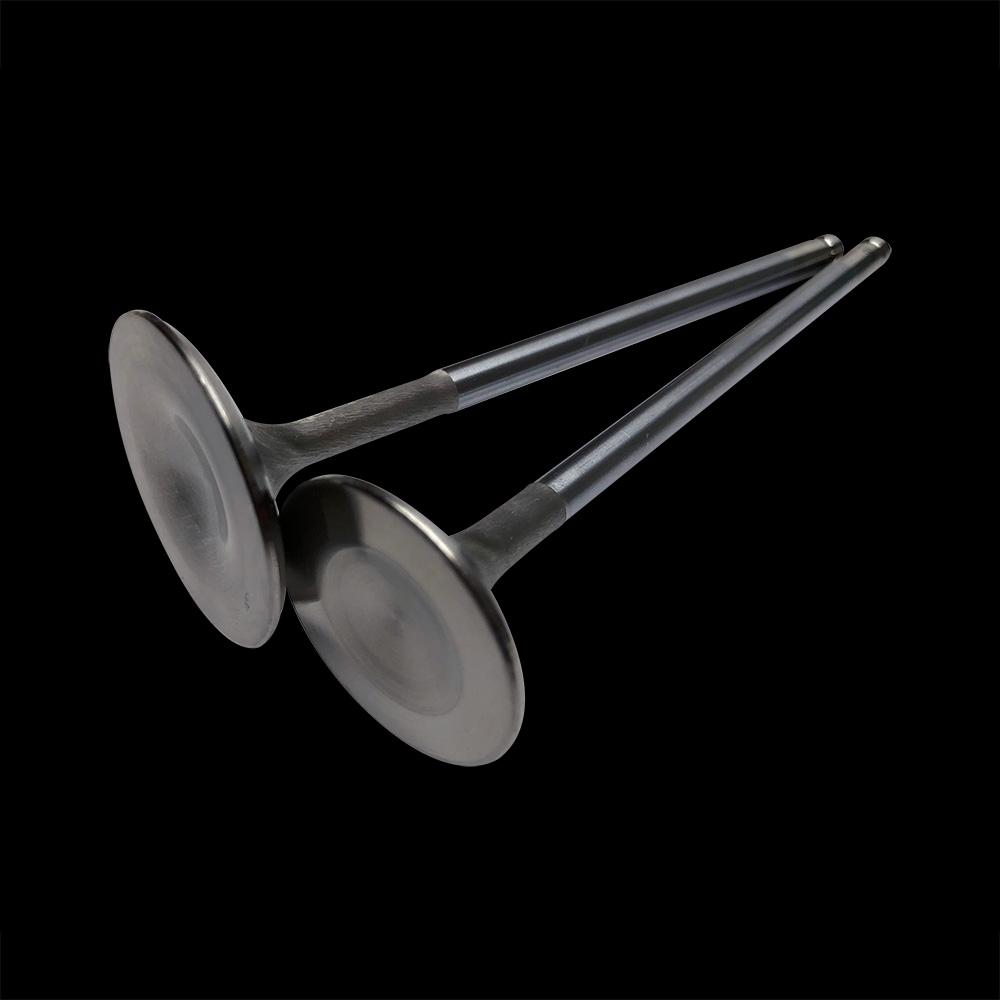

BC3313 – Toyota 1JZ Exhaust Valves (31mm / +1mm) – set/12

In the realm of performance engine building, particularly for the legendary Toyota 1JZ-GTE, the valve train is not merely a component system—it is the critical gateway controlling the engine’s respiratory efficiency. The BC3313 Exhaust Valve Set from Brian Crower represents a calculated upgrade for builders seeking to elevate their 1JZ beyond factory limitations. Engineered as a direct, performance-oriented replacement, this set of twelve 31mm (+1mm oversize) valves is designed for the individual who understands that sustainable power gains are built on a foundation of precision metallurgy and airflow science. This isn’t a generic parts-bin solution; it’s a purpose-built component for forced-induction applications, high-RPM endurance, and engines where exhaust gas temperature management is paramount. Installing the BC3313 valves is a definitive step in unlocking the true volumetric and thermal efficiency of the 1JZ platform, transforming exhaust flow from a bottleneck into a liberated pathway for power.

Material Science & Forged Construction

The foundation of the BC3313’s performance lies in its selection of EV8+ Stainless Steel. This is not standard stainless; it is a high-temperature, high-chromium alloy specifically formulated for exhaust valve duty. In a turbocharged engine like the 1JZ-GTE, exhaust valves are subjected to a brutal thermal environment, with temperatures regularly exceeding 1400°F. Standard or inferior materials can succumb to creep, tuliping, or severe oxidation (burning) under these conditions. The EV8+ alloy provides exceptional resistance to these failure modes, maintaining its tensile strength and dimensional stability. The valves are manufactured using a precision forging process, which aligns the internal grain structure of the metal for superior strength compared to cheaper, cast alternatives. This forged integrity is crucial for withstanding the relentless pounding of valve spring pressure and the mechanical stresses of high-RPM operation, ensuring longevity that matches the increased performance output.

Oversize Diameter & Flow Dynamics

The core specification of the BC3313 set is the 31mm head diameter, representing a +1mm oversize compared to the stock 1JZ-GTE exhaust valve. This seemingly modest increase has a profound impact on flow dynamics. The exhaust port is often the primary restriction in a turbocharged engine’s breathing cycle. By increasing the valve curtain area—the space between the valve head and seat through which gases escape—the BC3313 valves reduce exhaust backpressure at the valve seat itself. This allows spent combustion gases to exit the cylinder more rapidly and completely. The result is a cleaner scavenging effect, lower residual exhaust gas fraction in the cylinder, and a denser, cooler fresh air charge on the subsequent intake cycle. For a turbo application, this directly translates to reduced turbo spool time, lower exhaust gas temperatures (EGT), and a greater capacity for increased boost and timing advance. This principle of improving exhaust flow to enhance overall engine efficiency is well-documented in technical literature, such as this analysis on valvetrain science and flow dynamics.

Precision Machining & Installation Fitment

Brian Crower supplies the BC3313 valves as a blank canvas for the professional machinist or meticulous builder. The valves feature a standard 7mm stem diameter to match the OEM valve guides, ensuring proper alignment and oil control. However, the +1mm oversize head necessitates critical machine work:

• Valve Seat Machining: The cylinder head exhaust valve seats must be professionally cut or ground to match the new 31mm diameter and the valve’s 45-degree seat angle. This ensures a perfect, concentric seal.
• Valve Pocket Clearancing: In some high-lift camshaft applications, the edge of the larger valve head may travel too close to the top of the cylinder bore or the piston itself. A thorough check for piston-to-valve clearance (PTVC) is mandatory, and valve reliefs in the pistons may need to be fly-cut or notched accordingly to prevent catastrophic contact.
• Stem Tip Hardening: The valve stem tips are hardened to resist wear from the rocker arm/finger follower, a critical detail for maintaining valvetrain geometry over time.

This “unfinished” approach guarantees that the final installed geometry is perfect for your specific engine build, accounting for deck height, head gasket thickness, and camshaft profile variations.

Vehicle Fitment & Application

The BC3313 valve set is engineered specifically for the Toyota 1JZ-GTE inline-six engine. This includes, but is not limited to, applications in the following chassis:

• Toyota Supra JZA70 (Japan & International Markets)
• Toyota Soarer JZZ30
• Toyota Chaser/Mark II/Cresta JZX90, JZX100
• Toyota Crown (JZS171, etc.)
• Various aftermarket and swap applications utilizing the 1JZ-GTE long block.

Critical Note: This is a set of EXHAUST VALVES ONLY (12 valves). The 1JZ-GTE uses 12 intake and 12 exhaust valves. These are not for the non-turbo 1JZ-GE, which uses different valve specifications. Always verify your engine model and project needs before purchase.

Technical Specifications & Data

Performance Benefits Summary

Integrating the BC3313 exhaust valve set into a 1JZ-GTE build delivers a suite of measurable benefits that directly contribute to a more powerful, responsive, and reliable engine:

• Increased Exhaust Flow: The +1mm oversize diameter reduces restriction at the valve seat, lowering backpressure and improving cylinder scavenging.
• Enhanced Turbo Response: Improved exhaust scavenging helps spin the turbocharger turbine more efficiently, reducing lag and improving transient throttle response.
• Superior Thermal Management: The EV8+ stainless steel construction resists heat-related failures, maintaining integrity under extreme temperatures common in tuned turbo engines.
• High-RPM Durability: The forged construction provides the mechanical strength necessary for sustained high-RPM operation without valve float or fatigue concerns.
• Foundation for Power: By removing a key exhaust-side bottleneck, these valves support higher boost levels, more aggressive camshaft profiles, and increased overall horsepower potential.
• OEM+ Fitment: Designed as a direct replacement component, they integrate seamlessly with the stock valvetrain (after proper machining) or upgraded springs/retainers.

For the serious 1JZ builder targeting reliable power in the 500-800+ horsepower range, the BC3313 valves are not an optional accessory but a fundamental upgrade. They address the inherent limitations of the factory exhaust valves with superior materials and engineered dimensions, providing the robust, high-flow foundation required for a performance valve train that can withstand the demands of increased output. This is engineering applied with purpose, yielding results that are felt in throttle response and verified on the dyno.
