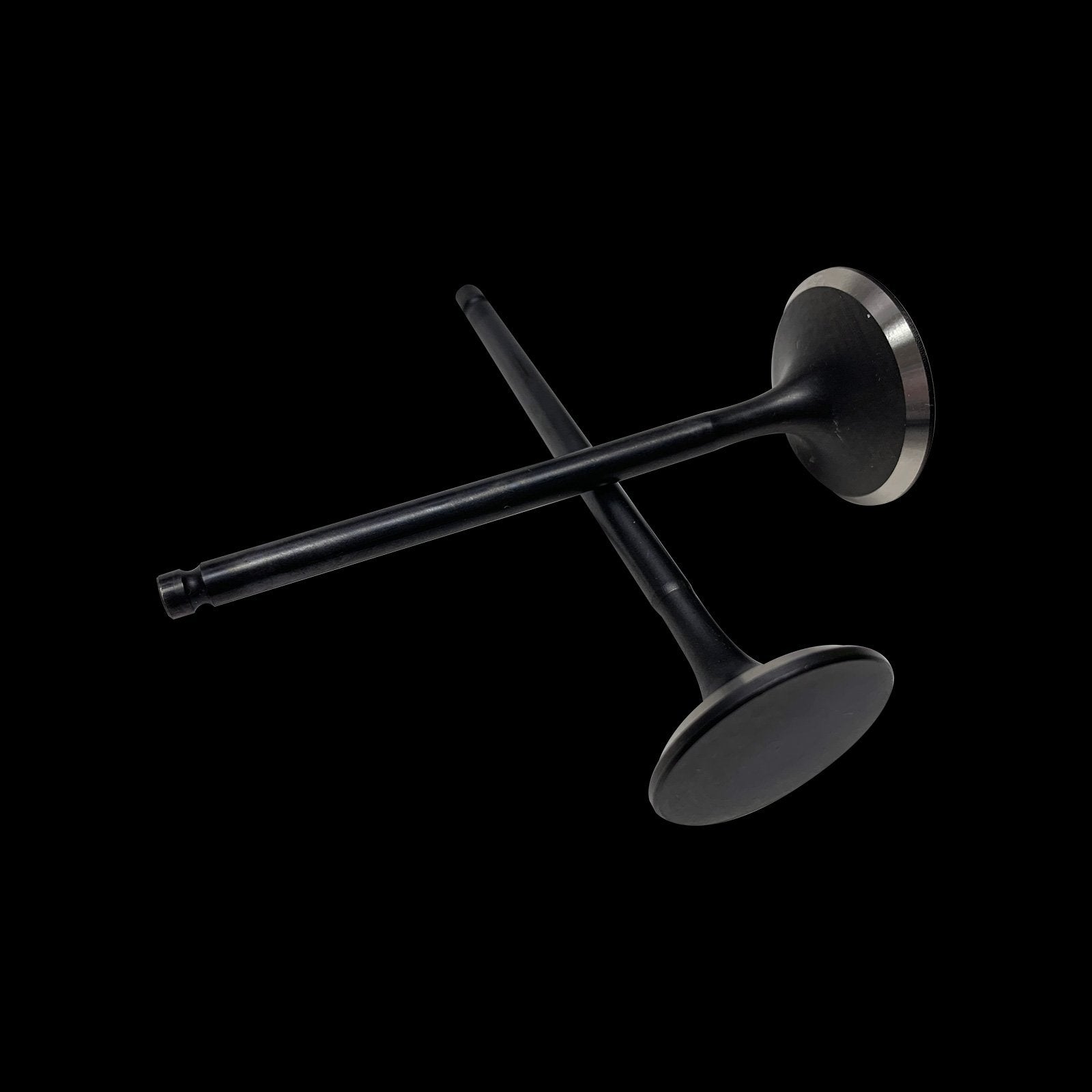

BC3401 – Mazda MZR Series Exhaust Valves (30mm / STD) – set/8

In the realm of high-performance engine building, the valvetrain is the critical interface between camshaft design and combustion efficiency. Compromise here is not an option. For the ubiquitous and highly tunable Mazda MZR series engine—also known as the Ford Duratec—selecting the correct exhaust valve is a fundamental decision that directly impacts power output, reliability, and thermal management. The Brian Crower BC3401 Exhaust Valve Set represents the definitive upgrade, moving beyond OEM replacement into the territory of precision-engineered performance. This set of eight 30mm standard-length valves is crafted from high-grade EV8 stainless steel, engineered to withstand the elevated temperatures and stresses of aggressive street, track, and forced-induction applications. For builders seeking to unlock the full potential of their 2.0L, 2.3L, or 2.5L MZR/Duratec platforms, these valves provide the foundational strength and flow characteristics necessary for a robust and responsive powerband.

Engineering and Material Superiority: The EV8 Stainless Steel Advantage

OEM exhaust valves are designed for mass production and a wide margin of reliability under stock conditions. When cylinder pressures and exhaust gas temperatures (EGT) rise, these margins evaporate. The BC3401 valves are forged from EV8 stainless steel, a material specifically formulated for high-temperature valvetrain service. EV8 offers a superior blend of tensile strength, thermal fatigue resistance, and corrosion resistance compared to standard automotive stainless alloys. This translates directly to durability under extreme conditions. The valves resist stretching and tuliping—common failure modes in boosted or high-RPM applications where valve float can cause the stem to yield. Furthermore, the enhanced thermal properties help manage heat transfer from the valve head into the stem and guide, reducing hot spots and the risk of pre-ignition or detonation, which are critical concerns in direct-injection turbocharged builds like the Mazdaspeed3/CX-7 or aftermarket turbo applications.

Key Performance Benefits of the BC3401 Valve Set

• Enhanced High-Temperature Strength: EV8 stainless steel maintains structural integrity at sustained high EGTs, preventing valve fatigue and head deformation.
• Optimized Flow Characteristics: The precision-machined profile and undercut stem (where applicable) improve exhaust scavenging, reducing pumping losses and supporting higher volumetric efficiency.
• Superior Wear Resistance: Hardened tips and carefully selected stem hardening provide exceptional resistance to wear from rocker arms or followers, ensuring consistent valve lash over extended service intervals.
• Direct OEM Fitment: As a standard-length (STD) 30mm valve, these drop into factory or aftermarket cylinder heads without requiring machining for valve height, simplifying the upgrade process while offering massive material improvements.
• Foundation for Forced Induction: The increased strength and thermal capacity make these valves a mandatory upgrade for any turbocharged or supercharged MZR build, providing the safety margin needed for elevated boost pressures.

Precision Manufacturing for Consistent Performance

Quality in valvetrain components is measured in thousandths of an inch and surface finishes. Brian Crower manufactures the BC3401 valves to exacting tolerances that exceed OEM specifications. Each valve undergoes multi-axis CNC machining to ensure perfect concentricity between the stem and head; a valve that is even slightly off-center induces side loading, accelerating guide wear and potentially compromising seal. The stem diameter is held to a tight tolerance for an optimal fit within the valve guide, balancing the need for proper oil control with smooth, friction-free operation. The critical locking groove (keeper groove) is machined with a precise profile and radius to ensure positive retention with matching aftermarket locks, eliminating the risk of valve drop—a catastrophic failure. This level of precision guarantees that all eight valves in the set are identical, providing the valvetrain harmony essential for smooth high-RPM operation and predictable valve timing.

Technical Specifications: The Data Behind the Performance

The following table details the exact specifications of the Brian Crower BC3401 Exhaust Valve Set. These figures are non-negotiable benchmarks for the serious engine builder verifying clearances and planning assembly.

Vehicle Fitment: Engine Platform Compatibility

The Mazda MZR/Ford Duratec engine family is incredibly broad, powering vehicles across multiple brands and continents. The BC3401 valve set is engineered for the core performance variants of this engine architecture. It is crucial to verify specific engine codes and head casting numbers during planning, but primary applications include:

Mazda Applications: Mazdaspeed3 (MZR DISI Turbo 2.3L), Mazdaspeed6/CX-7 (MZR DISI Turbo 2.3L), Mazda 3 (2.0L, 2.3L, 2.5L), Mazda 6 (2.3L, 2.5L), MX-5 Miata (NC 2.0L).
Ford Applications: Focus ST (Duratec 2.3L), Focus (2.0L Duratec), Fusion/Milan (2.3L, 2.5L).
Other Platforms: Various aftermarket and kit car applications utilizing the MZR/Duratec as a lightweight, powerful swap candidate. Always confirm that the cylinder head uses the standard 30mm exhaust valve diameter, as some heavily ported or aftermarket heads may employ oversized valves.

Installation Considerations and Final Assembly

While these valves are a direct fit for standard dimension cylinder heads, proper installation is paramount. We strongly recommend a professional valve job to ensure the new valves seat perfectly with the existing or new seats. The cylinder head should be inspected for guide wear; worn guides will compromise the performance and longevity of even the best valves. Always use new, high-quality valve stem seals and match the valves with appropriate aftermarket springs and retainers from a manufacturer like Brian Crower, as the OEM spring rate may be insufficient for high-lift cams or elevated RPM. Critical steps like checking and setting installed height, spring pressure, and coil bind clearance cannot be overlooked. For a deep dive into the science of valve seating and its effect on compression and flow, refer to this authoritative technical resource on valve seat machining and geometry. The BC3401 valves provide the component excellence; proper installation ensures that excellence is fully realized in the finished engine.
