The Critical Role of Precision Valve Guides in High-Revving VTEC Engines

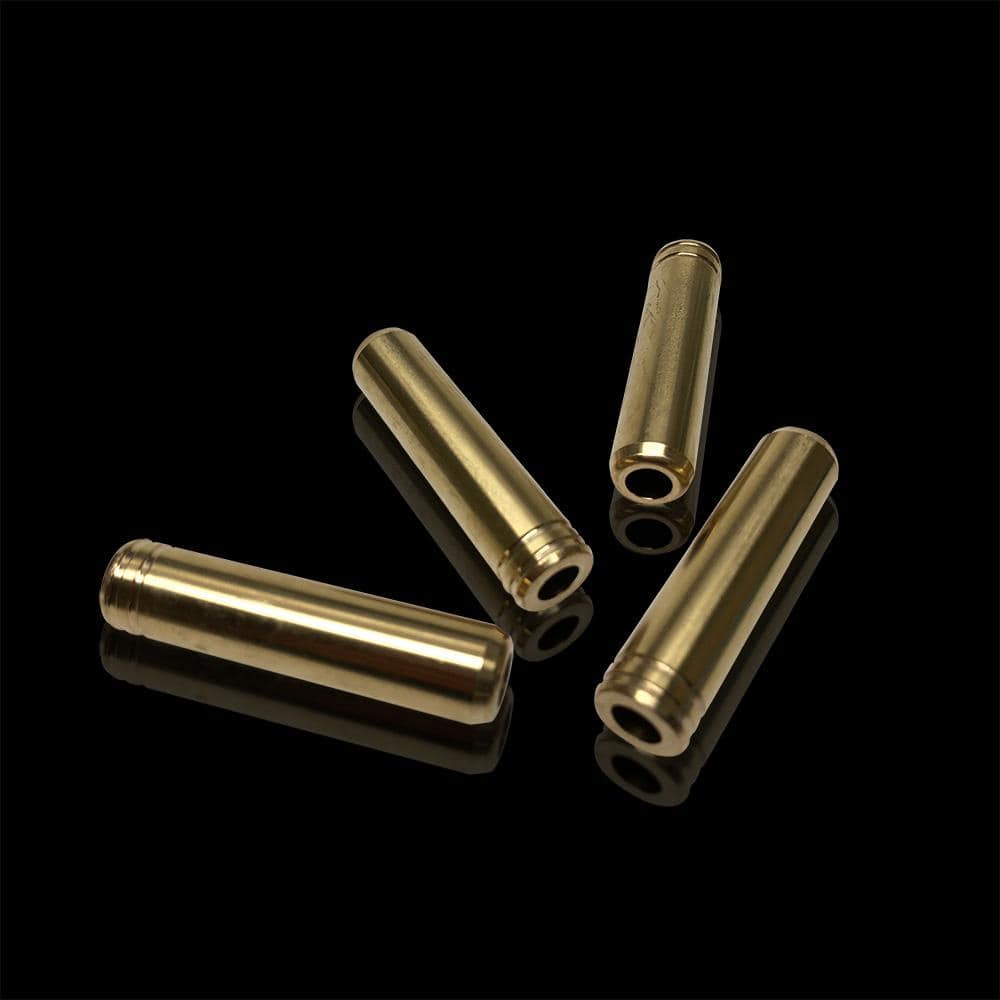

In the stratified world of high-performance Honda engine building, particularly for the legendary F20C and F22C powerplants, every component is scrutinized for its contribution to power, reliability, and throttle response. While camshafts, valves, and pistons often claim the spotlight, the humble valve guide is a foundational pillar of valvetrain integrity. The BC3907 exhaust valve guide set from Brian Crower represents a meticulous engineering solution tailored specifically for the demanding environment of the Honda F-Series VTEC engine. Designed to replace the stock 5.5mm exhaust guides, these are not mere maintenance parts; they are performance upgrades forged from superior materials and machined to exacting tolerances. For builders pushing the limits of naturally aspirated RPM or harnessing forced induction, the correct valve guide is a non-negotiable element for maintaining precise valve alignment, managing extreme thermal loads, and ensuring the valvetrain stability that these engines are famous for.
Engineering and Material Superiority of the BC3907 Guide
Standard OEM valve guides are typically cast from iron-based alloys adequate for stock applications but can become a liability under sustained high-load, high-RPM operation. The Brian Crower BC3907 guides are precision-machined from a high-grade phosphor bronze alloy, a material choice that offers a decisive performance advantage. Phosphor bronze provides an exceptional combination of durability, thermal conductivity, and inherent lubricity. Its superior heat dissipation qualities are critical for exhaust guides, which are subjected to direct exposure of combustion gases exceeding 1200°F. This rapid heat transfer away from the valve stem mitigates the risk of stem galling and carbon buildup. Furthermore, the slightly softer nature of bronze compared to the hardened steel valve stem promotes a favorable wear characteristic, protecting the more expensive and critical valve component. Each BC3907 guide is manufactured with a micro-finish on the interior bore to reduce friction from the moment of installation, contributing to less parasitic drag on the valvetrain and promoting freer valve movement.
- Enhanced Heat Dissipation: Phosphor bronze construction pulls heat away from the valve stem faster, reducing thermal stress and the risk of valve seizure.
- Superior Wear Characteristics: The material pairing minimizes wear on both the guide and the valve stem, extending the service life of the entire valvetrain assembly.
- Reduced Friction: Precision machining and optimal material finish lower stem-to-guide friction, contributing to peak engine efficiency and RPM capability.
- Dimensional Precision: Each guide is held to a tight tolerance, ensuring perfect concentricity for flawless valve seat alignment and seal.
- Optimized for Performance: Specifically designed for high-RPM and high-output F-Series builds, whether NA, turbocharged, or supercharged.
Vehicle Fitment and Application Specifics
The BC3907 kit is engineered with a laser focus on the Honda F-Series VTEC engines that powered the iconic S2000 and other performance platforms. Correct fitment is paramount, as valve guide dimensions are critical to engine function. This product is a direct replacement for the exhaust valve guides in the following applications:
Primary Applications: Honda F20C1 (2000-2003 S2000 AP1), Honda F20C (JDM variants), Honda F22C1 (2004-2009 S2000 AP2). It is crucial to note that these guides are for the exhaust valves only and are sized for the standard 5.5mm valve stem diameter. They are intended for use with aftermarket or OEM exhaust valves of the correct specification. Installation is a professional-grade task requiring the precise removal of the old guides, reaming of the cylinder head to the exact interference fit, and proper installation depth setting—a process that should only be undertaken by a skilled machinist or engine builder with the proper tools. For a deeper technical dive into valve guide materials and their impact on engine performance, refer to this authoritative resource on valve guide material selection from EngineLabs.
Technical Specifications and Installation Data
| Attribute | Specification |
|---|---|
| Part Number | BC3907 |
| Application | Exhaust Valves (5.5mm stem) |
| Compatible Engines | Honda F20C, F20C1, F22C1 |
| Material | High-Grade Phosphor Bronze |
| Quantity per Kit | 8 (for one cylinder head) |
| Outer Diameter (Press Fit) | Precision machined to OEM specification for correct interference fit. |
| Inner Diameter (Running Clearance) | Machined to optimal clearance for a 5.5mm valve stem, typically requiring final reaming during installation. |
| Finish | Machined finish, ready for professional installation. |
Integration into a Comprehensive Performance Build
The BC3907 valve guides are not a standalone modification but a critical component within a holistic engine build strategy. They are most commonly installed during a cylinder head overhaul, which typically includes valve seat cutting, surface milling, and the installation of new valves, springs, and retainers. When paired with high-lift camshafts and stiff valve springs necessary for elevated RPM limits, the role of a rigid, thermally stable guide becomes even more pronounced. The guide must maintain perfect valve stem alignment against the asymmetrical lateral loads induced by aggressive cam profiles. For forced induction applications, where exhaust gas temperatures can be even more extreme, the thermal management properties of the phosphor bronze are invaluable. Choosing the BC3907 guides signifies an understanding that ultimate performance is built from the foundation up, ensuring that the precision of the rotating and reciprocating assembly is matched by the stability of the valvetrain. This commitment to component-level excellence is what separates a durable, high-output engine from a fragile assemblage of peak-power parts.
The Final Verdict: A Builder’s Component for Ultimate Reliability
In summary, the Brian Crower BC3907 exhaust valve guides are a professional-grade component essential for any serious Honda F-Series engine build. They address the specific thermal and mechanical challenges inherent in pushing these already high-strung engines beyond their stock parameters. By upgrading to these guides, builders invest in the long-term integrity of their cylinder head, protecting more expensive components and ensuring consistent performance. The choice of phosphor bronze, coupled with precision manufacturing, offers tangible benefits in heat management, wear reduction, and friction minimization. While their installation requires expert machining, their inclusion is a mark of a thorough and well-engineered build. For the enthusiast or professional seeking to extract every ounce of performance and reliability from an F20C or F22C, the BC3907 is not just a replacement part—it is a strategic upgrade that fortifies the very heart of the engine’s combustion process.
