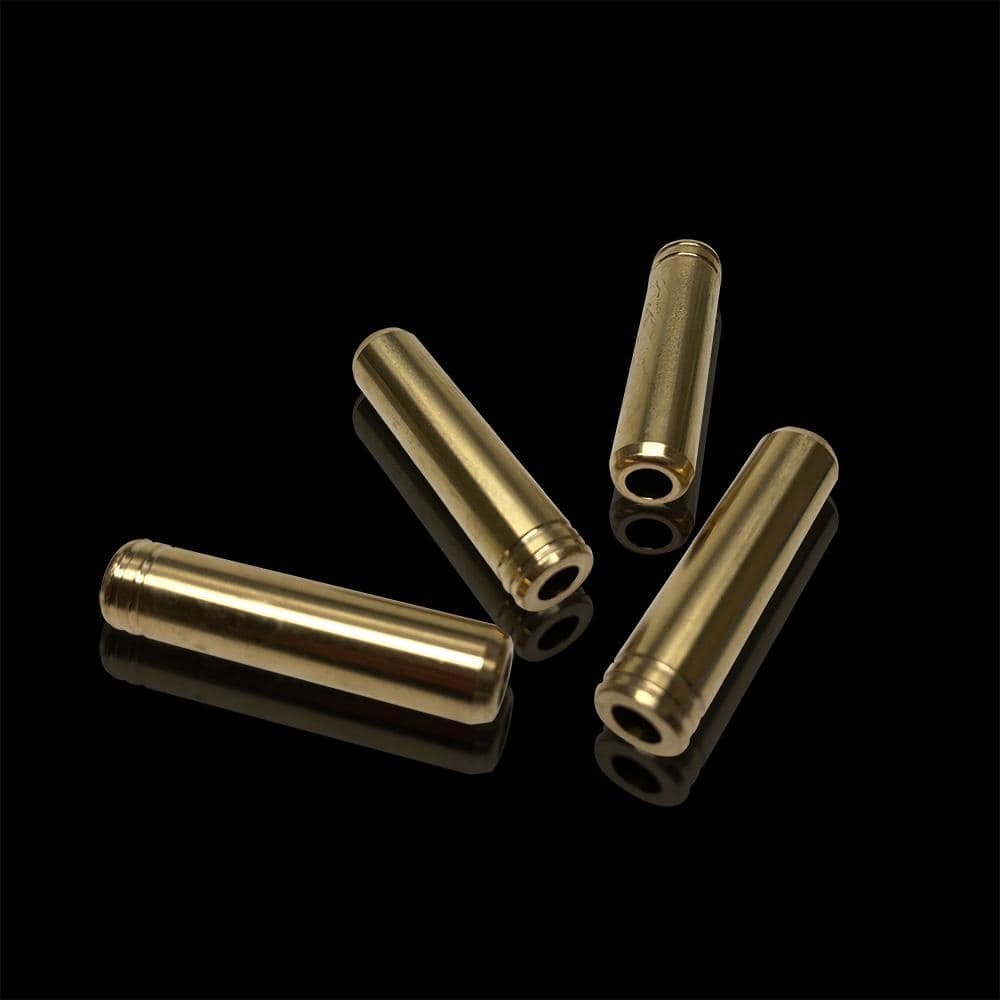

BC3928 – Nissan RB26DETT – Intake Valve Guides

Precision Engineered Valve Guidance for the Legendary RB26DETT

The Nissan RB26DETT engine is a masterpiece of forced-induction engineering, a powerplant whose legacy is built on a foundation of robust internal components and meticulous design. To extract its maximum potential and ensure its longevity under extreme stress, every single component must be selected and machined to exacting standards. At the critical interface between the cylinder head and the valvetrain lies a component whose importance is often underestimated: the valve guide. The BC3928 Intake Valve Guides from Brian Crower are not mere replacements; they are a purpose-built upgrade engineered to restore and enhance the sealing integrity, thermal management, and volumetric efficiency of your RB26’s cylinder head. Designed for the serious builder, these guides provide the stable, low-friction platform required for high-lift, high-RPM operation, ensuring your valvetrain performs with surgical precision.

The Critical Role of High-Performance Valve Guides

In a high-performance engine, particularly a turbocharged icon like the RB26DETT, valve guides serve a multifaceted role far beyond simply holding the valve stem. They are the precision-bearing surface that controls valve alignment, directly impacting seat sealing and combustion chamber integrity. Standard, worn, or inferior guides lead to valve stem oil drag, increasing parasitic loss and contaminating the intake charge with oil—robbing power and increasing emissions. Under the intense thermal load of boosted applications, guides must dissipate heat from the valve effectively to prevent stem galling and guide bore distortion. Brian Crower’s BC3928 guides are engineered from a proprietary high-density, copper-infused bronze alloy. This material is selected for its superior thermal conductivity, inherent lubricity, and excellent wear characteristics compared to stock iron or standard bronze, providing a significant upgrade in durability and operational stability.

Engineering & Material Superiority of BC3928 Guides

Brian Crower components are synonymous with motorsport-level quality, and the BC3928 guides exemplify this philosophy. Each guide is CNC-machined from a solid bar of premium bronze alloy, ensuring perfect concentricity and a flawlessly smooth I.D. finish that minimizes friction and promotes optimal oil film retention on the valve stem. The precise 6.0mm inner diameter is held to a tolerance that guarantees perfect clearance for standard or most aftermarket 6mm valve stems, crucial for maintaining proper oil control without excessive play. The external diameter is engineered for a perfect press-fit into the RB26DETT cylinder head, utilizing a precise interference fit that ensures maximum heat transfer from the guide to the aluminum head. This direct-metal-to-metal contact path is vital for pulling heat away from the exhaust valve, especially critical in a twin-turbo setup where under-head temperatures are extreme.

• Enhanced Cylinder Sealing: Perfect valve alignment ensures the valve seat contacts evenly, creating a robust seal for maximum compression and preventing power loss from leakage.
• Superior Heat Dissipation: The high-copper-content bronze alloy acts as a thermal bridge, efficiently pulling heat from the valve stem into the cylinder head, reducing the risk of detonation and valvetrain fatigue.
• Reduced Friction & Wear: The machined I.D. surface and material’s self-lubricating properties minimize stem drag, freeing up horsepower and extending the service life of both the guides and valves.
• Optimal Oil Control: Precision clearance management helps regulate the amount of oil traveling down the valve stem, reducing intake charge contamination and oil consumption.
• Foundation for High-RPM Stability: A rigid, accurately installed guide is the bedrock for stable valvetrain dynamics at elevated RPM, preventing valve float and ensuring precise cam timing.

Installation Precision: A Mechanic’s Mandate

The performance advantage of the BC3928 guide is entirely dependent on correct, professional installation. This is not a component for the casual installer. The existing, worn guides must be removed using a proper stepped guide removal tool to avoid damaging the soft aluminum of the cylinder head. The head must then be heated uniformly in an oven to expand the aluminum bore, allowing the new, chilled BC3928 guides to be pressed in with controlled, even force. This heat-and-freeze installation method ensures a consistent, gapless interference fit without stressing the head material. After installation, each guide bore must be honed or reamed to the final, exact stem clearance specification—a step that is absolutely critical. Final valve-to-guide clearance is typically between 0.001″ to 0.003″ for intake valves on a performance build, a specification that must be verified with a dial indicator. For an in-depth look at valvetrain dynamics and setup, refer to this technical resource on valvetrain geometry fundamentals from EngineLabs.

Vehicle Fitment & Application Specifics

The BC3928 Intake Valve Guides are designed as a direct, performance-oriented replacement for the factory intake valve guides in specific Nissan engines. Correct identification of your cylinder head is essential before purchase.

Primary Application:

• Nissan RB26DETT (1990-2002) – Found in the Nissan Skyline GT-R (R32, R33, R34). This is the core application.

Compatibility Notes:

• These guides are specifically for intake valves with 6.0mm diameter stems on the RB26DETT.
• They are also compatible with other RB-series engines (e.g., RB20, RB25) that utilize 6mm intake valve stems, but confirmation of stock stem diameter is required.
• Always intended for use with matching Brian Crower or quality aftermarket valves to ensure specified clearances are achieved.
• Installation requires machining and should be performed as part of a comprehensive head rebuild, including valve seat cutting and surface milling.

Technical Specifications: BC3928 Valve Guides

The Foundation for Forced-Induction Reliability

Selecting the BC3928 Intake Valve Guides is an investment in the foundational integrity of your RB26DETT’s cylinder head. In the world of high-horsepower, turbocharged builds, attention to these critical details separates a durable, responsive engine from a problematic one. By ensuring perfect valve alignment, superior heat transfer, and minimal friction, these guides protect your investment in high-end valves, springs, and camshafts. They are a core component in building an RB26 that not only makes monumental power but does so with the tractability and resilience required for both circuit domination and spirited street use. When blueprinting your engine, start with a solid foundation—specify Brian Crower BC3928.
