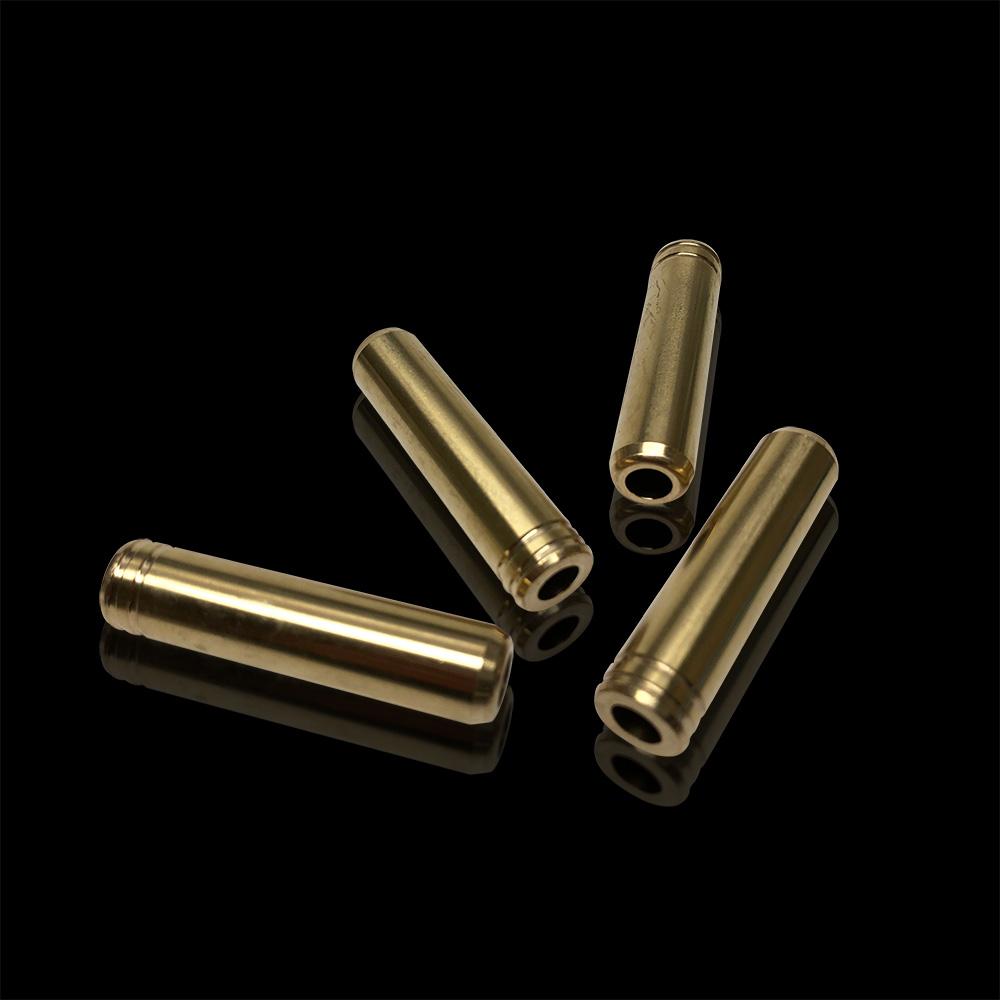

BC3901 – Honda/Acura B Series VTEC (B16A, B18C, B17A) Exhuast Valve Guides

In the realm of high-performance naturally aspirated engines, few platforms are as revered as Honda and Acura’s B-Series VTEC. These engines, celebrated for their high-revving character and robust power delivery, place immense thermal and mechanical stress on their valvetrain components. At the heart of this system, the exhaust valve guides play a non-negotiable, critical role in maintaining seal integrity, managing extreme heat, and ensuring precise valve alignment. The BC3901 Exhaust Valve Guides from Brian Crower are not mere replacements; they are a calculated upgrade engineered for enthusiasts and builders who demand longevity and peak performance from their B16A, B18C, and B17A powerplants. Designed to surpass OEM specifications in every measurable metric, these guides are the foundation for a valvetrain capable of sustaining elevated RPM limits and aggressive cam profiles, making them an essential component for any serious performance build or endurance application.

Engineering Philosophy: Beyond OEM Specifications

The OEM exhaust valve guides in B-Series VTEC engines are designed for a balance of cost, longevity, and performance under factory conditions. However, when subjected to the increased thermal loads from forced induction, high-compression builds, or sustained high-RPM operation, their limitations become apparent. The BC3901 guides are conceived from a motorsport perspective, where failure is not an option. Utilizing a proprietary phosphor bronze alloy, these guides offer a superior blend of thermal conductivity, inherent lubricity, and wear resistance compared to cast iron or standard bronze compositions. The precision machining process ensures a perfectly concentric inner diameter (ID) of 5.5mm, which is critical for maintaining the exact stem-to-guide clearance necessary to prevent oil ingress (oil burning) while allowing for minimal friction and optimal heat transfer away from the exhaust valve stem. This meticulous attention to dimensional stability under heat is what separates a performance component from a standard replacement.

Material Science and Dimensional Perfection

The choice of phosphor bronze for the BC3901 is a direct response to the unique demands of a VTEC exhaust port. This alloy incorporates a small percentage of phosphorus, which forms a hard, wear-resistant phosphide network within the copper-tin matrix. This structure provides several key advantages: exceptional resistance to galling and seizing with the hardened steel valve stem, a coefficient of thermal expansion that closely matches that of the aluminum cylinder head to maintain clearance stability, and outstanding thermal conductivity to pull heat away from the valve. Each guide is manufactured to a net shape with a surface finish that promotes the retention of oil film, further reducing wear. The outer diameter (OD) is precision-sized for a perfect interference fit in the machined head, ensuring maximum heat transfer to the head casting and eliminating any potential for movement during operation.

Performance Advantages of the BC3901 Valve Guides

Upgrading to the Brian Crower BC3901 guides translates into tangible performance and reliability gains for your B-Series engine. The benefits are systemic, impacting everything from horsepower retention to long-term engine health.

• Enhanced Heat Dissipation: The superior thermal conductivity of the phosphor bronze alloy actively cools the exhaust valve stem, reducing the risk of valve tulip overheating, necking, and subsequent failure. This is crucial for preventing detonation and maintaining valve seat integrity.
• Optimized Valve Stem Sealing: The precisely honed 5.5mm ID maintains ideal running clearance, significantly reducing the passage of oil down the valve stem into the exhaust port. This eliminates power-robbing oil consumption and reduces carbon buildup on valve heads and seats.
• Increased Durability and Wear Resistance: The hardened phosphor bronze material exhibits exceptional resistance to abrasive wear, even when used with aggressive spring pressures and high-lift camshafts. This extends the service interval for valve guide maintenance and ensures consistent valve timing and lift over the engine’s lifespan.
• Improved Valve Stability: A perfectly concentric guide ensures the exhaust valve travels in a true, linear path. This minimizes side loading on the valve stem and seat, promoting even seat wear, improving combustion seal, and allowing for more precise valve timing from aftermarket camshafts.
• Foundation for High-RPM Operation: By providing a stable, low-friction environment for the valve stem, these guides are essential for safely extending the engine’s RPM limit. They help control valve float by reducing parasitic friction and ensuring consistent valve motion, a key factor in achieving reliable high-RPM power.

For a deeper dive into the metallurgy and engineering behind high-performance valve train components, refer to this authoritative resource on valve guide materials and technology.

Vehicle Fitment: Comprehensive B-Series VTEC Application Guide

The BC3901 kit is engineered specifically for the exhaust valve positions in popular Honda and Acura B-Series VTEC cylinder heads. Correct fitment is paramount for performance and reliability. These guides are designed as direct replacements for the OEM components in the following applications. It is critical that the cylinder head is professionally machined to accept the new guides with the proper interference fit.

Primary Engine Applications:

• Honda B16A: Found in JDM and USDM vehicles including the Honda Civic Si (EM1), Civic VTi (EG/EE), CR-X SiR (EF8), and Integra RSI (DA6/DA8). Includes both early and late model variants with VTEC.
• Honda B18C: This covers the flagship B18C1 (USDM Integra GSR) and the B18C5 (USDM Integra Type R) as well as the JDM B18C R-type engines. Applications include the Acura Integra GS-R (1994-2001), Acura Integra Type R (1997-2001), and Honda Integra Type R (DC2).
• Honda B17A: The less common but potent engine found exclusively in the 1992-1993 Acura Integra GS-R (DA chassis). The BC3901 guides are fully compatible with this engine’s cylinder head.

Vehicle Models by Chassis Code:

• Honda Civic: EG (1992-1995), EK (1996-2000) for SiR/Si models with B16A.
• Honda CR-X: EF8 (1989-1991) SiR.
• Acura/Honda Integra: DA (1990-1993), DC (1994-2001) for GS-R and Type R models.
• Honda Del Sol: SiR models (B16A).

Note: Always verify engine designation and cylinder head casting number prior to purchase. Installation requires the proper removal and installation tools, as well as machining equipment for guide replacement and subsequent valve seat cutting and reaming for perfect stem-to-guide clearance.

Technical Specifications and Dimensional Data

The following table provides the exact technical specifications for the Brian Crower BC3901 Exhaust Valve Guides. Adherence to these dimensions during installation is critical for achieving the designed performance benefits.

Installing the BC3901 guides is a precision operation that mandates the use of a proper guide driver, a press, and access to a machine shop capable of reaming the ID to the final specified clearance after they are pressed in. This process ensures the guides are perfectly aligned and the clearance is uniform across all eight exhaust ports, which is fundamental for balanced cylinder performance and longevity. By selecting the BC3901, you are not just replacing a wear item; you are integrating a component designed to elevate the entire operational envelope of your B-Series VTEC engine, safeguarding your investment and unlocking its full performance potential.
