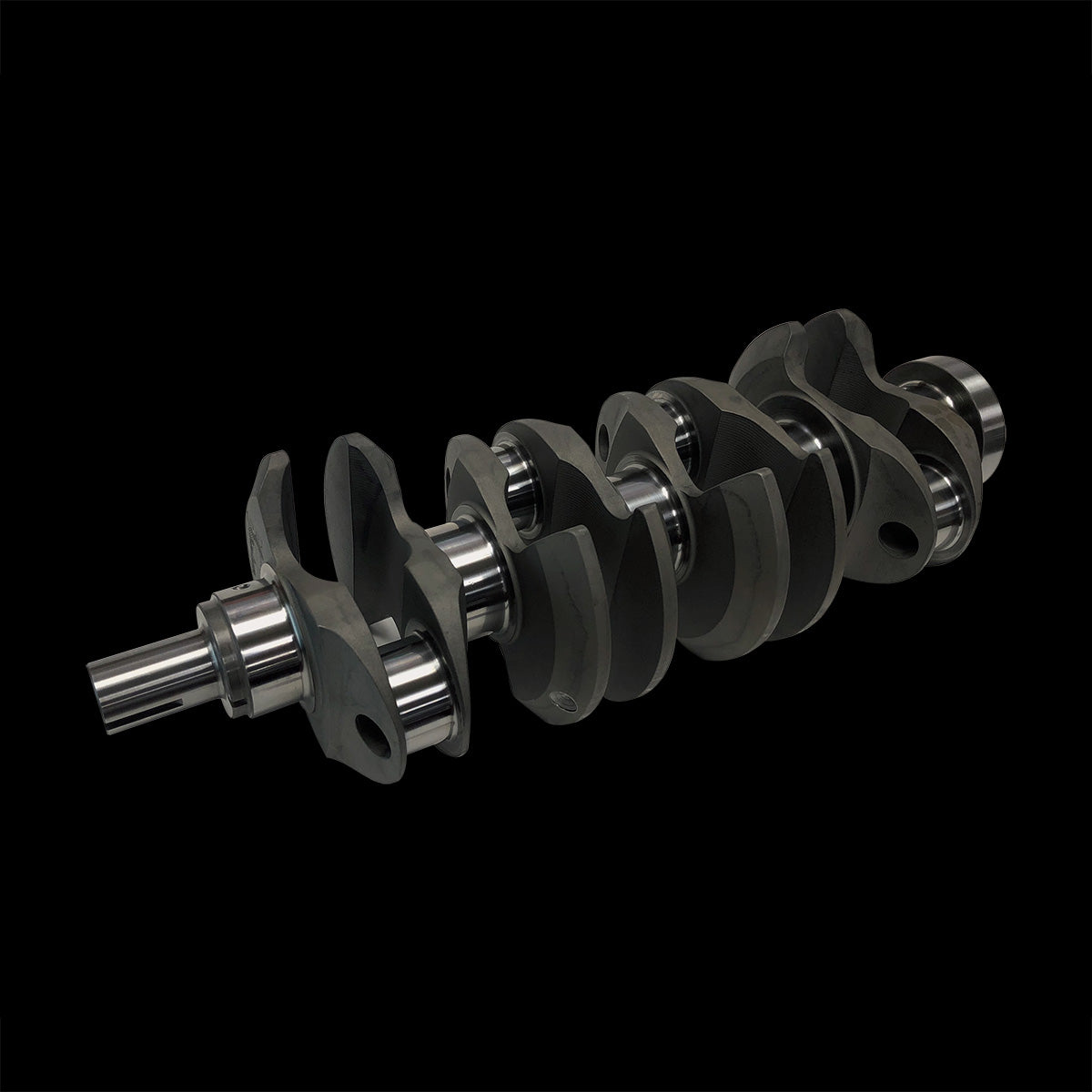

BC5049LW – Honda K Series LightWeight Crankshaft – 4340 Billet – 102mm Stroke w/LS Journals (-7 lbs lighter)

In the relentless pursuit of rotational mass reduction and ultimate engine response, the Brian Crower BC5049LW Lightweight Crankshaft stands as a definitive engineering solution for the Honda K Series platform. This is not merely a component; it is a recalibration of rotational inertia, engineered from the molecular level up to deliver an unequivocal performance advantage. Crafted from premium 4340 billet steel and featuring a substantial 102mm stroke paired with LS-series main journals, the BC5049LW represents a paradigm shift in K Series engine building. It directly addresses the fundamental limitation of factory rotational assemblies, shedding approximately 7 pounds of mass to liberate horsepower previously spent on acceleration of the crankshaft itself, translating into sharper throttle response, faster revving, and reduced parasitic loss. For the builder who understands that power under the curve and engine character are dictated by the rotating assembly, this crankshaft is the foundational upgrade.

Material Science & Forged Billet Superiority

The core of the BC5049LW’s performance lies in its material composition and manufacturing process. Brian Crower utilizes AISI 4340 chromoly nickel steel, a quintessential alloy in high-stress motorsport applications. Its properties are far superior to the cast or even typical forged 1018 steel of OEM units. The key advantages of 4340 billet are its exceptional tensile strength, superior fatigue resistance, and remarkable toughness. The “billet” process involves machining the crankshaft from a single, solid block of this premium material, as opposed to forging it under a die. This allows for absolute control over grain flow and material integrity in critical stress zones, such as the fillet radii of the journals and the cheek areas. The result is a crankshaft that can withstand the enormous cylinder pressures and inertial loads of high-RPM, high-horsepower applications—think forced induction or high-compression NA builds—with a significant safety margin over factory-designed components.

Engineering Design & Performance Benefits

The design philosophy behind the BC5049LW is a holistic approach to performance tuning through mass optimization and geometry. The specified 102mm stroke is a common performance increase over many stock K-series strokes, providing a tangible bump in displacement and torque when paired with appropriate pistons and rods. However, the masterstroke is the implementation of GM LS-series main journal diameters. This design decision grants access to a vast, cost-effective ecosystem of high-performance LS main bearings, known for their durability and availability. More critically, the strategic machining and counterweight design achieve the remarkable ~7 lb weight reduction. This is not random material removal; it is precise engineering that reduces the polar moment of inertia. A lighter crankshaft requires less energy to accelerate and decelerate, freeing up horsepower that was otherwise wasted and making the engine feel dramatically more responsive.

• Approximately 7-Pound Weight Reduction: Drastically lowers rotational mass, freeing horsepower and improving throttle response.
• 4340 Billet Steel Construction: Offers maximum strength, fatigue resistance, and durability for extreme applications.
• 102mm Stroke: Increases engine displacement and torque output for a broader, more powerful curve.
• LS Series Main Journals (2.559″ / 65mm): Leverages the robust and widely available LS bearing ecosystem for reliability and serviceability.
• Precision Machined & Balanced: Engineered for smooth operation at high RPM, reducing harmonics and bearing wear.
• Optimized Counterweight Design: Strategically reduces mass while maintaining perfect balance for stable operation.

Vehicle & Engine Fitment Details

Primary Application: The BC5049LW is engineered specifically for the Honda/Acura K-series engine family. Precise fitment requires matching components. It is designed for performance builds utilizing an aftermarket engine block or a meticulously prepared OEM block that accepts the LS main journal size.

Critical Compatibility Notes: This crankshaft’s LS main journal diameter (2.559″) is not a direct drop-in replacement for a stock K-series block. Installation mandates the use of an engine block machined to accept LS-series main bearings (e.g., a Brian Crower or other aftermarket billet block, or an OEM block that has been professionally line-bored for LS mains). Pairing it with the correct LS main bearings and BC or other performance connecting rods designed for this crank’s rod journal specifications is absolutely essential. Always consult with your machinist and verify all bearing clearances and tolerances during assembly.

Technical Specifications & Data

Installation & Final Build Considerations

The installation of a component of this caliber is a precision operation. It begins with verifying block compatibility for LS mains. After confirming fit, the absolute priority is performing a meticulous dry-assembly clearance check for both main and rod bearings using Plastigage or a precision micrometer. Final balancing of the entire rotating assembly—crankshaft, damper, flywheel, clutch, and connecting rods with pistons—is non-negotiable for achieving the smooth, high-RPM potential this crank offers. Neglecting this step can lead to destructive harmonics. For a deeper technical understanding of crankshaft harmonics and balancing principles, which are critical for any high-performance build, refer to this authoritative resource on crankshaft balancing techniques. The BC5049LW is the heart of a serious performance engine; surround it with components of equal quality and prepare it with machinist-grade precision to unlock its full, transformative potential.
