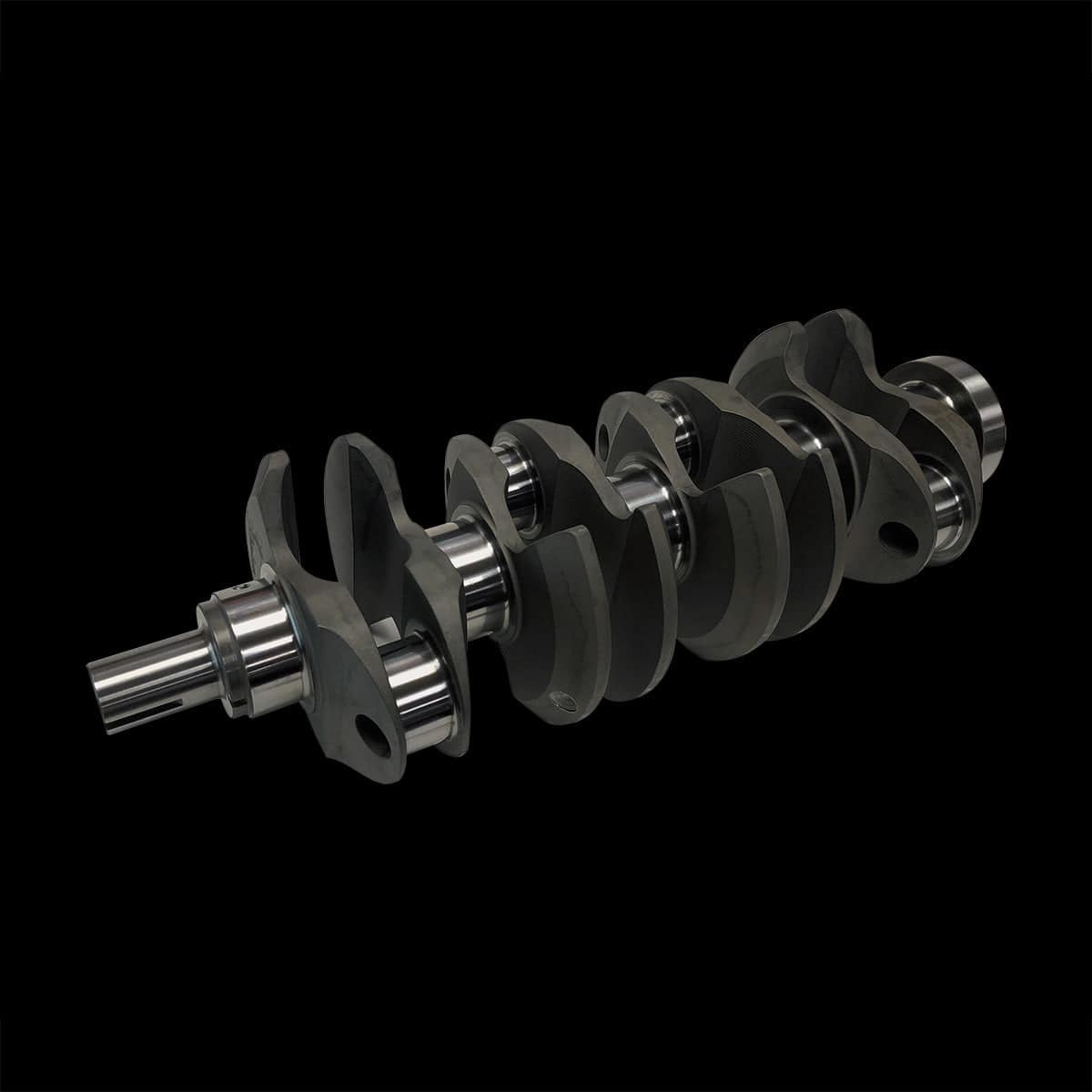

BC5209LW – Nissan SR20DE(T) – 4340 Billet LightWeight Crankshaft 91mm Stroke (-7 lbs lighter)

Engineering the Pinnacle of Rotating Assembly Performance

The quest for ultimate engine response and high-RPM durability demands a foundation of absolute strength and minimal inertia. For the legendary Nissan SR20DE(T) platform, the BC5209LW 4340 Billet Lightweight Crankshaft represents this foundational peak. Engineered by Brian Crower, this isn’t merely a replacement component; it is a purpose-built, CNC-machined from a single billet of premium AISI 4340 chromoly steel, designed to transform the rotating assembly’s character. With a precise 91mm stroke and a staggering mass reduction of approximately 7 pounds versus the OEM nodular iron casting, the BC5209LW is the definitive upgrade for serious builders targeting explosive throttle response, reduced parasitic loss, and unwavering reliability at sustained high horsepower levels. This crankshaft is the core around which championship-winning SR20DET and high-compression NA builds are forged.

The Billet Advantage: Uncompromised Material Integrity

To understand the superiority of the BC5209LW, one must first understand the critical difference between forging and billet machining. While high-quality forgings are excellent, the process can introduce grain flow inconsistencies. A true billet crankshaft begins as a solid, homogeneous “blank” of pre-hardened AISI 4340 alloy steel. This material is selected for its exceptional tensile strength, superb fatigue resistance, and ideal hardness characteristics for crank applications. The CNC machining process then carves the final part from this perfect block of material, ensuring the grain structure is continuous and optimized throughout the entire component, especially in high-stress areas like the fillet radii of the rod and main journals. This method allows for precise control over counterweight design and mass distribution, enabling the significant weight reduction without sacrificing an iota of strength. For a deep dive into the metallurgical science, refer to this authoritative resource on billet crankshaft engineering principles.

Detailed Specifications & Precision Engineering

Every dimension of the BC5209LW is engineered to exacting tolerances for a perfect fit and optimal performance within the SR20 block. It maintains the standard 91mm stroke, ensuring compatibility with a wide range of piston combinations while providing a known and reliable displacement baseline. The crankpin (rod) journals are precision-machined to the SR20 standard diameter, ready for performance rod bearings. Crucially, the main journals are also machined to the factory specification, allowing for a direct, precision-fit replacement into a properly prepared block. All oil passages are meticulously deburred and chamfered to promote flawless oil flow to the critical bearing surfaces, a detail often overlooked in lesser components. The surface finish on all journals is of racing quality, promoting optimal oil film retention and bearing life.

Performance Benefits: Translating Engineering to Driver Feedback

The theoretical advantages of a lightweight billet crankshaft manifest as tangible improvements on the dyno and the track. The primary benefit is the drastic reduction in rotational mass, which delivers immediate and profound effects.

• Explosive Throttle Response: The reduced inertia of the rotating assembly allows the engine to rev up and down with astonishing speed. Lag is minimized, and the engine feels eager and immediate, translating to faster spool on forced induction applications and sharper response in high-RPM NA builds.
• Increased Power Output: Liberating the engine from the task of spinning a heavy OEM crank reduces parasitic horsepower loss. More of the engine’s combustion energy is delivered to the flywheel, resulting in measurable gains in net power output.
• Enhanced High-RPM Stability: The superior strength and perfect balance of the billet 4340 steel allow the engine to operate smoothly and safely at extreme RPM ranges that would risk failure with a factory or even a forged crank. This is paramount for high-revving, aggressive camshaft profiles.
• Improved Engine Durability: The fatigue resistance of 4340 billet steel far exceeds that of cast nodular iron. It is highly resistant to flex and torsional harmonics, which are the enemies of bearing life and main cap integrity in high-horsepower applications.
• Optimized for Forced Induction & High Compression: Whether facing the immense cylinder pressures of a large-turbo SR20DET or the sharp pulses of a high-compression N/A build, the BC5209LW provides an unshakeable, reliable rotating foundation.

Vehicle Fitment & Critical Installation Notes

Vehicle Fitment: This Brian Crower BC5209LW crankshaft is engineered specifically for the Nissan SR20 engine family. This includes, but is not limited to, the SR20DE and SR20DET variants found in vehicles such as the Nissan 240SX (S13, S14), 200SX, Silvia, Pulsar GTI-R, and Bluebird. It is imperative to verify engine code and internal specifications prior to purchase.

Professional Installation is Non-Negotiable: Installing a performance crankshaft of this caliber is not a backyard operation. It requires a machinist or engine builder of the highest skill. Critical steps must be followed:

• Precise Clearance Checking: Main and rod bearing clearances must be measured meticulously with a micrometer and bore gauge. Never assume clearances are correct.
• Mandatory Balancing: The entire rotating assembly (crankshaft, pistons, pins, rods, and flywheel/flexplate) must be balanced as a unit. The crankshaft alone is neutrally balanced, but the assembly’s balance is critical for longevity.
• Block Preparation: The engine block’s main bearing bores must be align-honed with the main caps torqued to spec to ensure perfect alignment and roundness.
• Fastener Protocol: Always use new, high-quality main cap bolts or studs (ARP recommended) torqued in the correct sequence and to the correct specification.

Technical Specifications Table
