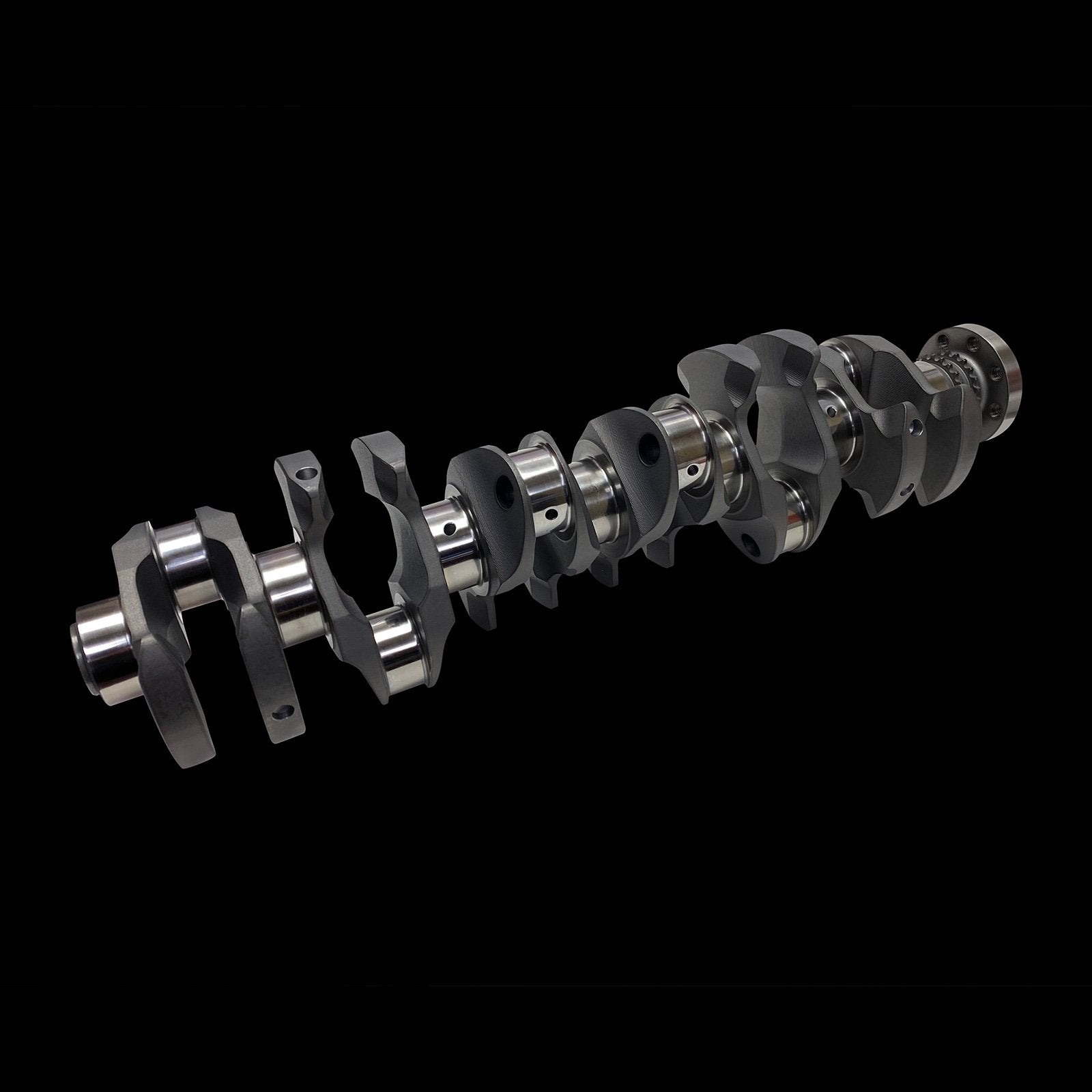

BC5320LW – Toyota B58B30 Crankshaft – 94.6mm Stroke

Introducing the BC5320LW: The Billet Architectural Foundation for the Toyota B58B30

In the realm of high-performance forced-induction engines, the Toyota B58B30 has rapidly cemented its reputation as a modern masterpiece, a platform capable of astonishing power outputs with remarkable resilience. However, to transcend the boundaries of factory engineering and unlock true, reliable horsepower potential, the foundational rotating assembly must be addressed. The BC5320LW Billet Crankshaft from Brian Crower is not merely a replacement part; it is a purpose-built, precision-machined component engineered to be the absolute backbone of a competition-grade or ultra-high-performance B58 build. Retaining the factory 94.6mm stroke for compatibility and drivability, this crankshaft transforms the engine’s core from a potential failure point into its greatest asset, offering unmatched durability, perfect balance, and the structural integrity required for four-digit horsepower aspirations.

Design & Engineering: The Billet Advantage

Unlike a forged crankshaft, which is shaped under immense pressure from a single billet of heated steel, a billet crankshaft is machined from a solid block of pre-hardened, vacuum-degassed 4340 Chromoly steel. This process allows for superior grain structure control and eliminates the potential for internal flaws or inclusions that can be present in forgings. The BC5320LW leverages this method to create a component with exceptional tensile strength and fatigue resistance. Every critical radius is optimized and polished to a mirror finish, drastically reducing stress concentrations that can lead to crack initiation under extreme torsional and bending loads. Furthermore, the billet process permits the design of stronger, more efficient counterweight profiles and oil passage routing, ensuring optimal lubrication to the main and rod journals even under sustained high-RPM operation.

Precision Balancing & Journal Specifications

Every BC5320LW crankshaft is individually balanced to a tolerance exceeding OEM specifications, delivered as a “plug-and-play” internally balanced unit ready for assembly. The main and rod journals are precision-ground and micro-polished to exacting specifications, promoting superior oil film retention and reducing bearing wear. For builders looking to push limits, the crankshaft is designed to accommodate extended studs and larger-diameter main bearings, facilitating the use of reinforced girdles for ultimate bottom-end stabilization. This meticulous attention to detail ensures not just power handling, but also smoother operation and reduced harmonic vibration, contributing to overall engine longevity.

Definitive Benefits of the Brian Crower BC5320LW Crankshaft

• Unmatched Durability: Machined from 4340 Chromoly steel billet, offering the highest possible strength-to-weight ratio and fatigue life for withstanding the tremendous cylinder pressures generated by large turbochargers and aggressive tuning.
• Factory Stroke, Maximum Strength: Maintains the OEM 94.6mm stroke for direct fitment and predictable power characteristics, while providing a massively upgraded safety margin over the factory casting.
• Optimized for Performance: Features polished radii, strategically designed counterweights, and precision-ground journals to minimize stress, reduce friction, and ensure perfect oiling under extreme conditions.
• Precision Balanced: Individually balanced to ultra-fine tolerances for smoother operation, reduced harmonics, and increased bearing and rotating assembly life.
• Competition-Ready Foundation: Enables the safe use of high-lift, long-duration camshafts, high-RPM valvetrains, and massive power adders, forming the essential core for 800+ horsepower street or race applications.

Vehicle Fitment: Application-Specific Engineering

The BC5320LW is engineered specifically for the Toyota/BMW B58B30 engine family. Its precise dimensions and internal balance ensure direct compatibility with factory-style dampers and flywheels/flexplates, simplifying the build process. This crankshaft is the correct upgrade for any vehicle platform utilizing this engine, including but not limited to:

Primary Applications: Toyota Supra A90 (2020+), BMW M340i (G20), BMW X3 M40i (G01), BMW Z4 M40i (G29), and other models equipped with the B58B30 engine code. It is compatible with both standard and “Technical Update” (TU) variants where the core engine architecture remains consistent. Always verify engine code and specific model year requirements prior to purchase. For a deeper technical analysis of the B58 platform’s capabilities and tuning methodologies, consider this resource on the engineering behind Toyota’s B58 engine.

Technical Specifications: BC5320LW

Note: Specifications are subject to verification with the latest manufacturer data. Installation should be performed by a qualified technician using appropriate measuring tools and procedures.
