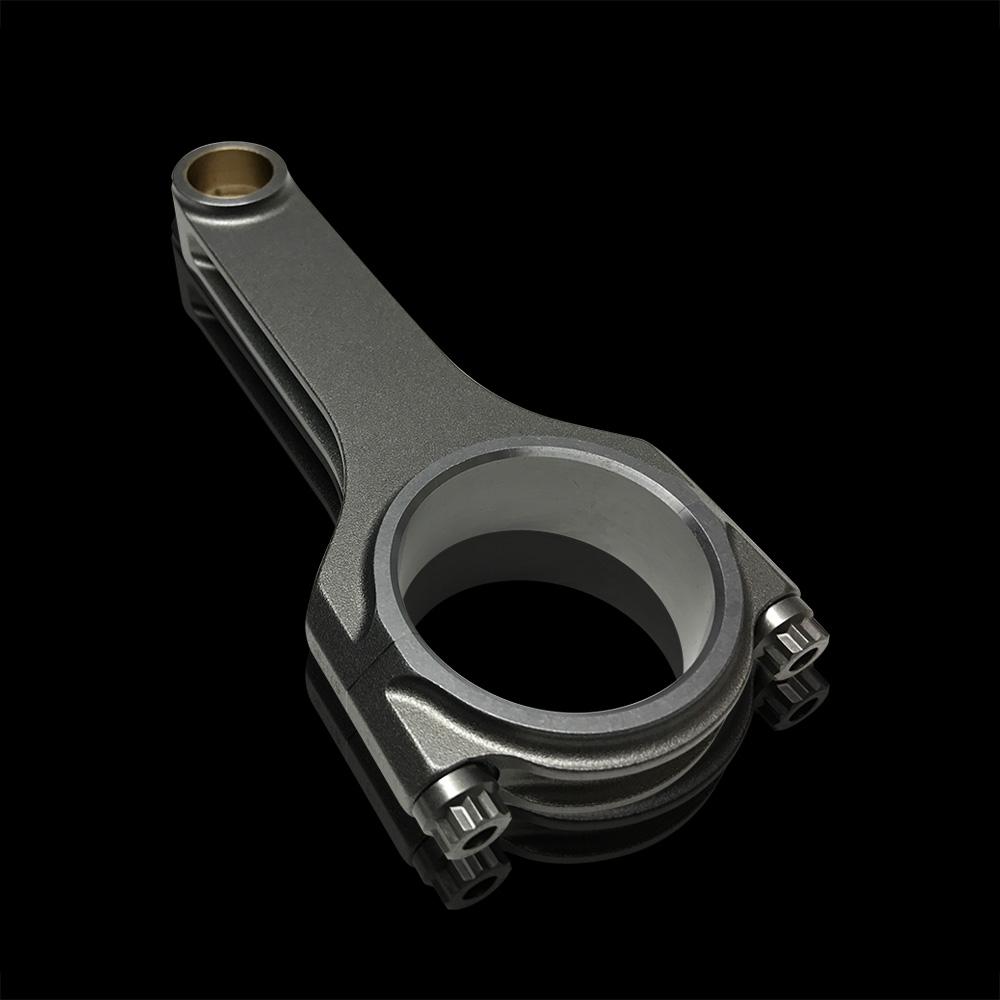

BC6026 – Honda/Acura B18C – ProH2K Connecting Rods w/ARP2000 Fasteners

In the relentless pursuit of rotary horsepower and bulletproof reliability for the legendary Honda B18C, compromise is not an option. The stock connecting rods, while robust for factory applications, become the primary point of failure in high-RPM, high-boost environments. The BC6026 ProH2K Connecting Rod Set from Brian Crower is engineered to eliminate this weakness entirely. Designed as a direct, no-modification-required upgrade, these rods transform the B18C’s rotating assembly into a foundation capable of supporting well over 500+ horsepower. Utilizing premium AQQ H11 tool steel forgings, precision CNC machining, and race-proven ARP2000 fasteners, the BC6026 set represents the definitive solution for builders who demand absolute precision, unyielding strength, and track-proven durability. This is not merely a component swap; it is a strategic upgrade that redefines the mechanical limits of your engine.

Engineering the Unbreakable Link: Material & Manufacturing

The core philosophy behind the ProH2K series is to provide professional-level strength without the prohibitive cost of boutique motorsport parts. This begins with the material selection. BC6026 rods are forged from H11 tool steel, a chromium-based alloy renowned for its exceptional toughness and high-temperature strength. Unlike standard 4340 steel, H11 maintains its tensile strength and resists fatigue cracking under extreme thermal cycling, making it the material of choice for Top Fuel dragsters and Pro Mod engines. Each forging is then subjected to a meticulous CNC machining process that ensures not just dimensional accuracy, but perfect grain flow alignment for optimal stress distribution. Critical areas, such as the beam profile and the pin/bore junctions, are contoured using finite element analysis (FEA) data to eliminate stress risers—the microscopic points where cracks initiate under load.

Post-machining, each rod undergoes a multi-stage finishing process. The beams are shot peened, a cold-working process that bombards the surface with small media to induce compressive stresses, dramatically increasing fatigue life. The final step is a proprietary HE (High Energy) coating on the pin ends. This ultra-slick, molybdenum-disulfide-based coating reduces friction at the critical piston pin-to-rod interface, minimizes scuffing during initial start-up, and aids in heat dissipation. The result is a connecting rod with a safety factor far exceeding that of the factory B18C rod, engineered to handle the punishing demands of sustained high-RPM operation and aggressive forced induction.

ARP2000 Fasteners: The Critical Interface

The strength of a connecting rod assembly is only as good as its weakest point, which is invariably the rod bolt. Brian Crower eliminates this variable by including genuine ARP2000 Wave-Loc fasteners as a standard feature. These are not generic hardware; they are aerospace-grade, 200,000 psi tensile strength cap screws engineered specifically for high-performance applications. The unique “wave-loc” underhead design creates a radial clamping force that virtually eliminates bore distortion during torquing, ensuring perfect big-end roundness for optimal bearing crush and oil clearance. Proper installation using the supplied ARP Ultra-Torque lubricant and the specified torque-plus-angle procedure guarantees a clamp load that will not relax under extreme cylinder pressures, preventing the catastrophic cap walk or bolt stretch that destroys engines. This inclusion elevates the BC6026 package from a simple rod upgrade to a complete, ready-to-install rotating assembly solution.

Performance Benefits & Application Scope

Installing BC6026 ProH2K rods fundamentally changes the performance envelope of your Honda B18C or Acura Integra Type R (DC2) engine. The primary benefit is absolute peace of mind. Whether you’re building a 9000+RPM all-motor beast, a 500+ horsepower turbocharged street monster, or a road-race engine that sees sustained high load, the rotating assembly is no longer your concern. The precision weight-matching (±2 grams per set) contributes to smoother operation, reduced harmonic vibration, and less stress on the crankshaft main bearings, potentially extending the life of your entire bottom end.

• Eliminates the Factory Rod’s RPM/HP Ceiling: Designed for applications exceeding 500+ HP and 9000+ RPM, removing the stock rod as the limiting factor.
• Forged H11 Tool Steel Construction: Provides superior fatigue strength and thermal stability compared to standard 4340 forgings, essential for turbo and nitrous applications.
• Precision CNC Machined & Weight Matched: Ensures perfect balance and consistent cylinder pressures for smoother power delivery and reduced vibration.
• Includes ARP2000 Wave-Loc Fasteners: Race-proven rod bolts guarantee clamp load integrity under extreme cylinder pressure, preventing catastrophic failure.
• Shot Peened & HE Coated: Enhanced surface finish increases fatigue life and reduces friction at the piston pin bore for improved durability and efficiency.
• Direct OEM Replacement Fitment: Drops directly into the B18C block with no machining required, using standard Honda bearing sizes.

The application of these rods spans the entire spectrum of B18C performance. For more detailed reading on the metallurgical advantages of different rod materials, consider this expert analysis on connecting rod materials and design from a leading technical publication.

Vehicle Fitment: Precision for the B-Series Legend

The BC6026 set is engineered specifically for the 1.8L DOHC VTEC B18C engine platform. Its precision ensures a perfect fit within the standard B18C crankcase geometry, utilizing OEM-spec bearing sizes for a hassle-free build. Correct installation is paramount and always requires precision measuring of bearing clearances and a professional assembly environment.

Primary Applications:

• Honda: Integra Type R (DC2, 1997-2001), Civic Si (EM1, 1999-2000 with B18C1 swap)
• Acura: Integra GS-R (DC2, 1994-2001 – B18C1 engine)

Note on Compatibility: These rods are designed for the B18C1 (USDM GS-R) and B18C5 (Type R) engines with their specific rod length and pin diameter. They are not compatible with non-VTEC B18B rods or other B-series variants like the B16 or B20 without significant additional modifications and verification of critical dimensions (center-to-center length, pin diameter, big-end width). Always confirm your engine’s specific rod specifications before purchase.

Technical Specifications: The BC6026 Blueprint

For builders, these specifications confirm that the BC6026 is a true performance-centric component that adheres to the original engine’s architecture while massively upgrading its core strength. The inclusion of the ARP2000 fasteners and the use of H11 steel place it in a category above standard “upgrade” rods, making it the rational choice for any serious B18C performance build where failure is not an option.
