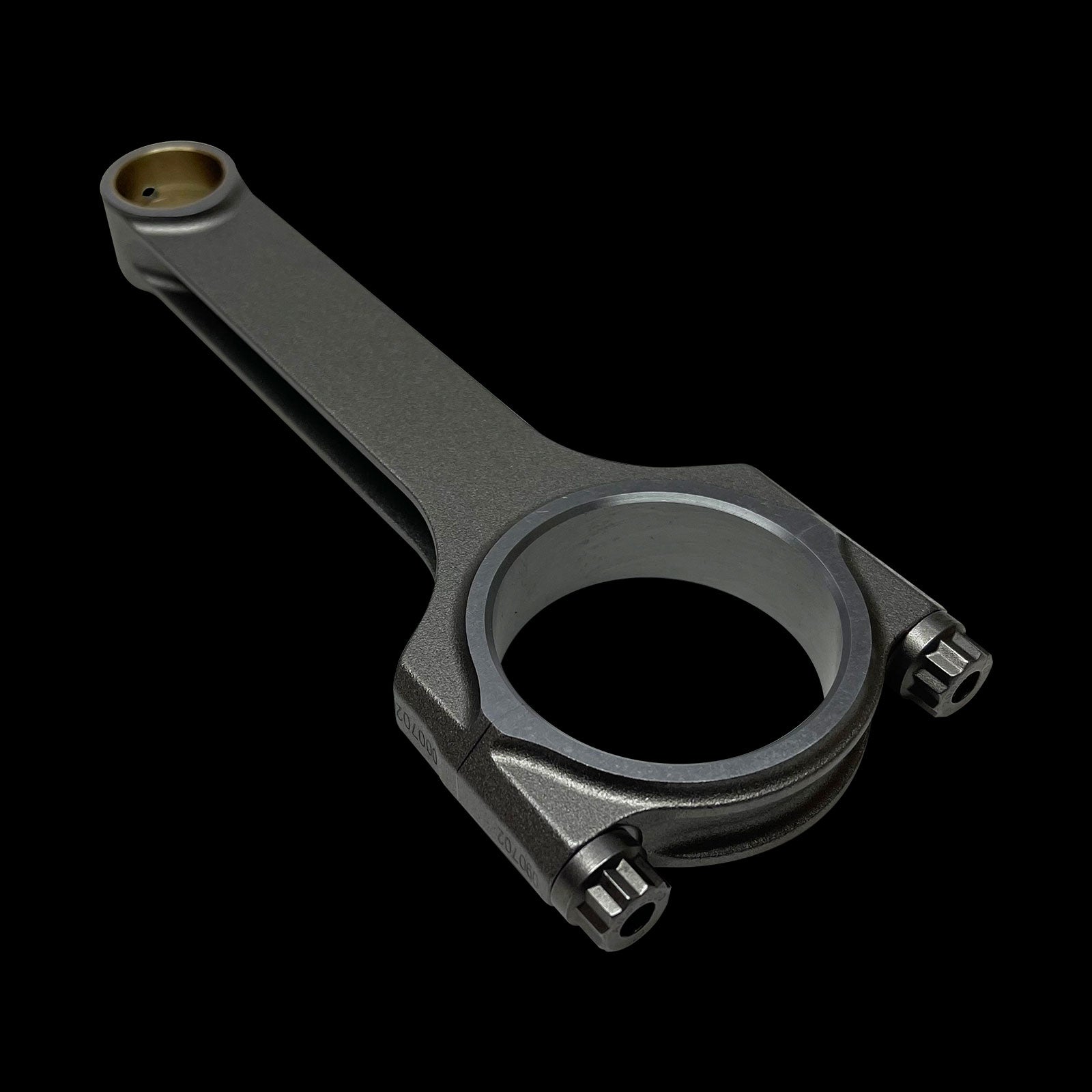

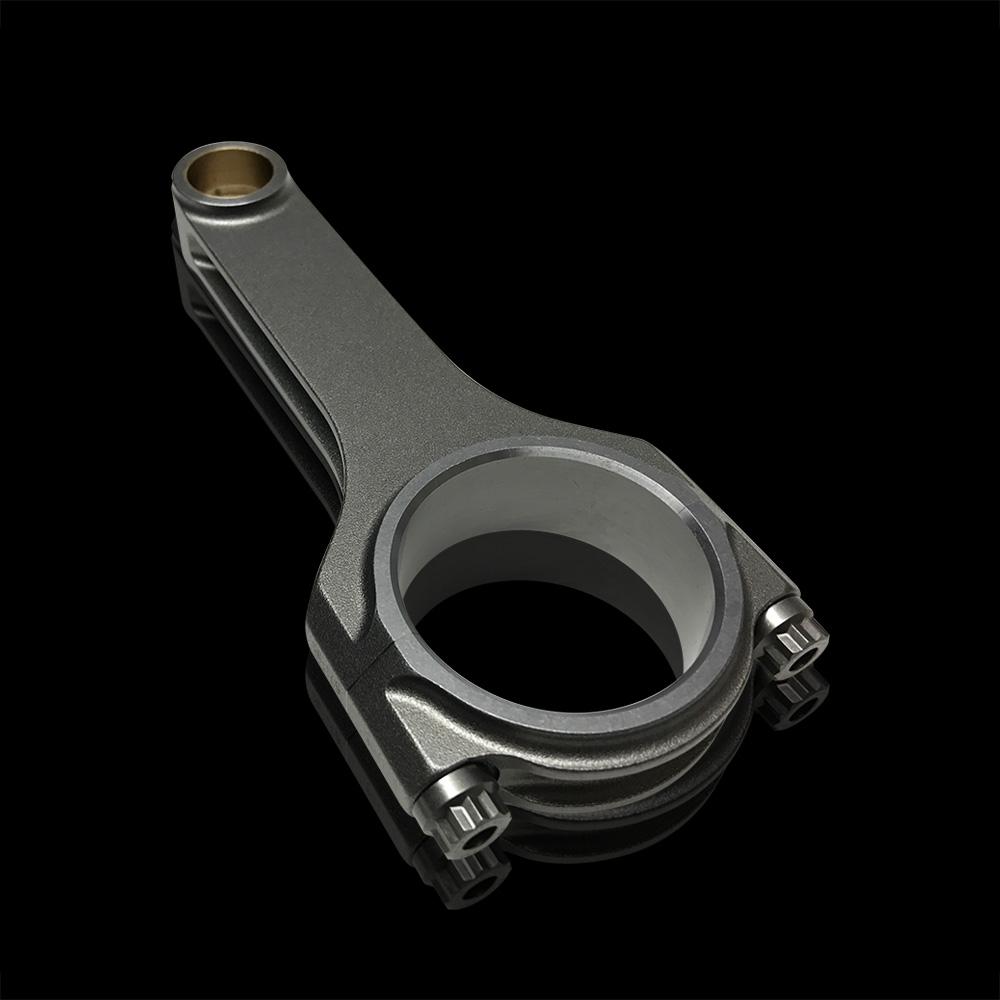

BC6045 – Honda/Acura K24 – ProH625+ Connecting Rods w/ARP Custom Age 625+ Fasteners

For the serious builder seeking to extract maximum durability and power from the venerable Honda/Acura K-series platform, the foundation of the rotating assembly is non-negotiable. Introducing the Brian Crower BC6045 ProH625+ Connecting Rod set for K24 engines, a component engineered not merely as an upgrade but as a definitive solution for high-RPM, high-compression, and forced-induction applications. Representing the pinnacle of aftermarket rod technology, the BC6045 integrates proprietary ProH625+ vacuum-remelt alloy steel with the industry-benchmark strength of ARP Custom Age 625+ fasteners. This synergy creates a connecting rod assembly that redefines the threshold of reliability, offering a safety margin far beyond that of factory or even conventional aftermarket H-beam rods. Whether you’re building an all-motor K24 monster pushing the limits of compression or a turbocharged drag strip weapon, this is the rod set that instills absolute confidence in the heart of your engine.

Metallurgy & Design: The ProH625+ Advantage

The core of the BC6045’s superiority lies in its material science. Brian Crower’s ProH625+ is a proprietary, vacuum-remelt, chromoly steel alloy subjected to an exacting thermal cycling process. This specialized treatment refines the metallic grain structure to an exceptional degree, eliminating impurities and micro-voids that can become stress concentration points under extreme cyclical loading. The result is a material with a tensile strength exceeding 220,000 PSI and a fatigue endurance limit that dramatically outpaces standard 4340 or 300M steels. The design follows a precision-machined, true H-beam profile, optimized for the specific stroke and deck height parameters of the K24 block. This geometry provides an optimal balance of stiffness and weight, minimizing flex at high piston speeds while controlling reciprocating mass. Each rod is weight-matched to a tolerance of ±1 gram, a critical step for achieving smooth engine operation and eliminating destructive harmonic imbalances at elevated RPM.

ARP Custom Age 625+ Fasteners: The Gold Standard in Clamp Load

A connecting rod is only as strong as its weakest point—typically, the bolts. Brian Crower eliminates this vulnerability by partnering with Automotive Racing Products (ARP) to include their Custom Age 625+ rod bolts and nuts as a standard feature. This is a critical differentiator. ARP 625+ fasteners are forged from a nickel-chromium alloy and age-hardened to achieve a tensile strength of 260,000-280,000 PSI, offering approximately 30% greater strength than even premium ARP 2000 series fasteners. This immense strength allows for a higher, more consistent clamp load on the rod cap. A secure, uniform clamp is paramount; it prevents cap walk and fretting under extreme cylinder pressures, ensuring the rod bearings remain perfectly aligned and the big end bore maintains its roundness. For builders pursuing boost levels beyond 40 psi or stratospheric RPM, the inclusion of these fasteners is not an option—it is an essential engineering requirement. For a deeper technical dive into fastener technology in performance engines, consider this resource on studs, bolts, and clamp load fundamentals.

Precision Machining & Vehicle Fitment

Every BC6045 rod is CNC-machined from a solid billet of ProH625+ steel, ensuring dimensional accuracy and surface finish consistency that far surpasses cast or forged counterparts. Critical areas like the beam profile, pin bore, and big end are finished with extreme precision. The rods are designed as a direct, drop-in replacement for the OEM Honda/Acura K24 connecting rods, requiring no special machining or clearancing in a standard-deck block when used with appropriate pistons. They are packaged as a matched set of four rods with ARP 625+ fasteners pre-installed (torque to spec during assembly).

Vehicle Fitment: This set is engineered specifically for the Honda/Acura 2.4L K24 series engines. Direct application includes, but is not limited to, the following vehicles and engine codes: Honda Accord (2003-2007), Honda CR-V (2007-2011), Honda Element (2003-2011), Acura TSX (2004-2008), and the acclaimed K24A2/A8/Z7/Z3 blocks popular in swap and race applications. Always verify engine code and specific build parameters for compatibility.

Performance Benefits & Application Spectrum

The Brian Crower BC6045 ProH625+ rod set translates advanced engineering into tangible, on-track or on-street advantages. This is the component that allows you to safely and reliably capitalize on the modifications made elsewhere in your engine.

• Unmatched Fatigue Strength: The ProH625+ alloy provides a fatigue life multiple times greater than standard materials, essential for enduring thousands of high-stress cycles in race or high-power street duty.
• Extreme Boost & RPM Capability: The combined strength of the H-beam design and ARP 625+ fasteners creates an assembly validated for sustained use in applications exceeding 900+ horsepower and 9,000+ RPM.
• Enhanced Bearing & Cylinder Wall Life: The exceptional rigidity minimizes rod flex, promoting consistent oil film on bearings and stabilizing piston skirt alignment, which reduces cylinder wall wear.
• Optimal Weight-to-Strength Ratio: Precision machining removes unnecessary mass without compromising integrity, aiding in throttle response and reducing stress on the crankshaft.
• Complete Kit Readiness: Supplied as a fully assembled, weight-matched set with the world’s best fasteners, saving time and ensuring correct component pairing right out of the box.

Technical Specifications

In the hierarchy of performance engine components, few carry the consequence of the connecting rod. The BC6045 ProH625+ Connecting Rods with ARP Custom Age 625+ Fasteners represent a calculated investment in absolute bottom-end integrity. This is not a part chosen for marginal gains; it is the cornerstone of a build designed to withstand the most severe operating conditions without compromise. For the K24 enthusiast targeting a new echelon of power and reliability, the specification process ends here.
