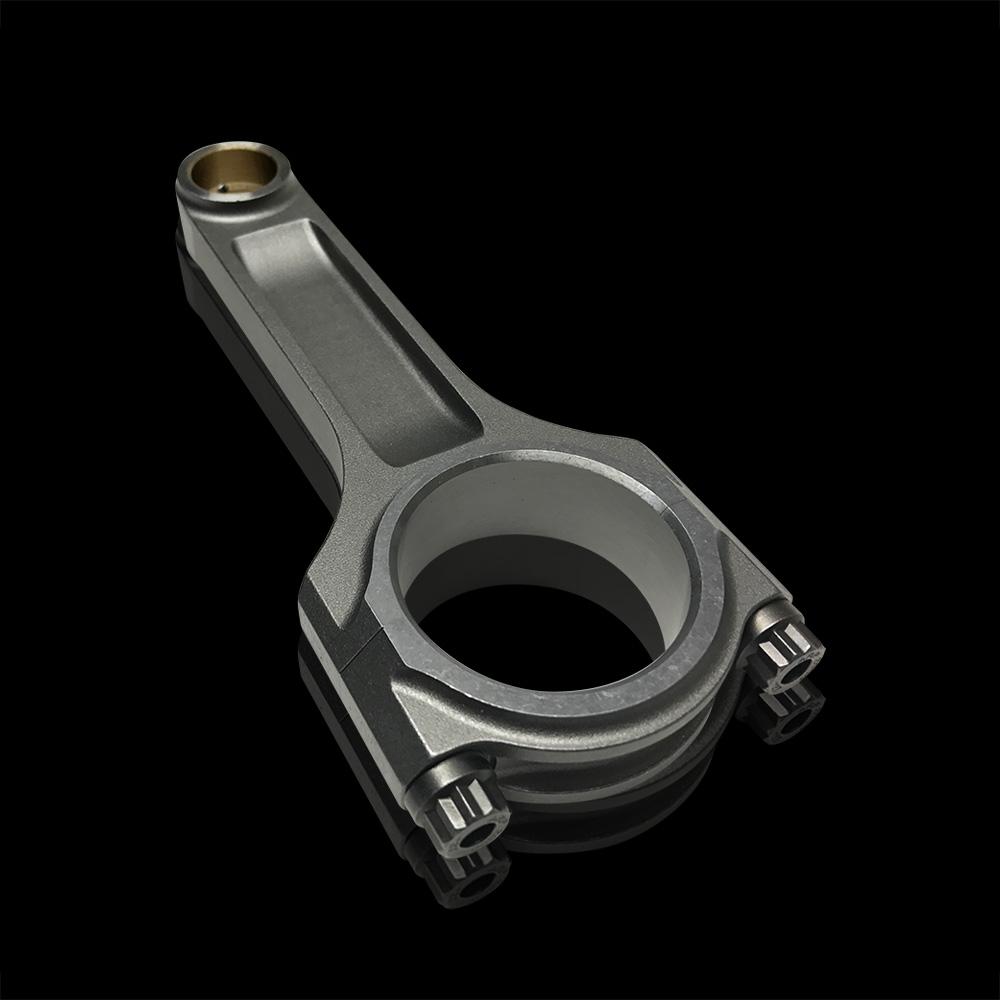

BC6106 – Mitsubishi/DSM 4G63 2nd Gen/7 Bolt – I-Beam Extreme w/ARP Custom Age 625+ Fasteners

In the relentless pursuit of power and reliability within the Mitsubishi/DSM 4G63 platform, the foundation of your rotating assembly is non-negotiable. For engines destined to endure the extreme cylinder pressures of aggressive turbocharging, high-RPM operation, and sustained track abuse, the connecting rod is the critical pivot point between explosive power and catastrophic failure. The BC6106 I-Beam Extreme Connecting Rod Set from Brian Crower represents the culmination of advanced metallurgy, precision aerospace manufacturing, and motorsport-proven design. Engineered specifically for the 2nd Generation 7-bolt 4G63 engine, these rods are built not merely to withstand power but to define the new standard for durability in high-performance and competition applications. Featuring the legendary ARP Custom Age 625+® fasteners as standard, this set delivers a complete, no-compromise solution for builders targeting 800+ horsepower thresholds with an uncompromising focus on safety margin and longevity.

Engineering Philosophy: The I-Beam Extreme Design

Brian Crower’s I-Beam Extreme design is not a simple evolution of a factory-style rod; it is a purpose-built component forged from a specific philosophy of strength-efficiency. The I-beam profile itself is a timeless architectural and engineering principle, offering an optimal balance of material placement, weight, and resistance to buckling under compressive and tensile loads. The BC6106 rods leverage this with a significantly beefier cross-section compared to OEM or even standard aftermarket H-beam designs. The critical areas—the beam, the pin end, and the cap—are machined with substantial material to counteract the immense forces generated during the power stroke and the violent deceleration during exhaust valve opening. This design prioritizes ultimate yield strength and fatigue life over absolute minimum weight, making it the definitive choice for applications where the engine will see repeated, severe stress cycles. The machining process ensures perfect alignment and balance, reducing harmonic vibrations that can lead to bearing failure and crankshaft damage at elevated RPM.

Material Science & Manufacturing Precision

The raw material is the soul of any performance component. BC6106 rods are precision forged from a premium grade of 4340 chromoly steel. This alloy, renowned in aerospace and motorsport, provides an exceptional combination of tensile strength, ductility, and—most critically—fatigue resistance. The forging process aligns the grain structure of the metal to follow the contours of the rod, dramatically increasing its strength over a machined billet. Following forging, each rod undergoes a rigorous multi-stage heat-treating process, including thermal cycling and shot peening. This treatment relieves internal stresses, sets the desired core hardness for durability, and creates a compressively stressed surface layer that drastically inhibits the initiation and propagation of fatigue cracks. The final machining is performed on state-of-the-art CNC centers, guaranteeing dimensional tolerances within ±0.0002″ for critical bore diameters (pin and crank) and overall center-to-center length. This level of precision ensures perfect bearing crush, optimal oil clearance, and consistent cylinder-to-cylinder compression height.

ARP Custom Age 625+ Fasteners: The Gold Standard

Even the world’s strongest connecting rod is only as reliable as its fasteners. Brian Crower eliminates any weak link by including ARP Custom Age 625+® rod bolts as a standard, integral component of the BC6106 set. These are not merely “ARP-style” bolts; they are the genuine article, manufactured from ARP’s proprietary 625+ alloy. This material offers a significant step up in tensile and yield strength over the already-excellent 8740 chromoly and even 2000-series alloys commonly used in other kits. The “Custom Age” process refers to a precise, time-intensive aging treatment that stabilizes the metal’s structure, providing unparalleled resistance to stress relaxation and fatigue under extreme heat and load. The result is a fastener that maintains its clamp load indefinitely, preventing cap walk and fretting that can destroy rod and crank bearings. For the 4G63 builder, this inclusion means one less critical part to source and the absolute confidence that the fastener package matches the elite capability of the rod itself.

• Unmatched Tensile Strength: Designed and proven for horsepower levels exceeding 800-1000+ HP in 4G63 applications, providing a substantial safety margin.
• Superior Fatigue Life: Precision forging and heat-treating processes combat metal fatigue, the primary killer of connecting rods in high-stress environments.
• Absolute Dimensional Consistency: CNC machining guarantees perfect bearing fitment and rod balance, crucial for high-RPM stability and engine longevity.
• Complete, No-Compromise Kit: Includes ready-to-install rods with industry-leading ARP 625+ fasteners pre-installed, torqued, and honed to final size.
• Optimal Design for Boosted Applications: The I-Beam Extreme profile is specifically engineered to resist the buckling forces endemic to high-boost, high-torque turbocharged engines.
• Direct OEM Replacement: Maintains stock center-to-center length and pin diameter for use with standard stroke crankshafts and most pistons, simplifying the build process.

Vehicle Fitment & Application Notes

Primary Fitment: The BC6106 set is engineered specifically for the 2nd Generation (7-bolt) Mitsubishi/DSM 4G63 engine. This critical distinction must be observed, as the 6-bolt and 7-bolt platforms have different rod journal diameters and overall dimensions.

Specific Vehicle Applications Include:

• 1992-1999 Mitsubishi Eclipse GS-T, GSX
• 1992-1999 Eagle Talon TSi AWD, TSi FWD
• 1992-1994 Plymouth Laser RS Turbo AWD
• 1992-1999 Mitsubishi Galant VR-4
• 1994-1998 Mitsubishi Lancer Evolution III, IV, V, VI (7-bolt models; verify engine code)
• Various other vehicles and swaps utilizing the 7-bolt 4G63 powerplant.

Important Builder Notes: These rods are designed for use with standard 2.0L stroke crankshafts (88mm stroke). Always verify critical clearances (rod side clearance, bearing oil clearance) during assembly. The rods are supplied with the ARP fasteners installed and the big end honed to final size; do not disassemble unless absolutely necessary for balancing. For a deeper technical dive into maximizing the 4G63 platform, consider reading about blueprinting techniques for the Mitsubishi 4G63 engine.

Technical Specifications Table
