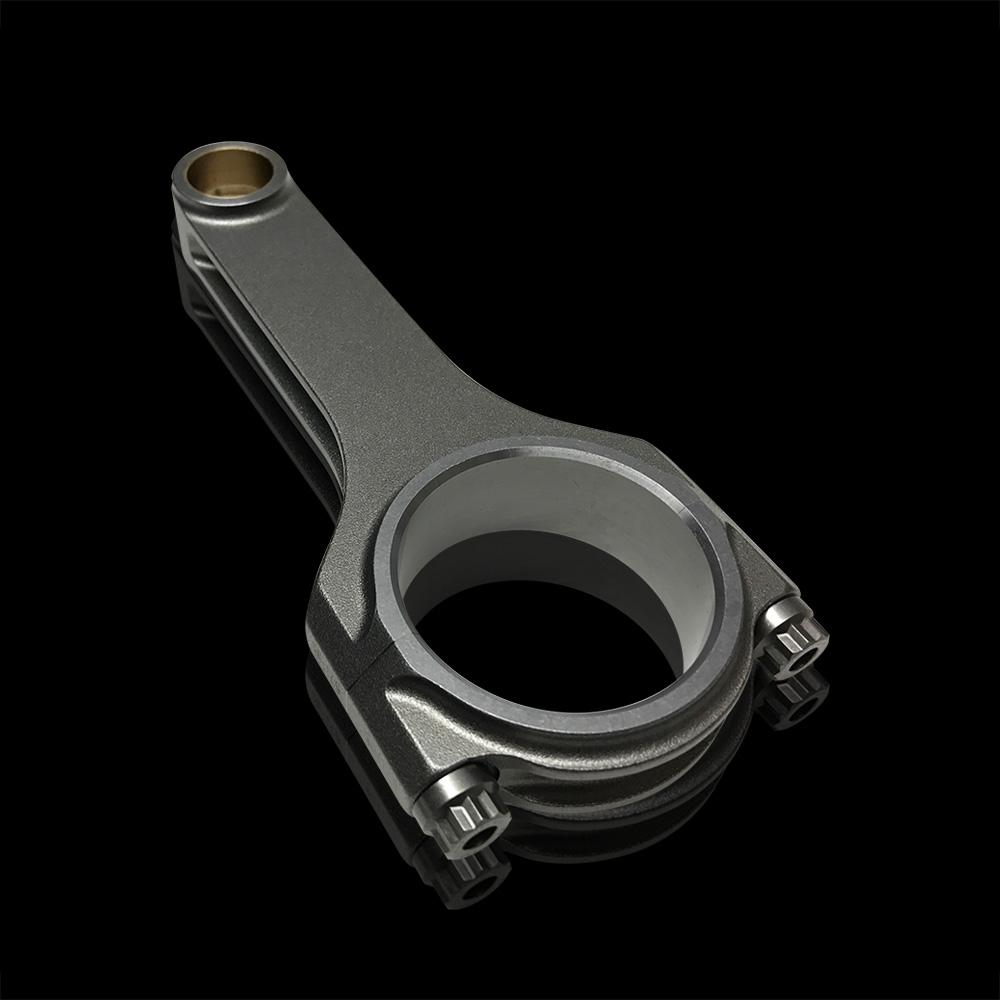

BC6149 – Mitsubishi 6G72 – ProH2K Connecting Rods w/ ARP2000 Fasteners

For the dedicated builder seeking to extract maximum durability and power from the Mitsubishi 6G72 platform, the connecting rod is a critical pivot point between potential and failure. The BC6149 ProH2K Connecting Rod set from Brian Crower represents a calculated evolution beyond factory components and generic aftermarket options. Engineered specifically for the 6G72’s unique stroke and cylinder pressure dynamics, these rods transform the engine’s rotating assembly from a potential liability into a foundational strength. This isn’t merely a replacement part; it’s a precision-forged instrument that redefines the engine’s mechanical integrity, enabling it to withstand the immense stresses of forced induction, high-RPM operation, and sustained high-output duty cycles that would instantly destroy or deform OEM-style rods. The inclusion of premium ARP2000 fasteners as a standard specification underscores a commitment to total system reliability, addressing the most common point of rod assembly failure before it can occur.

Engineering Analysis: The ProH2K Design Philosophy

The “ProH2K” designation signifies more than a model name; it encapsulates a specific manufacturing and design ethos aimed at the 2000+ horsepower threshold. Unlike generic 4340 steel rods, the ProH2K series utilizes a proprietary vacuum-arc remelted (VAR) 4340 steel alloy. The VAR process drastically reduces inclusions and gaseous impurities within the steel billet, resulting in a more homogeneous grain structure. This translates directly to a higher fatigue life and greater consistent strength rod-to-rod. The rods are CNC-machined from a premium-grade steel forging, not a casting. This method ensures the metal’s grain flow follows the rod’s contoured shape, enhancing its natural resistance to shock loading and cyclical stress—a critical factor in high-RPM, high-cylinder-pressure environments common in built 6G72 applications for racing or extreme street performance.

Material Science and Fastener Integration

The choice of ARP2000 fasteners is a non-negotiable aspect of this system’s performance. The rod cap is only as secure as the bolts clamping it. ARP2000 alloy fasteners are manufactured from a modified 8740 chrome-molybdenum steel, heat-treated to achieve a tensile strength exceeding 220,000 psi. Their rolled threads are superior to cut threads, offering greater fatigue resistance and more precise clamping load. For the 6G72 builder, this means achieving and maintaining a more accurate rod bearing crush fit and big-end bore circularity under extreme operating temperatures and loads. This precision directly influences oil film stability at the rod bearing, reducing the risk of spun bearings and associated catastrophic failure. For further technical reading on fastener technology and its impact on engine assembly, refer to this resource on engine builder fastener principles.

Performance Benefits and Application Scope

Installing the BC6149 ProH2K rods fundamentally upgrades the 6G72’s long-block capability. They are not solely for all-out race engines; serious street builds targeting reliable power well beyond factory limits will find these rods indispensable. The primary performance translation is in the engine’s newfound ability to manage detonation and cylinder pressure spikes without permanent deformation, a common failure mode for stock rods in modified applications.

• Unmatched Tensile and Yield Strength: The VAR 4340 material provides a significant safety margin over factory rods, allowing for aggressive tuning, higher boost levels, and nitrous oxide use.
• Optimized Weight and Balance: Each rod is weight-matched as a set to extremely tight tolerances (<1 gram), minimizing destructive harmonic vibrations and promoting smoother high-RPM operation.
• Precision Machining for Optimal Oil Control: CNC-machined profiles and shot-peened surfaces ensure consistent oil shedding and reduce stress risers, enhancing fatigue life.
• Built-In Safety for Forced Induction: The design’s core strength directly addresses the increased rod loading from turbocharging or supercharging the 6G72, preventing rod stretch and bend.
• Foundation for Future Power Gains: By solidifying the bottom end, these rods allow you to confidently pursue other performance mods without the constant concern of a rod-related engine failure.

Technical Specifications and Dimensions

Correct installation requires precise measurement and understanding of the component’s specifications. The BC6149 rods are designed as a direct-fit replacement for the factory 6G72 connecting rods, maintaining the stock center-to-center length to preserve engine displacement and compression geometry. However, their enhanced dimensions and tolerances are where the engineering excellence is apparent.

Vehicle Fitment and Installation Notes

The BC6149 ProH2K Connecting Rods are engineered for the Mitsubishi 6G72 DOHC engine family. This includes a wide range of performance vehicles where this engine was the heart of the platform. Proper installation is paramount and should only be undertaken by a qualified machinist or engine builder. Critical steps include having the big end bore precision honed to final size with the specific rod bearings you intend to use installed, verifying pin fit at the small end, and torquing the ARP2000 fasteners with the correct lubricant (typically ARP Ultra-Torque) to the manufacturer’s specified value in a multi-stage process.

Primary Vehicle Applications:

• Mitsubishi 3000GT VR-4 (All Years)
• Dodge Stealth R/T Turbo (All Years)
• Mitsubishi GTO (All Years)
• Various later-model Mitsubishi vehicles equipped with the 6G72 DOHC engine.

Critical Installation Reminder: These are performance components that require a full, professional engine build context. Their installation must be accompanied by precision crankshaft machining, balancing of the entire rotating assembly (crank, rods, pistons, damper, flywheel/flexplate), and the use of high-quality clearance bearings. Never install performance connecting rods into a worn or out-of-spec engine block without a complete machine shop blueprinting process.

The Bottom Line: Investment in Reliability

In the hierarchy of engine building, the connecting rod is not a component for compromise. The BC6149 ProH2K Connecting Rod set with ARP2000 fasteners provides a bulletproof solution for the Mitsubishi 6G72. It represents a strategic investment that protects the significantly larger investment in forced induction systems, cylinder head work, and precision machining elsewhere in the engine. By choosing this component, you are not just buying a part; you are purchasing engineering confidence—the assurance that your engine’s lower end is prepared for the power you demand, making it the definitive choice for builders who measure success in both peak horsepower and long-term durability.
