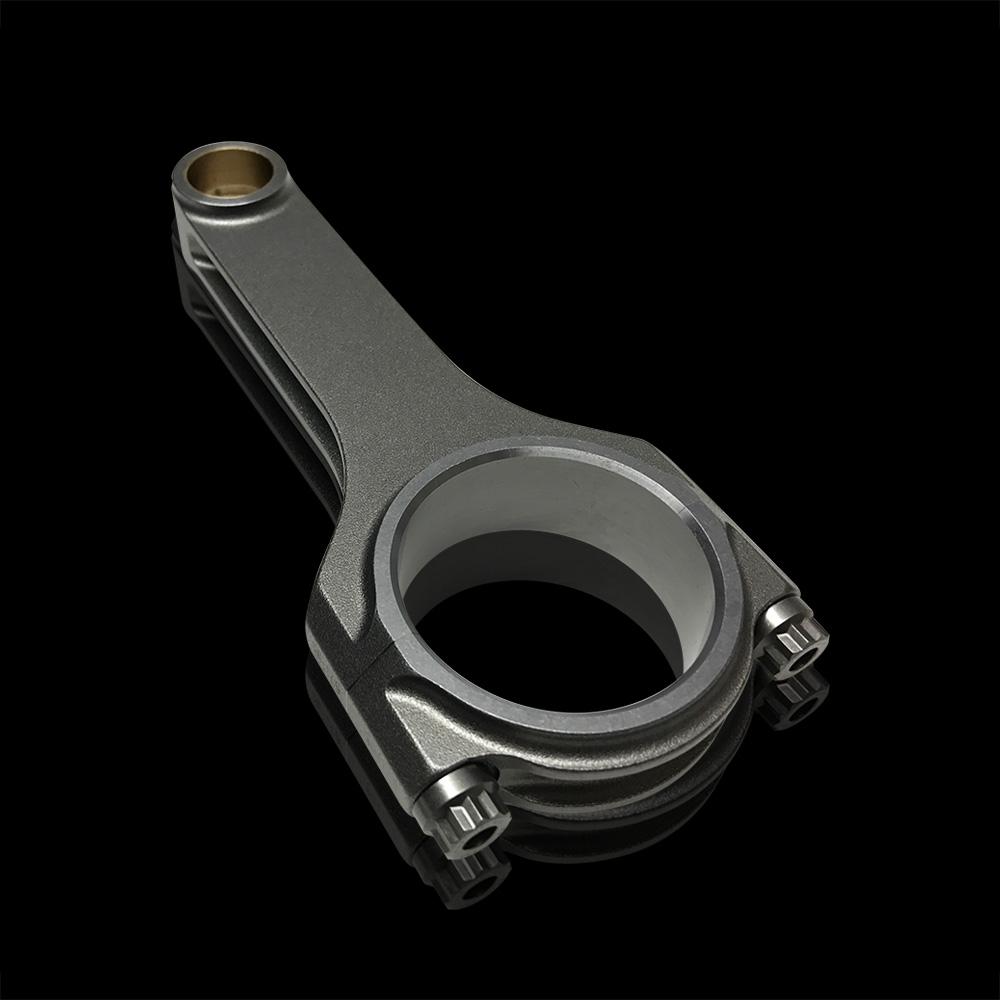

BC6165 – Dodge SRT-4/PT Cruiser – ProHD Series Connecting Rods w/ARP2000 7/16″ Fasteners

BC6165 ProHD Series Connecting Rods: The Architectural Spine for Forced Induction Dominance

In the realm of high-performance turbocharged engines, the connecting rod is not merely a component; it is the critical structural member linking piston motion to crankshaft rotation, enduring immense compressive, tensile, and bending loads. For the Dodge SRT-4 and turbocharged PT Cruiser platforms, the Brian Crower BC6165 ProHD Series Connecting Rod set represents a fundamental re-engineering of this vital link. Engineered for the extreme cylinder pressures of aggressively tuned forced induction and high-RPM operation, this set transcends a simple upgrade—it is an investment in absolute bottom-end integrity. Utilizing a proprietary 4340 chromoly steel forging, precision CNC machining, and fortified with legendary ARP 2000 7/16″ fasteners, the BC6165 rods are designed to transform your 2.4L DOHC engine from a potential liability into a bastion of reliability under power.

Core Engineering: The ProHD Forged 4340 Chromoly Advantage

The foundation of the BC6165’s performance lies in its material science and manufacturing pedigree. Brian Crower selects premium vacuum-degassed 4340 chromoly steel for its exceptional strength-to-weight ratio and superior fatigue resistance compared to standard 4140 or powdered metal sintered rods. The “ProHD” designation signifies a specific, high-density forging process. This process aligns the steel’s grain structure tightly along the rod’s contours, dramatically increasing its density and ultimate tensile strength. Each blank is then subjected to a precise thermal-cycling treatment to normalize the internal stresses from forging before the final CNC machining. This results in a rod with a verified tensile strength exceeding 220,000 PSI, providing an immense safety margin against the bending forces experienced under high boost and detonation. The final machining is not merely about achieving dimensions but about achieving perfect structural symmetry and balance. Both the big end and small end are honed to microscopic tolerances, and each rod is weight-matched to within a 1-gram tolerance for the entire set, a critical factor in eliminating destructive harmonics at elevated engine speeds.

Fastener Integrity: The ARP 2000 7/16″ Capscrew Standard

The most meticulously forged rod is only as strong as its weakest point: the fasteners securing the rod cap. Brian Crower eliminates this variable by including ARP 2000 alloy capscrews as standard equipment. The ARP 2000 material is a unique, strain-hardened nickel-chromium-moly alloy that achieves an unparalleled clamp load yield strength of 220,000 PSI, creating a perfect strength synergy with the ProHD rod body. The 7/16″ diameter provides a significantly larger clamping cross-section than stock or lesser fasteners, resisting the cyclic tensile loads that cause fastener stretch and eventual cap fretting. Crucially, these fasteners are designed for precise, repeatable installation. They utilize ARP’s proprietary Ultra-Torque® lubricant, which ensures accurate clamp load is achieved at a specified torque value, eliminating the guesswork and inconsistency of used motor oil or generic lubricants. This fastener system is the industry benchmark, trusted by top engine builders for its role in maintaining critical bearing clearances under extreme loads. For an in-depth technical analysis of fastener torque and clamp load, refer to this foundational article from ARP’s technical library.

Definitive Performance Benefits of the BC6165 Rod Set

• Uncompromising Forced Induction Durability: Built to withstand the sustained 500+ horsepower threshold and the transient spike loads associated with high-boost, high-torque turbo applications common in SRT-4 tuning.
• Extended High-RPM Capability: The weight-matched, balanced design and immense strength profile allow the engine to safely operate at RPM levels far beyond the stock redline, enabling more aggressive cam profiles and turbo spool characteristics.
• Enhanced Bearing Stability & Oil Film Control: The rigid ProHD structure and ARP 2000 fasteners minimize big-end bore distortion, maintaining perfect roundness under load. This ensures consistent oil film between the rod bearing and crankshaft journal, a primary factor in preventing spun bearings.
• Direct, Precision Fitment: With a center-to-center length of 5.945 inches, these rods are a direct replacement for the OEM components, requiring no custom pistons or crankshaft machining for installation, thereby preserving correct engine geometry and compression height.
• Strategic Weight Reduction without Sacrifice: Through advanced design and machining, the ProHD rod achieves a robust yet lightweight profile, reducing reciprocating mass compared to a stock rod. This translates to decreased stress on the crankshaft and faster engine acceleration.

Vehicle Fitment: Precision Application

The BC6165 ProHD Connecting Rod set is engineered specifically for the Chrysler 2.4L DOHC inline-4 engine as used in the following applications. Ensure your engine’s displacement and cylinder head configuration match before purchase.

• Dodge Neon SRT-4 (2003-2005)
• Chrysler PT Cruiser Turbo (GT & Limited models, 2003-2007)
• Chrysler PT Cruiser (2003-2010) – for performance engine builds

Note: While fitting various 2.4L engines, performance is optimized for turbocharged applications. Verification of wrist pin diameter and crank journal dimensions against your specific engine build is always recommended.
