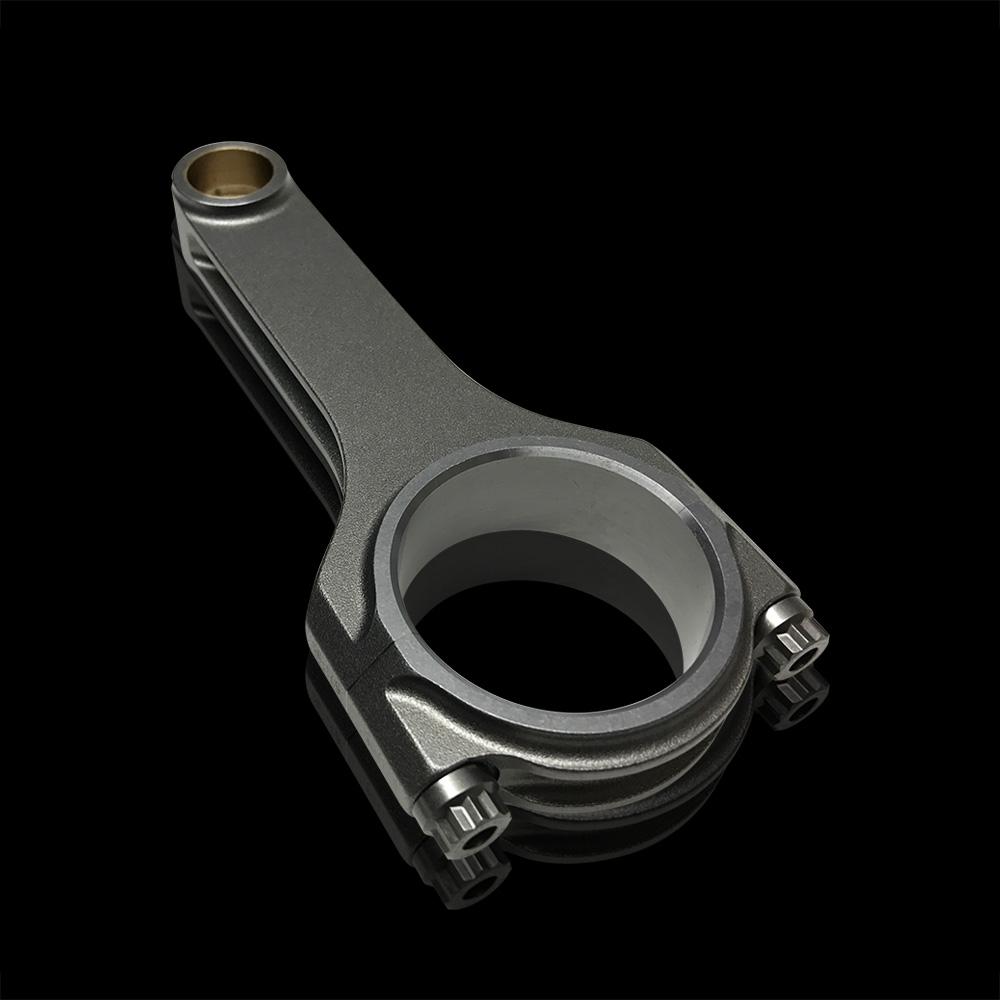

BC6318 – Toyota 1JZGTE – ProH625+ Connecting Rods w/ARP Custom Age 625+ Fasteners

In the realm of high-performance engine building, the connecting rod serves as the critical link between the rotational force of the crankshaft and the linear motion of the piston. Forced to endure immense tensile and compressive loads, often exceeding several tons, the rod is a common point of failure in stressed engines. The BC6318 ProH625+ Connecting Rod set for the Toyota 1JZGTE, equipped with ARP Custom Age 625+ fasteners, represents not merely an upgrade but a fundamental re-engineering of this vital component. Engineered by Brian Crower for the discerning builder, this package is designed for applications where reliability under extreme boost, high rpm, and nitrous or methanol injection is non-negotiable. It transcends the limitations of factory cast rods and even typical aftermarket H-beam designs, offering a calculated balance of ultimate strength and minimized mass for the 2.5-liter twin-turbo legend. This product description will dissect the metallurgy, mechanical design, and application-specific engineering that make the BC6318 the definitive choice for serious 1JZGTE performance.

Metallurgical Foundation: The ProH625+ Forging Process

The core of the BC6318’s capability lies in its material: ProH625+. This is a proprietary, aircraft-quality 4340 chromoly steel alloy subjected to a precision closed-die forging process. Forging aligns the metal’s grain structure to follow the contours of the rod’s shape, eliminating the weak points inherent in casting or machining from bar stock. ProH625+ is then heat-treated to a specific Rockwell hardness, achieving an optimal blend of tensile strength and ductility. The “H625+” designation indicates a minimum tensile strength of 625 MPa, with actual values typically exceeding this, providing a significant safety margin over OEM specifications. This material’s high fatigue resistance is paramount for turbocharged engines experiencing repeated high-load cycles; it resists the microscopic crack propagation that leads to catastrophic failure. The rods are shot-peened post-machining, a process that bombards the surface with small media to induce compressive stresses, further enhancing fatigue life by helping to prevent surface-initiated cracks.

Fastener Synergy: ARP Custom Age 625+ Bolt Technology

A connecting rod is only as strong as its bolts. Brian Crower eliminates any weak link by specifying ARP Custom Age 625+ fasteners as standard equipment. These are not generic bolts; they are engineered from a nickel-chromium-molybdenum alloy (ARP’s “625+”) that undergoes a specialized aging process. This treatment stabilizes the material at the atomic level, resulting in exceptional clamp load retention and resistance to stress relaxation under thermal cycling—a common issue in high-temperature engine bays. The bolts feature ARP’s renowned rolled threads, which are stronger than cut threads as they preserve the grain flow of the metal. Proper fastener preload is critical for maintaining bearing crush and preventing rod cap walk, and the consistent quality of ARP 625+ bolts allows for precise torque-to-yield or stretch-based installation methods. For a deeper dive into the science of high-performance fastener technology, refer to this authoritative technical article on fastener material science.

Design and Unmatched Performance Benefits

The BC6318 utilizes a strategic “H-beam” design profile, chosen for its superior strength-to-weight ratio under the complex multidirectional loads seen in performance engines. The wide, flat beams provide immense resistance to buckling under compression, while the centralized rib adds torsional rigidity. Crucially, Brian Crower’s design incorporates radiused and filleted transitions at all stress points, eliminating sharp corners that can act as stress concentrators. Every journal and pin bore is precision honed and sized to exacting tolerances for perfect bearing fitment and oil clearance. The benefits of this integrated system are substantial and measurable.

• Extreme Duty Rating: Engineered to reliably support power levels in excess of 1000 horsepower, making them ideal for max-effort drag, time-attack, or high-boost street builds.
• Optimized Weight Reduction: Precisely machined to remove unnecessary mass without compromising strength, reducing reciprocating weight for improved engine responsiveness and higher, safer rev limits.
• Enhanced Rod Ratio Stability: The consistent length and machining of each rod ensure uniform piston motion and deck height, promoting balanced cylinder pressures and smoother operation.
• Premium Bearing Surfaces: The finished big-end and small-end bores provide an ideal foundation for performance bearing shells, ensuring optimal oil film stability and load distribution.
• Complete System Integrity: The marriage of ProH625+ rods with ARP 625+ fasteners creates a single, cohesive assembly with matched thermal expansion properties and failure points far beyond the engine’s operational limits.

Vehicle Fitment for Toyota 1JZGTE Engines

The BC6318 is specifically designed and machined for the Toyota 1JZ-GTE inline-six engine platform. This is a direct-fit replacement for the factory connecting rods and is compatible with standard 1JZ-GTE crankshafts and piston pins. Primary applications include, but are not limited to, the following vehicles equipped with the 1JZ-GTE engine, typically from the early 1990s to early 2000s: Toyota Mark II (JZX90, JZX100), Chaser (JZX90, JZX100), Cresta (JZX90, JZX100), Soarer (JZZ30), and Supra (JZA70). It is critical to verify engine model and year, as well as piston pin diameter (typically 21mm for standard 1JZ-GTE pistons), before installation. These rods are intended for performance use and require professional installation, including precise measurement of bearing clearances, pin fit, and bolt torque/stretch specification adherence.
