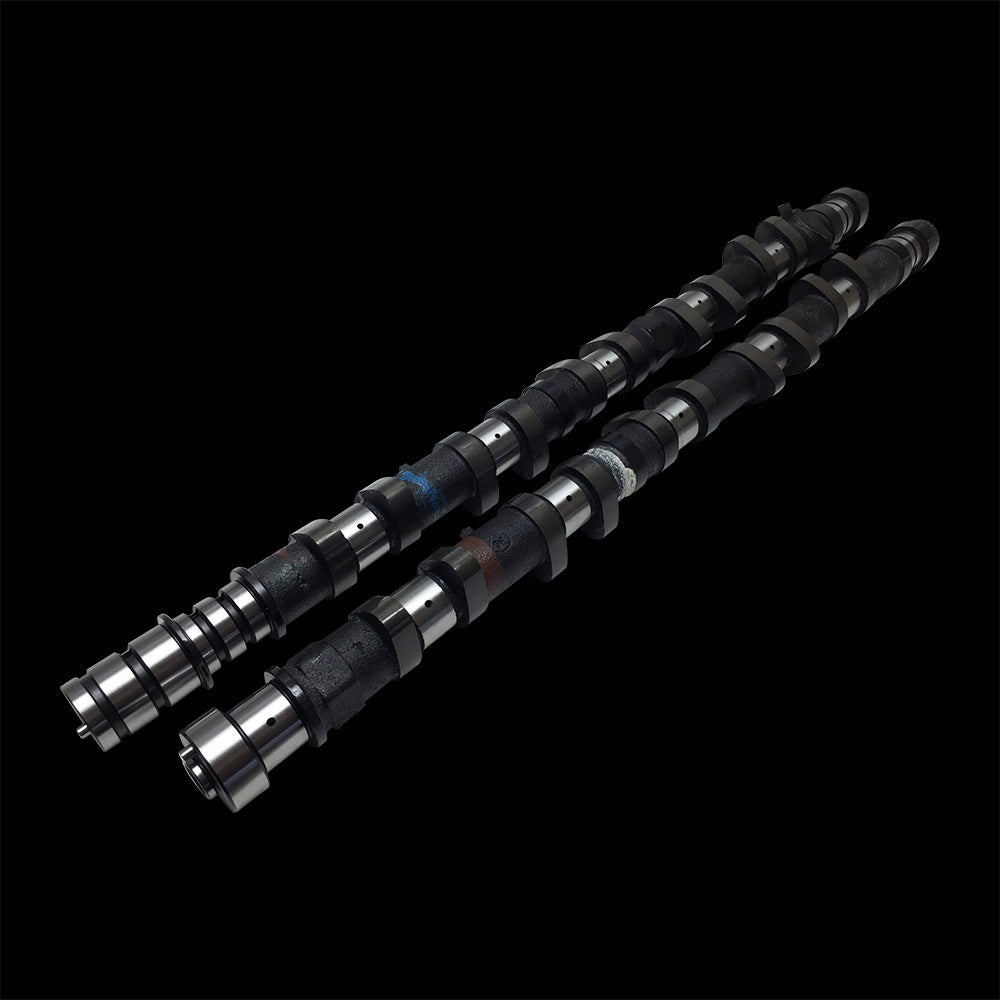

BC0334 – Toyota 1JZGTE VVTi Stage 2 Camshafts – Street/Strip Spec

For the dedicated builder of the 1JZ-GTE VVTi, the pursuit of reliable, streetable power that transitions effortlessly to strip dominance is a calculated engineering challenge. It requires components that respect the engine’s sophisticated original design while decisively unlocking its latent potential. The Brian Crower BC0334 Stage 2 Camshaft Set is not merely an upgrade; it is a precision recalibration of the engine’s respiratory heartbeat, engineered explicitly for the 1JZ-GTE VVTi’s unique architecture. Built by one of the most respected names in performance valvetrain, these cams represent a masterful balance between aggressive duration for top-end power and manageable lobe profiles for daily-driven civility. This Stage 2 “Street/Strip” spec is the definitive choice for forced induction enthusiasts targeting the 450-650+ wheel horsepower range, where volumetric efficiency becomes the critical bottleneck. We will dissect the exact specifications, intended application, and installation imperatives of the BC0334 cams, providing the technical blueprint you need to transform your 1JZ’s powerband.

Engineering Philosophy: The Street/Strip Balance for Forced Induction

The “Stage 2” designation from Brian Crower signifies a purposeful step beyond mild street manners into territory where significant power gains are the priority, yet drivability is not sacrificed at the altar of peak numbers. For a turbocharged, variable valve timed engine like the 1JZ-GTE VVTi, camshaft selection is about optimizing the pressure differential across the cylinder head. The goal is to extend the engine’s effective breathing range—allowing it to fill cylinders more completely at higher RPM where the turbo is in its efficiency island, without crippling low-end torque or creating unstable idle characteristics. The BC0334 grind achieves this through a calculated increase in duration and lift, working in concert with the factory VVTi system’s ability to advance intake timing for low-end response. This synergy allows for a broader, flatter torque curve and a pronounced increase in high-RPM horsepower, making the power delivery predictable and effective for both spirited street use and dedicated quarter-mile assaults.

• Expanded Powerband: Moves the power peak higher while maintaining strong mid-range torque, essential for maximizing turbo efficiency.
• Enhanced Volumetric Efficiency: The increased duration and lift allow more air/fuel charge into the cylinder, directly translating to greater power potential per combustion cycle.
• Maintained Drivability: Engineered profiles work with the VVTi system to preserve throttle response and stable idle, avoiding the lumpy, problematic behavior of more radical grinds.
• Direct Bolt-In Compatibility: Manufactured to OEM specifications for journal diameters and sensor triggers, ensuring seamless integration with the 1JZ-GTE VVTi head.
• Material Integrity: Made from premium-grade chilled cast iron or billet steel (depending on production run), offering superior wear resistance and longevity over stock cast cams.

Grind Specification & Technical Breakdown

The devil, and the power, is in the details. The BC0334 camshafts are defined by their specific lobe measurements, which dictate the valve event timing and lift. Understanding these numbers is crucial to predicting your engine’s new behavior.

BC0334 Camshaft Specifications

The symmetrical 264/264 duration is a classic and highly effective choice for turbocharged inline-six engines. It provides a substantial increase over stock duration (approximately 240-248 degrees) to significantly improve high-RPM flow, while the conservative 114-degree LSA minimizes valve overlap. Excessive overlap in a turbo engine can allow boost pressure to escape out the exhaust valve before it closes, killing low-end torque and spool characteristics. This grind expertly avoids that pitfall. The lift of 9.15mm is aggressive enough to necessitate upgraded valve springs to prevent valve float at elevated RPM, but it is not so extreme as to require immediate head machining or oversized valves—though those supporting modifications will further capitalize on the cam’s potential.

Vehicle Fitment & Prerequisite Supporting Modifications

The BC0334 camshaft set is engineered as a direct replacement for a specific engine family. Correct fitment is paramount to function and reliability.

Direct Vehicle Fitment

Primary Application: Toyota 1JZ-GTE engine with VVTi (Variable Valve Timing-intelligent).
Model Applications Include:
• Toyota Aristo (JZS161) – 1997-2005
• Toyota Mark II / Chaser / Cresta (JZX100, JZX110) – 1996-2001
Critical Note: This camshaft set is only for the VVTi variant of the 1JZ-GTE (identified by the valve cover marking and intake cam phaser). It will not fit non-VVTi 1JZ-GTE engines (e.g., from JZA70 Supra, earlier JZS147 Aristo).

Mandatory & Recommended Supporting Modifications

Installing these cams is a system upgrade, not an isolated component swap. To realize their potential and ensure engine safety, the following are required or strongly advised:
Mandatory: Performance Valve Springs & Retainers (e.g., Brian Crower BC0610). The stock springs cannot safely control the increased lift and higher RPM.
Highly Recommended: Adjustable Cam Gears (especially exhaust). While the VVTi controls intake timing dynamically, adjustable exhaust gears allow for fine-tuning of the cam phasing to optimize power and spool for your specific turbo setup. This is a critical step for professional tuning.
Essential Supporting System: A comprehensive engine management system (AEM, Haltech, Link, etc.) and a professional tune are non-negotiable. The ECU must be recalibrated to account for the altered airflow, injector duty cycles, and ignition timing across the entire rev range. The factory ECU will not compensate correctly.
Supporting Hardware: A fuel system (pump, injectors, regulator) and turbocharger system capable of supporting your target horsepower are prerequisites. These cams will expose the limitations of a stock turbo and fuel system immediately.

Installation Considerations & Technical Tuning Implications

Proper installation is the foundation of performance and longevity. Begin with a comprehensive service manual for torque specs and procedures. The valve clearance must be checked and shimmed as needed after installation—do not assume it will remain within specification. While the cams are a bolt-in component, the installation of the required valve springs necessitates cylinder head disassembly, making this an intermediate to advanced-level task. During tuning, the focus will be on leveraging the extended airflow. The tuner will typically advance the exhaust cam slightly to improve spool and broaden the torque curve, while the VVTi system’s mapping will be optimized to advance intake timing for low-end and mid-range, then potentially retard it at peak RPM for maximum airflow. For an in-depth technical discussion on cam timing theory and its effects on turbocharged performance, refer to this authoritative resource from Engine Labs.

The Verdict: Ultimate Streetable Performance for the 1JZ-GTE VVTi

The Brian Crower BC0334 Stage 2 Camshaft Set stands as a benchmark component for the serious 1JZ-GTE VVTi builder. It delivers on the “Street/Strip” promise with a technically sound grind that pushes the engine’s capabilities without venturing into the realm of compromised drivability. By selecting a balanced 264-degree duration, moderate lift, and wide LSA, Brian Crower has engineered a camshaft profile that speaks the language of forced induction. When paired with the mandatory supporting valvetrain, adjustable gears, and professional calibration, these cams become the cornerstone of a responsive, powerful, and reliable performance engine. For those looking to move beyond basic bolt-ons and fundamentally improve the thermodynamic efficiency of their 1JZ, the BC0334 is not just an option—it is the logical, high-performance progression.
