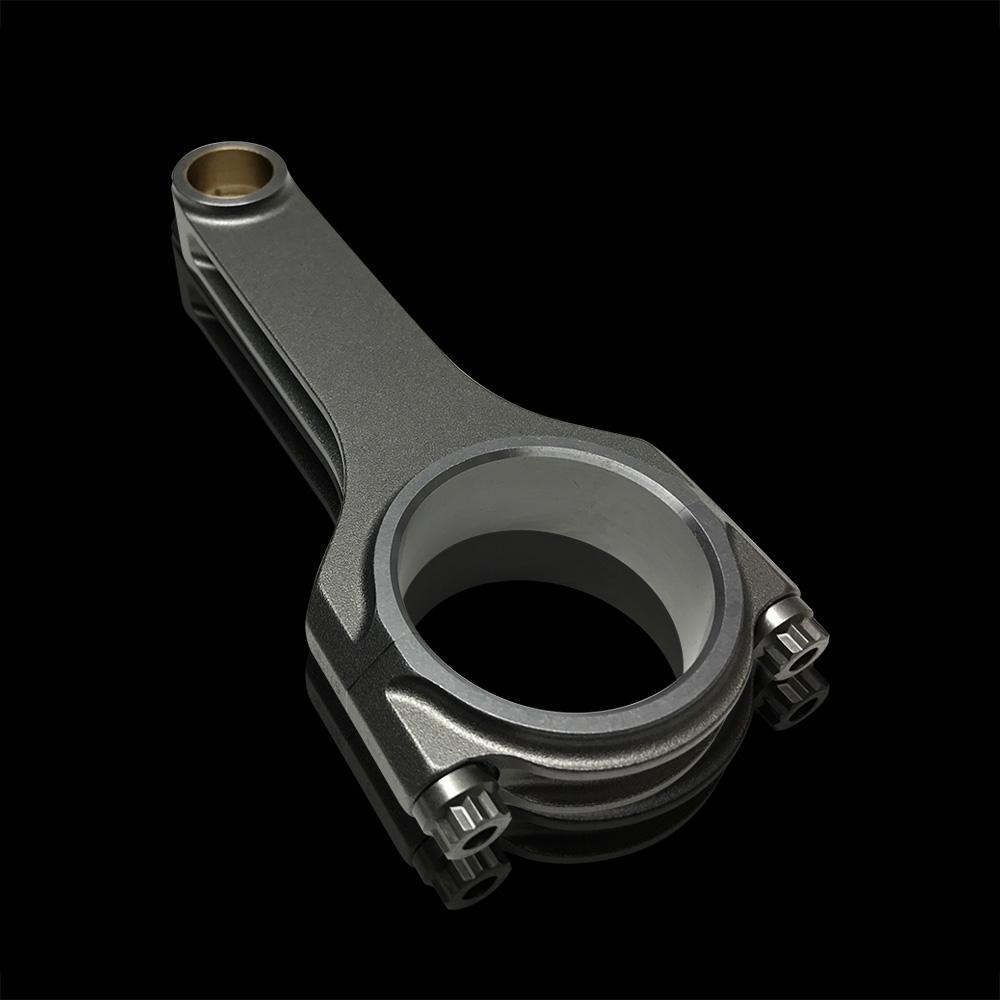

BC6350 – Toyota 3SGTE ProH625+ Connecting Rods with ARP Custom Age 625+ Fasteners

In the realm of forced-induction performance, the Toyota 3SGTE stands as a legendary powerplant, a cornerstone of tuner culture revered for its robust architecture and formidable tuning potential. Yet, as power thresholds escalate beyond 500 wheel horsepower and engines are spun to stratospheric RPM limits, the factory rotating assembly—specifically the connecting rods—transforms from a component into the single most critical failure point. Enter the BC6350 ProH625+ Connecting Rod Set from Brian Crower. This isn’t merely an upgrade; it’s a fundamental re-engineering of the 3SGTE’s reciprocating assembly, designed to convert explosive cylinder pressure into relentless, reliable thrust. Engineered from proprietary ProH625+ alloy and secured with the industry-benchmark ARP Custom Age 625+ fasteners, the BC6350 rod set is the definitive solution for builders who define performance by durability under extreme conditions. This analysis dissects the metallurgy, machining, and mechanical design that establish this rod as the new standard for serious 3SGTE applications.

Metallurgical Foundation: ProH625+ Alloy

The core of any performance connecting rod is its material. Brian Crower’s proprietary ProH625+ is a premium-grade, vacuum-melted 4340 steel variant. This process eliminates impurities and gaseous inclusions that create microscopic stress risers, the nucleation points for catastrophic fatigue failure. The “625+” designation refers to its ultimate tensile strength, exceeding 220,000 PSI—a significant margin over standard 4340 forgings. This alloy is meticulously heat-treated using a multi-stage thermal cycling process to achieve an optimal balance of ultimate tensile strength and fatigue resistance. The result is a rod capable of withstanding the brutal, cyclical loading of high-boost, high-RPM operation without yielding or developing the memory fatigue that plagues lesser components. The rod’s I-beam design is not a generic profile; it is a shape optimized through Finite Element Analysis (FEA) to manage both compressive loads from combustion and tensile loads from piston inertia, distributing stress evenly throughout the beam’s cross-section.

The Fastener Benchmark: ARP Custom Age 625+

Even the world’s strongest rod beam is only as reliable as its cap attachment. The bolt hole and threads are a severe stress concentrator, making the rod bolt the most highly stressed fastener in any engine. Brian Crower eliminates this weakness by including genuine ARP Custom Age 625+ rod bolts and nuts as a standard feature. Manufactured from a proprietary nickel-chromium-moly alloy, these fasteners are subjected to ARP’s renowned “Custom Age” heat treatment, a process that elevates their tensile strength to an astounding 260,000-280,000 PSI. This creates a clamping force so immense and consistent that it virtually eliminates cap walk and bore distortion, the primary causes of bearing failure and spun rods. The use of 625+ fasteners is a non-negotiable specification for any engine intended for sustained high-RPM use, as detailed in technical discussions on rod bolt fatigue and preload fundamentals. This integration ensures the BC6350 assembly operates as a single, monolithic unit under load.

Engineering & Precision Machining

Precision is measured in ten-thousandths of an inch, and every machining operation on the BC6350 rod is held to aerospace tolerances. Each rod is weight-matched to within 1 gram per set, a critical step for achieving perfect rotational balance and eliminating destructive harmonics. The large-end bore is honed with a plateau finish after cap assembly with the torque-plated bolts installed, ensuring perfect circularity under simulated clamp load for optimum bearing contact and oil film retention. The small-end is precision bushed with a premium bronze alloy, providing superior wear characteristics and piston pin retention compared to powdered metal setups. Furthermore, all stress-critical areas, including the bolt head radius and beam-to-journal fillets, undergo a specialized shot-peening process. This cold-working procedure induces a layer of compressive stress on the surface, dramatically increasing fatigue life by preventing crack initiation.

• Unmatched Fatigue Strength: ProH625+ alloy and shot-peening provide exceptional resistance to cyclic loading failures, essential for high-RPM and high-boost applications.
• Absolute Fastener Security: Integrated ARP 625+ fasteners deliver maximum clamp load and eliminate cap movement, the root cause of most rod failures.
• Perfect Rotational Balance: Precision weight-matching reduces harmonic vibrations, protecting crankshaft bearings and enabling smoother, higher-RPM operation.
• Optimized Bearing Alignment: Torque-plate honing of the big end ensures perfect bore geometry under actual running conditions for superior bearing life.
• Direct OEM Replacement: Maintains stock rod length and bearing sizes, allowing for a drop-in fitment that retains factory engine geometry and compression.

Vehicle Fitment & Application

The BC6350 rod set is engineered as a direct, precision replacement for the factory connecting rods in the following Toyota 3SGTE applications. It is the cornerstone component for builds targeting reliable power in excess of 600-700+ horsepower, whether for circuit racing, time attack, drag competition, or an ultra-reliable street performance build.

Primary Fitment:

• Toyota Celica GT-Four (ST165, ST185, ST205)
• Toyota MR2 Turbo (SW20)
• Toyota Caldina GT-Four (ST215, ST246)
• All 2.0L 3SGTE engine variants (Gen 1, 2, 3, 4, 5)

Note: These rods are designed for use with standard 3SGTE crankshaft journal diameters and piston pin sizes. Verification of clearances during assembly is mandatory for any performance engine build.

Technical Specifications

Conclusion: The Defining Upgrade

For the engineer, builder, or driver pushing the 3SGTE platform beyond its factory intent, the Brian Crower BC6350 ProH625+ Connecting Rod set represents the elimination of a major systemic risk. It is a component born from advanced metallurgy, validated by precision machining, and secured by the best fasteners available. This rod does not just increase the engine’s power threshold; it fundamentally raises its mechanical integrity, transforming the powerplant from a tuned factory assembly into a purpose-built racing engine. When your build strategy requires absolute confidence in the bottom end—where failure is not an option—the choice is unequivocal. The BC6350 is the structural backbone for the next generation of 3SGTE performance.
