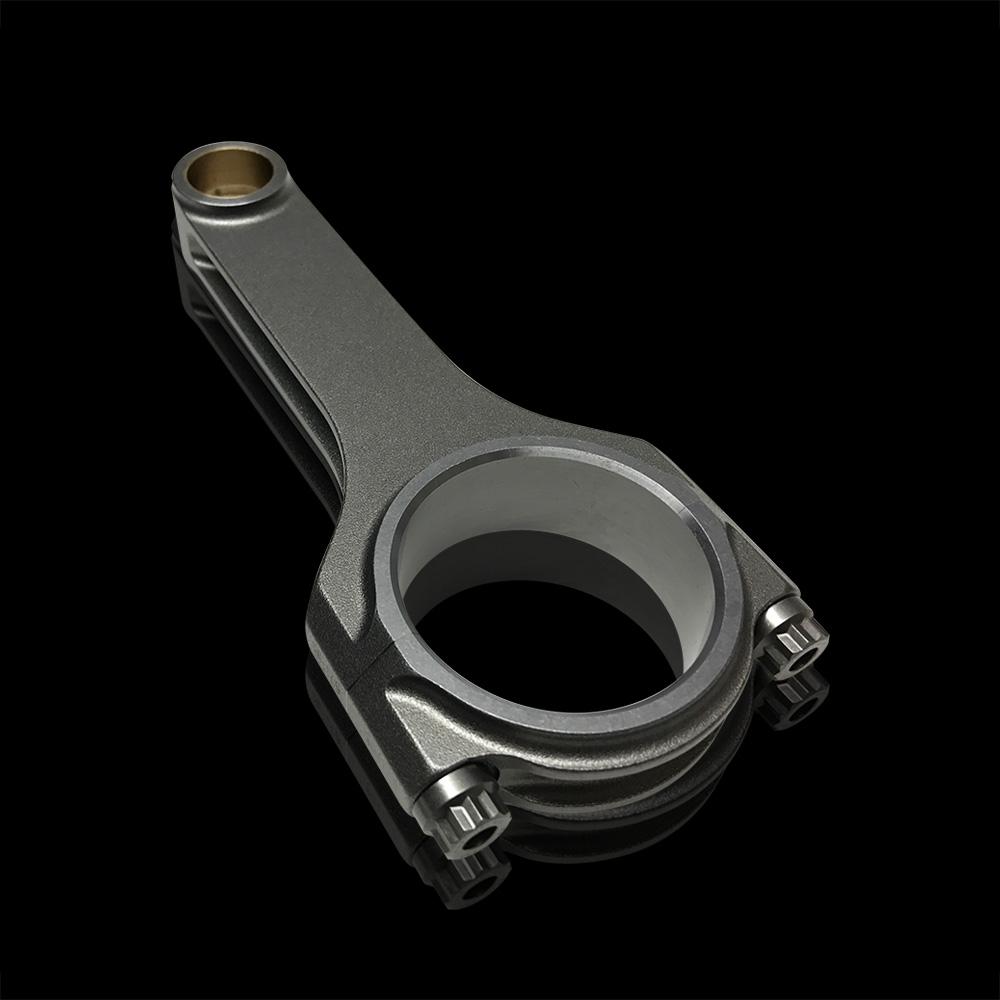

BC6415 – Ford 2.3L EcoBoost – ProH2K Connecting Rods w/ARP2000 Fasteners

In the relentless pursuit of power and reliability within the forced-induction arena, the connecting rod stands as the critical pivot point between rotational force and linear motion. For builders of the formidable Ford 2.3L EcoBoost platform—found in applications ranging from the track-focused Mustang to the rally-bred Focus RS—the stock powdered metal rods represent a definitive ceiling. Brian Crower addresses this limitation head-on with the BC6415 ProH2K Connecting Rod set, a component engineered not merely as an upgrade, but as a foundational re-engineering of the engine’s rotating assembly. Crafted from premium 4340 chromoly steel in a weight-optimized H-beam design and secured with industry-standard ARP 2000 fasteners, this set transforms the EcoBoost’s bottom end into a bastion of durability capable of supporting in excess of 700 wheel horsepower. This is not a part for hopeful modifications; it is the essential hardware for those executing a calculated, high-output build where margin of error is zero.

Engineering Philosophy: The ProH2K Forged 4340 H-Beam Advantage

The transition from a factory powdered metal rod to a forged 4340 chromoly unit represents a quantum leap in metallurgical integrity. The ProH2K rods begin as a premium-grade 4340 steel billet, a material renowned for its optimal balance of tensile strength, fatigue resistance, and shock load absorption. The “H-Beam” profile is not an aesthetic choice but a structural one. This design places more material along the neutral axis of the rod, where stress is lowest, creating an incredibly rigid beam that resists bending and buckling under extreme cylinder pressure. The forging process itself aligns the steel’s grain structure, enhancing its density and creating a monolithic component free of the potential voids or inclusions found in cast or powdered metal parts. Every BC6415 rod is then precision CNC-machined to exacting tolerances, ensuring perfect big-end roundness and small-end pin fitment, which is critical for maintaining proper oil clearance and bearing longevity in a high-RPM, high-boost environment.

ARP 2000 Fasteners: The Gold Standard in Clamping Force

A connecting rod is only as strong as its bolted connection. Brian Crower eliminates any weak link by including premium ARP 2000 rod bolts and nuts as standard equipment. These fasteners are manufactured from a proprietary 8740 chromoly steel, heat-treated using ARP’s exclusive process to achieve a 200,000 psi tensile strength. This extraordinary clamp load ensures the rod cap remains absolutely fixed to the rod body, preventing cap walk and fretting that can destroy bearing clearances. The rolled-thread construction provides superior fatigue life compared to cut threads, a critical factor for engines subjected to repeated high-stress cycles. By specifying ARP 2000, Crower guarantees that the fastener performance matches the capability of the forged rod itself, creating a unified, reliable assembly.

Technical Breakdown & Performance Specifications

The BC6415 set is engineered as a direct-fit replacement for the OEM 2.3L EcoBoost connecting rods, requiring no block clearancing or unusual machining when installed with the correct piston pin. The design prioritizes a balance of ultimate strength and manageable weight to improve engine responsiveness and reduce stress on the crankshaft. The precision-balanced set ensures smooth operation at elevated RPM, safeguarding against harmonic vibrations that can lead to bearing failure.

Direct Benefits for the High-Output EcoBoost Builder

• Unshakable Bottom-End Security: Replaces the factory rod, the #1 failure point in high-horsepower 2.3L EcoBoost engines, with a component capable of handling severe boost and nitrous applications.
• Metallurgical Superiority: The 4340 forged steel and H-beam construction offers exponentially greater fatigue life and resistance to tensile failure compared to powdered metal OEM rods.
• Proven Fastener Solution: Inclusion of ARP 2000 fasteners provides guaranteed clamping force and eliminates the need for a separate, critical purchase, ensuring a perfectly matched assembly.
• Precision Engineered Fitment: CNC-machined to exact OE dimensions for a hassle-free installation that maintains correct piston deck height and bearing clearances.
• Enhanced Engine Response: The optimized weight and rigidity reduce reciprocating mass deflection, contributing to sharper throttle response and higher, safer rev limits.
• Foundational for Forced Induction: Creates a rotating assembly platform that reliably supports the power from large turbochargers, aggressive tuning, and supplementary fueling required for 500-700+ WHP goals.

Vehicle Fitment & Application Notes

Vehicle Fitment: The BC6415 ProH2K Connecting Rod set is designed as a direct, precision-fit replacement for the factory connecting rods in the following Ford 2.3L EcoBoost applications:

• Ford Mustang (2015-2023) with 2.3L EcoBoost
• Ford Focus RS (2016-2018) with 2.3L EcoBoost
• Ford Ranger (2019-2023) with 2.3L EcoBoost
• Ford Explorer (2020-2023) with 2.3L EcoBoost
• Lincoln Corsair (2020-2023) with 2.3L EcoBoost
• Note: Also fits other global applications utilizing the Ford 2.3L EcoBoost (Duratec) engine architecture.

Installation Critical: Proper installation by a qualified machinist or engine builder is paramount. This includes verifying and setting the correct piston pin fit (press or full-floating), precisely torquing the ARP fasteners with the supplied lubricant to ARP’s specifications, and performing a final balance of the entire rotating assembly. These rods are a core component for builds utilizing larger turbochargers, port injection, ethanol blends, and standalone engine management. For a deeper dive into the engineering principles behind selecting connecting rods for high-stress turbo builds, consider reading this technical resource on selecting the right connecting rod.

The Non-Negotiable Upgrade for Serious Power

In the performance hierarchy of the 2.3L EcoBoost, supporting the bottom end is not a conditional modification—it is the first and most critical commandment. The Brian Crower BC6415 ProH2K Connecting Rod set with ARP 2000 Fasteners provides the definitive solution. It translates the potential of aftermarket turbo systems, advanced fuel strategies, and aggressive ECU calibrations into dependable, repeatable power. This is the component that allows an engine to survive its own potential, making it the unequivocal choice for the builder whose benchmark is not merely increased output, but engineered invulnerability at wide-open throttle.
