BC8000-1 – Honda B16A Darton M.I.D. Block Sleeves (81mm to 85mm bore)

As a master performance mechanic, the integrity of an engine block under extreme conditions is non-negotiable. The Brian Crower BC8000-1 Darton M.I.D. Block Sleeves for the Honda B16A represent a foundational upgrade for builders demanding absolute reliability and increased displacement. Engineered to replace the factory cylinder liners, these sleeves permit a safe bore expansion from the standard 81mm up to 85mm, facilitating significant horsepower gains through increased displacement and providing a fatigue-resistant foundation for forced induction or high-RPM NA builds. Utilizing Darton’s proprietary Modular Integrated Deck (M.I.D.) technology, this kit transforms the OEM open-deck B16A block into a closed-deck configuration, vastly improving cylinder wall stability and heat management. This technical description will dissect the engineering, application, and tangible benefits of the BC8000-1, providing the precise knowledge required for a professional-grade installation and build strategy. For foundational knowledge on cylinder sleeving principles, consult this authoritative technical article on engine sleeving from a leading automotive resource.

Engineering Excellence: The Darton M.I.D. Technology

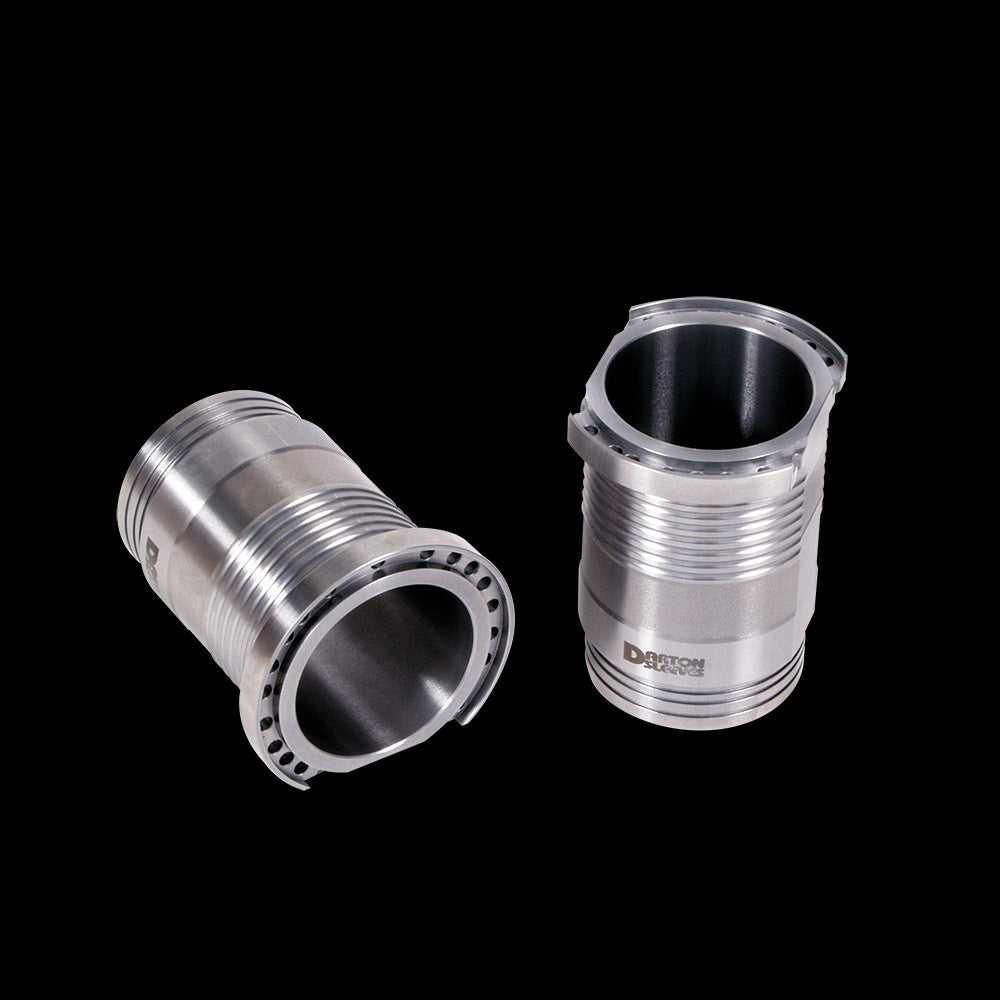

The core innovation of the BC8000-1 kit lies in the Darton Modular Integrated Deck system. Unlike conventional “wet” sleeves or simple press-in liners, the M.I.D. design is a semi-closed deck conversion system. It employs individual ductile iron sleeves that feature an integrated upper flange. When installed, this flange mates with a corresponding receiver groove machined into the block’s deck surface, creating a mechanical interlock that restrains cylinder wall movement at the most critical point—the top of the bore where combustion pressures and thermal loads are highest. This design effectively converts the B16A’s inherent open-deck architecture to a far more rigid closed-deck-like structure. The material specified is a high-grade centrifugal-cast ductile iron, chosen for its superior tensile strength, excellent thermal conductivity (approximately 20% greater than gray iron), and inherent vibration-damping properties compared to aluminum. The sleeves are finish-machined to a precise interference fit, ensuring optimal heat transfer to the aluminum block and eliminating the potential for micro-movement that can lead to head gasket failure or coolant contamination.

Unmatched Durability and Performance under Stress

In high-performance applications, the cylinder bore is subjected to immense dynamic forces. The BC8000-1 sleeves are engineered to withstand these extremes where the factory aluminum sleeves would distort or fail. The ductile iron construction provides a much higher modulus of elasticity, dramatically reducing bore distortion under load. This is critical for maintaining consistent ring seal at elevated boost pressures, often exceeding 30 psi, or at sustained high-RPM operation above 9,000 RPM. The enhanced thermal conductivity manages the intense heat generated in turbocharged or high-compression setups, stabilizing piston-to-wall clearances and reducing the risk of detonation. Furthermore, the ability to safely bore to 85mm increases the B16A’s displacement from the original 1.6 liters (1595cc) to approximately 1.8 liters (1797cc), a significant gain that directly translates to increased torque and horsepower. This bore increase provides a stronger platform for larger aftermarket pistons, enabling more aggressive cam profiles and combustion chamber designs without sacrificing cylinder wall integrity.

Key Operational Benefits of the BC8000-1 Sleeve Kit

• Radical Bore Increase: Enables safe and reliable boring from the stock 81mm up to 85mm, unlocking substantial displacement gains for maximum power output.
• Structural Block Reinforcement: The M.I.D. technology effectively converts the open-deck B16A block to a semi-closed deck, drastically increasing overall block rigidity and cylinder wall support.
• Superior Heat Management: Manufactured from high-grade ductile iron, the sleeves offer excellent thermal conductivity, stabilizing piston clearances and reducing hot spots under extreme thermal loads.
• Elimination of Cylinder Wall Distortion: Provides a vastly more stable bore than the factory aluminum, ensuring perfect ring seal for optimal compression and blow-by control in high-boost or high-RPM environments.
• Long-Term Reliability: Offers exceptional resistance to fatigue, cracking, and micro-welding from piston scuffing, making it ideal for endurance racing, drag racing, and high-horsepower street applications.
• Compatibility with OEM and Aftermarket Components: Designed to work seamlessly with stock and aftermarket crankshafts, connecting rods, and cylinder heads, providing flexibility in build design.

Vehicle Fitment: Precision Application for Honda B-Series Engines

The BC8000-1 kit is engineered specifically for the Honda B16A engine block. Correct identification and application are paramount. This product is designed for the block itself, not the cylinder head. It is compatible with B16A blocks found in the following vehicles, but requires professional machining and installation. The block must be inspected for core shift, prior damage, and wall thickness before proceeding with sleeving.

Primary Applications: Honda Civic Si (EG6, EK4), Honda Civic Type R (EK9), Honda CR-X SiR (EF8), Honda Integra XSi/RSi (DA6, DA8, DA9). The B16A engine code is typically stamped on the block near the transmission mating surface. It is crucial to note that while the sleeves fit the B16A, blocks from B18C1, B18C5 (Integra Type R), and other B-series engines have different bore spacings and deck heights and are not compatible with this specific kit. Always verify engine block casting numbers and consult with your machinist to confirm suitability for your specific project.

Technical Specifications and Professional Installation Protocol

The installation of Darton M.I.D. sleeves is a precision machining operation that must be performed by an experienced engine shop with the proper tooling. The process involves removing the factory liners, machining the block to precise dimensions for the interference fit, chilling the sleeves, pressing them into place, and then performing final hone and deck resurfacing operations. Below are the critical technical specifications for the BC8000-1 kit.

Installation Note: Successful implementation requires the block to be thermally stabilized (heated) and the sleeves cryogenically treated (chilled) prior to pressing to achieve the proper fit without distortion. Final honing must be performed with a torque plate simulating cylinder head clamping force to replicate the bore distortion under actual operation, ensuring a perfect cylindrical shape. Neglecting this step will compromise ring seal and engine longevity. Post-installation, deck resurfacing is almost always required to ensure perfect head gasket sealing. The BC8000-1 is not a bolt-in component but a core modification that, when executed correctly, yields an engine block capable of supporting well over 500 horsepower reliably.
