BC8002 – Honda B16A Darton M.I.D. Block Sleeves Drag Kit (86mm to 87mm bore)

In the relentless pursuit of horsepower and durability, the foundation of any engine build is non-negotiable. For the legendary Honda B16A, a platform revered for its high-revving character yet often pushed beyond its factory confines, block integrity becomes the primary bottleneck. Introducing the BC8002 Honda B16A Darton M.I.D. Block Sleeves Drag Kit. This is not a mere upgrade; it is a foundational transformation. Engineered by Brian Crower in collaboration with Darton, this kit replaces the factory FRM (Fiber-Reinforced Metal) liners with true ductile iron sleeves, facilitating a safe and robust overbore from 86mm to 87mm. Designed explicitly for drag racing and extreme horsepower applications, it converts the OEM open-deck block into a closed-deck configuration of unparalleled strength, capable of containing the immense cylinder pressures generated by forced induction or high-compression NA builds.

Engineering the Unyielding Foundation: Darton M.I.D. Technology

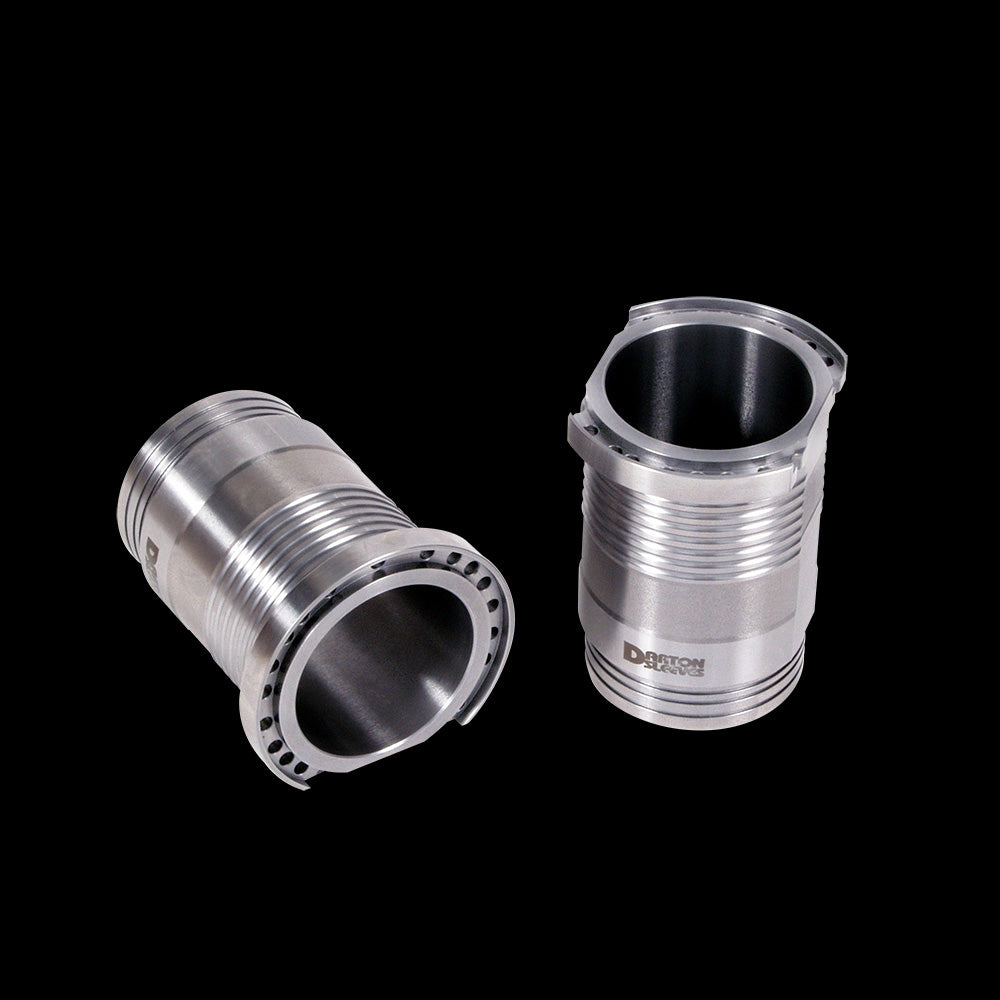

The core of the BC8002 kit is the application of Darton’s proprietary M.I.D. (Modular Integrated Deck) sleeve technology. This system represents a paradigm shift from traditional press-in sleeves. Each ductile iron sleeve is manufactured with an integral, machined top flange. During installation, this flange seats precisely into a counterbore machined into the block’s deck surface. When combined with the supplied head studs or bolts torqued to specification, the block’s cylinder head clamps this flange down, creating a mechanically locked, closed-deck architecture at the most critical point of stress: the top of the cylinder bore. This eliminates any potential for sleeve movement or “pumping,” a common failure point in high-pressure environments. The ductile iron material itself offers superior tensile strength and thermal conductivity compared to OEM FRM, providing a more stable and forgiving surface for performance piston rings and dissipating heat more effectively to the block’s coolant jackets.

Uncompromising Benefits for the Discerning Builder

• Absolute Block Reinforcement: Transforms the weak open-deck B16A block into a rigid closed-deck structure, preventing cylinder wall distortion and head gasket failure under extreme load.
• Facilitates Larger Bore: Enables a reliable 87mm bore (from 81mm stock), increasing displacement and providing crucial space for larger valves and optimized combustion chambers.
• Superior Ring Seal & Durability: The ductile iron surface is ideal for modern plasma-moly or ductile iron performance rings, promoting excellent seal for peak cylinder pressure retention and long-term wear characteristics.
• High-Pressure Capability: Designed to reliably withstand the cylinder pressures associated with turbocharging, supercharging, or nitrous oxide applications exceeding 1000 horsepower.
• Thermal Management: Enhanced heat transfer from the sleeve to the block coolant aids in stabilizing combustion temperatures and protecting piston and ring integrity.
• Precision Fitment: Each sleeve is precision-machined to ensure proper interface with the block and optimal wall thickness for maximum strength after final boring and honing.

Vehicle Fitment and Critical Installation Notes

Primary Application: This BC8002 kit is engineered specifically for the Honda B16A engine blocks found in vehicles such as the 1990-1997 Honda Civic/CRX (SiR/ VTi), 1990-1991 Honda Integra (RSi/XSi), and 1992-2000 Honda Civic (Type R EK9). It is also applicable to B16A-based blocks used in various racing series.

Mandatory Professional Machining: Installation is not a DIY garage operation. It requires a certified machine shop with specific experience in Honda blocks and sleeve installation. The process involves:

1. Completely removing the factory FRM liners via a boring process.

2. Precision machining the block to accept the M.I.D. sleeve flanges and to ensure correct sleeve-to-block interference fit.

3. Pressing or freezing/installing the sleeves.

4. Performing a final bore and hone to the target 87mm (or other desired finish bore, up to 87.5mm typically) with the appropriate surface finish for your piston and ring selection.

Utilizing the included ARP-style head studs is critical to achieving the designed clamp load for the M.I.D. flange system.

Technical Specifications: BC8002 Drag Kit

The Final Verdict for Maximum Performance

The Brian Crower BC8002 Darton M.I.D. Block Sleeves Drag Kit is the definitive solution for builders who demand absolute reliability from their Honda B16A at power levels that obliterate factory design limits. It addresses the fundamental weaknesses of the platform through advanced material science and ingenious mechanical design. While the investment encompasses both the kit and significant machine work, it is an investment in certainty. It allows the builder to focus on optimizing the rotating assembly, cylinder head, and forced induction system with the confidence that the block itself is no longer the weak link. For an in-depth technical discussion on the science and comparison of sleeving techniques, including M.I.D. technology, refer to this authoritative resource on cylinder sleeve fundamentals. In the high-stakes world of performance Hondas, the BC8002 kit isn’t just a part—it’s the new foundation upon which championships and records are built.
