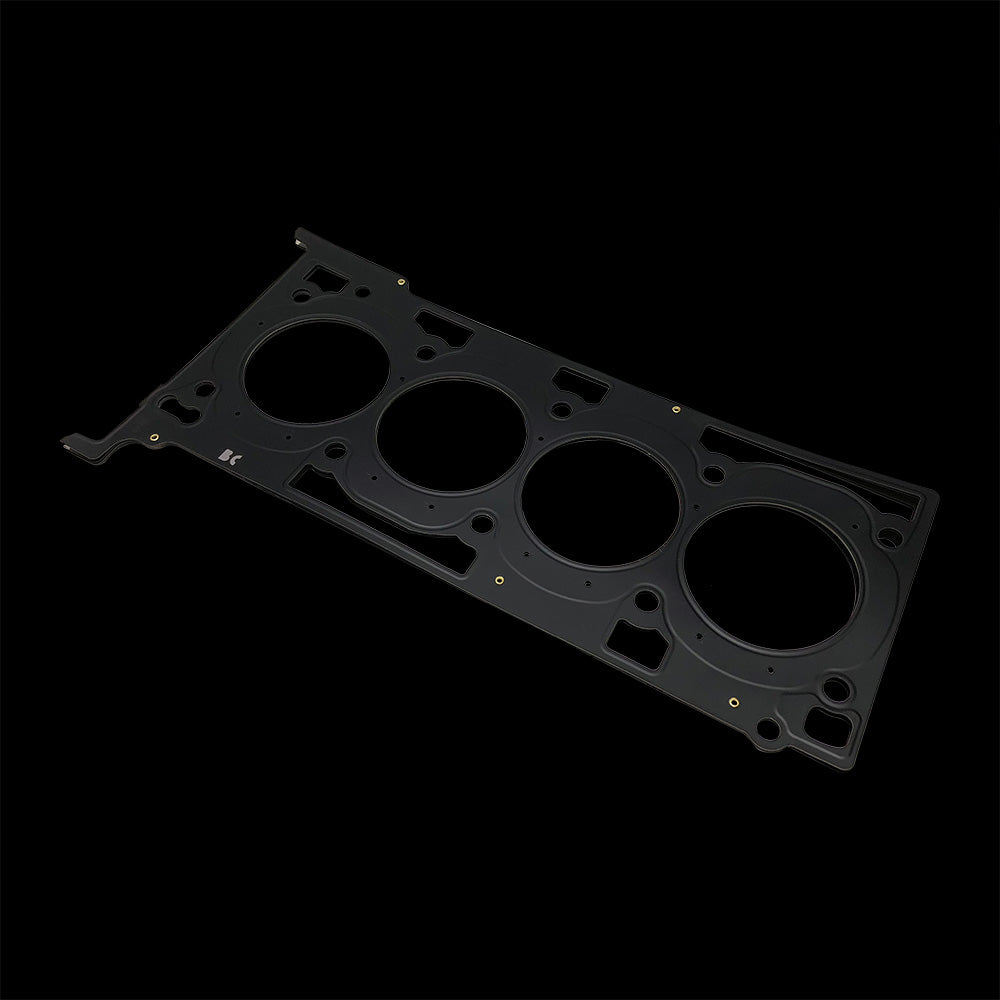

In the realm of high-performance 4B11T engine builds for the Mitsubishi Lancer Evolution X, the cylinder head seal represents the definitive frontier between controlled combustion and catastrophic failure. The BC8215 head gasket from Brian Crower is engineered not as a mere replacement, but as a strategic upgrade for the discerning performance mechanic. Designed specifically for the 87mm bore configuration, this 1.3mm thick, multi-layer steel (MLS) gasket is the cornerstone for builds targeting elevated boost pressures, aggressive ignition timing, and sustained high-RPM operation. It transcends the limitations of the OEM composite gasket, providing a hermetic seal capable of withstanding the extreme cylinder pressures and thermal cycling inherent in modified applications. For the builder who measures success in consistent horsepower and unflinching reliability, the BC8215 is the calculated choice.
Engineering for Extreme Cylinder Pressure
The primary failure mode of any head gasket under boost is combustion gas leakage, or “blow-by,” which erodes the sealing surface and leads to loss of compression, coolant contamination, and ultimately, engine failure. The BC8215 is constructed from multiple layers of precision-stamped, annealed stainless steel. Each layer is coated with a proprietary Viton® or similar fluoroelastomer sealing agent that flows microscopically into the machining imperfections of the head and block deck surfaces when torqued. This creates a far superior seal compared to the fiber-based OEM gasket, which can degrade under high heat and pressure. The 1.3mm compressed thickness is critical; it is designed to maintain an optimal quench or squish distance between the piston and cylinder head. This precise clearance promotes efficient combustion, helps control detonation, and is essential when pairing with aftermarket pistons that may alter deck height. The gasket’s bore is laser-cut to an exact 87mm, ensuring perfect alignment and eliminating any overhang that could become a hot spot for pre-ignition.
Material Science and Sealing Technology
Brian Crower’s MLS technology utilizes a functional layering approach. The outer layers are typically softer, allowing for conformability to minor surface irregularities, while the inner core layers provide the tensile strength to resist the tremendous firing pressures. The embossed, or raised, sealing beads around each cylinder bore, coolant passage, and oil gallery are a key feature. These beads create a significantly higher localized clamping force, permanently deforming into the mating surfaces to create a mechanical lock that static gasket materials cannot achieve. This design is particularly effective on the aluminum 4B11T block and head, which have different thermal expansion rates than the steel gasket. The MLS construction allows for controlled, differential movement between components without losing seal integrity, a common point of failure for lesser gaskets during heat cycles.
Benefits of the BC8215 MLS Head Gasket
- Unmatched Pressure Containment: Withstands sustained cylinder pressures far exceeding 2000 psi, essential for high-boost turbocharged applications.
- Superior Thermal Stability: Stainless steel construction and advanced coatings resist degradation from extreme EGTs (Exhaust Gas Temperatures), preventing seal hardening and failure.
- Precision Quench Management: The 1.3mm thickness is engineered to restore or optimize the piston-to-head squish zone, crucial for detonation suppression and efficient combustion in built motors.
- Chemical and Corrosion Resistance: Impervious to modern coolant additives and engine oils, eliminating the risk of material breakdown and subsequent leakage into vital passages.
- Reusability Potential: When installed correctly on properly machined surfaces and disassembled with care, a high-quality MLS gasket like the BC8215 can often be reused, a significant advantage for race teams during teardowns.
Vehicle Fitment and Application Notes
Primary Fitment: Mitsubishi Lancer Evolution X (2008-2015) with the 4B11T engine. This includes all standard MR, GSR, and Final Edition models.
Critical Application Requirements: The BC8215 is designed for use with an 87mm cylinder bore. It is mandatory that both the cylinder head and engine block decks are machined to a finish of 50 RA (Roughness Average) or smoother. An MLS gasket will not seal on a warped or improperly finished surface. It is strongly recommended to have both surfaces professionally machined and checked for flatness (typically within 0.001″ over the entire length). The use of a thread lubricant or assembly oil on head studs or bolts is non-negotiable to achieve accurate and consistent clamp load as per the torque specification. For more detailed insights on the challenges of sealing the 4B11T platform, refer to this technical discussion on EngineLabs.
Technical Specifications: BC8215
| Specification | Detail |
|---|---|
| Part Number | BC8215 |
| Bore Size | 87.0mm |
| Compressed Thickness | 1.3mm (0.051″) |
| Construction | Multi-Layer Steel (MLS) |
| Sealing Bead Type | Full-Perimeter Micro Beads |
| Surface Coating | Proprietary Rubber-Based Sealant |
| Required Deck Finish (RA) | 50 RA or smoother |
| Torque Sequence & Spec | Follow OEM Mitsubishi 4B11T sequence. Final torque is dependent on fastener type (OEM bolt vs. aftermarket stud). ARP studs typically require 85-90 ft-lbs with their specified lubricant. |
Ultimately, selecting the BC8215 head gasket is a decision that prioritizes foundational integrity over cosmetic power adders. It is the component that allows all other performance modifications—the turbocharger, fuel system, and tune—to realize their full potential without compromise. For the Evolution X engine builder, this gasket is not an option; it is a prerequisite for any build where reliability is engineered in equal measure to power output. It ensures that the immense forces generated within the combustion chamber remain precisely where they belong: converting fuel into motion, not destroying engine components.
