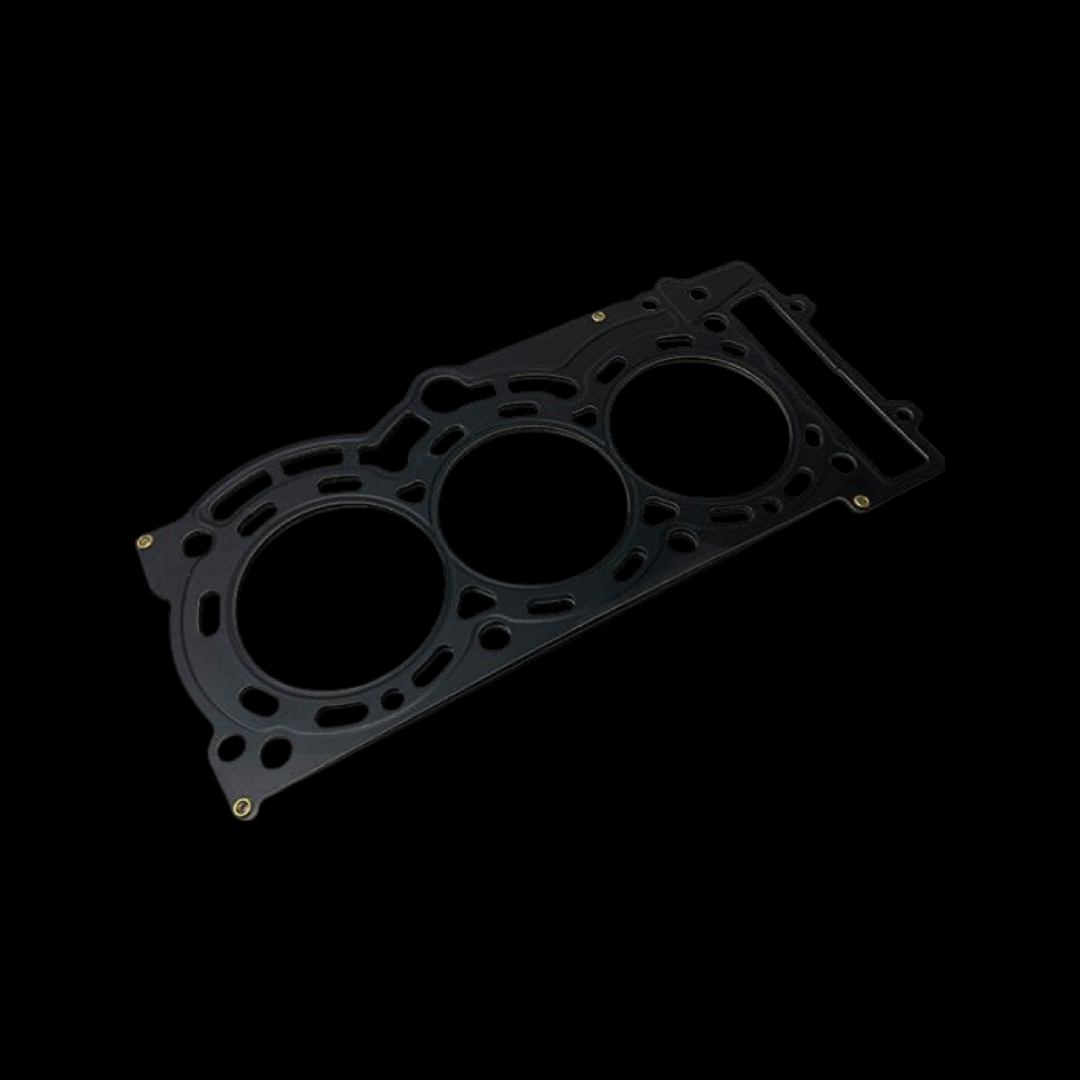

BC8297 – Yamaha YXZ (80mm x .052”) Cometic Head Gasket

In the high-stakes arena of Yamaha YXZ performance, where forced induction and increased compression are the standard tools for extracting power, the cylinder head sealing interface becomes a critical failure point. The Brian Crower BC8297 head gasket is not a replacement part; it is a performance upgrade engineered to eliminate the inherent weaknesses of stock sealing solutions. This 80mm bore, 0.052-inch thick, multi-layer steel (MLS) gasket from Cometic represents a fundamental shift from a consumable component to a foundational element of engine integrity. Designed for the rigors of turbocharging, supercharging, and aggressive nitrous use, it provides an impervious seal that locks in cylinder pressure and locks out coolant and oil cross-contamination, enabling you to build and tune your YXZ1000R engine with absolute confidence.

Engineering Analysis: The Multi-Layer Steel Advantage

Traditional composite head gaskets use a soft, combustible material that crushes to form a seal. Under stock conditions, this is adequate. However, in a modified environment characterized by elevated cylinder pressures and temperatures, this material can degrade, relax, and ultimately fail. The BC8297 utilizes Cometic’s proprietary MLS architecture, a technology born in OEM high-performance engines and perfected for the aftermarket.

Construction & Sealing Mechanics

This gasket is constructed from multiple layers of precision-stamped 1008 cold-rolled steel. Each layer is coated with a micro-thin, viton-based sealant that flows into the microscopic imperfections of the cylinder head and block deck surfaces when torqued. This creates a static, metallic seal that is impervious to combustion gases, coolant, and oil. The outermost layers are slightly thicker, providing robust sealing around coolant and oil passages, while the internal layers manage the intense forces directly around the cylinder bore. The specified 0.052″ (1.32mm) compressed thickness is crucial for maintaining your engine’s designed deck height and quench area, directly influencing compression ratio and detonation resistance—a critical calculation for any forced induction or high-compression build.

Performance Benefits & Application Scope

The installation of the BC8297 Cometic head gasket transforms the top-end sealing strategy of your Yamaha YXZ. It is the definitive solution for builders who have moved beyond bolt-ons and require absolute reliability from their engine’s core.

• Unmatched Blown-Head-Gasket Immunity: The steel layers cannot burn or degrade, eliminating the most common catastrophic failure in tuned engines.
• Superior Thermal and Pressure Stability: Maintains consistent clamp load and seal integrity across a vast temperature range, from cold starts to sustained high-RPM, high-boost operation.
• Precision Thickness Control: Manufactured to exacting tolerances, the 0.052″ thickness ensures accurate compression ratio calculations, essential for proper tuning and avoiding detonation.
• Reusability Potential: Unlike composite gaskets that must be replaced upon disassembly, a properly installed and cared-for MLS gasket can often be reused, saving cost and time during engine development.
• Compatibility with Aggressive Decking: When resurfacing the head or block, the robust MLS design is far more forgiving and reliable than a composite gasket on a freshly machined surface.

Installation Protocol & Surface Preparation Requirements

Warning: The performance of any MLS gasket is 100% dependent on proper surface finish and installation technique. Failure to adhere to these specifications will result in seal failure.

Critical Surface Finish Specification

The cylinder head and engine block deck surfaces must achieve a fine, cross-hatch finish between 50 RA (Roughness Average) and 60 RA. A mirror-smooth finish (<30 RA) will not allow the sealant to grip, while a finish that is too rough (>80 RA) will not allow the steel layers to conform properly. This specific RA range is non-negotiable. Always verify your machine shop is aware of this requirement for MLS gaskets. The surfaces must be perfectly clean, flat, and free of any old gasket material, oil, or coolant.

Torque Procedure and Fastener Considerations

Always use new OEM head bolts or upgrade to a premium head stud kit (ARP recommended for extreme applications). Follow the manufacturer’s specific torque sequence and values. A multi-step, angular torque procedure is typically required to ensure even clamping force across the entire head. Do not use any additional sealants or gasket dressings on the BC8297; the pre-applied coating is all that is required. For an in-depth technical discussion on MLS gasket theory and surface preparation, refer to this authoritative resource on choosing and installing performance head gaskets.

Vehicle Fitment & Model Year Specifics

The Brian Crower BC8297 is engineered specifically for the Yamaha YXZ1000R platform. Correct fitment is confirmed for the following:

Primary Application:
Yamaha YXZ1000R (All Models and Trims)
Model Years: 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023
Engine: 998cc, DOHC, 4-valve Liquid-Cooled Inline 3-cylinder
Note: This gasket is designed for the standard 80mm cylinder bore. It is compatible with both stock bore engines and those that have been overbored up to approximately 80.5mm, but always verify clearances. It is the critical upgrade for any engine rebuild involving performance cams (like Brian Crower’s own camshafts), forced induction systems, or high-compression pistons.

Technical Specifications Table

In conclusion, the Brian Crower BC8297 Cometic MLS Head Gasket is the definitive barrier between a powerful, reliable Yamaha YXZ engine and a costly, downtime-inducing failure. It is a component selected not out of necessity, but from a philosophy of over-engineering critical systems. By specifying this 80mm x 0.052″ gasket, you are investing in the foundational sealing integrity required to realize the full potential of your performance investments, ensuring that cylinder pressure is converted into horsepower at the wheels, not into a cloud of steam from your radiator.
