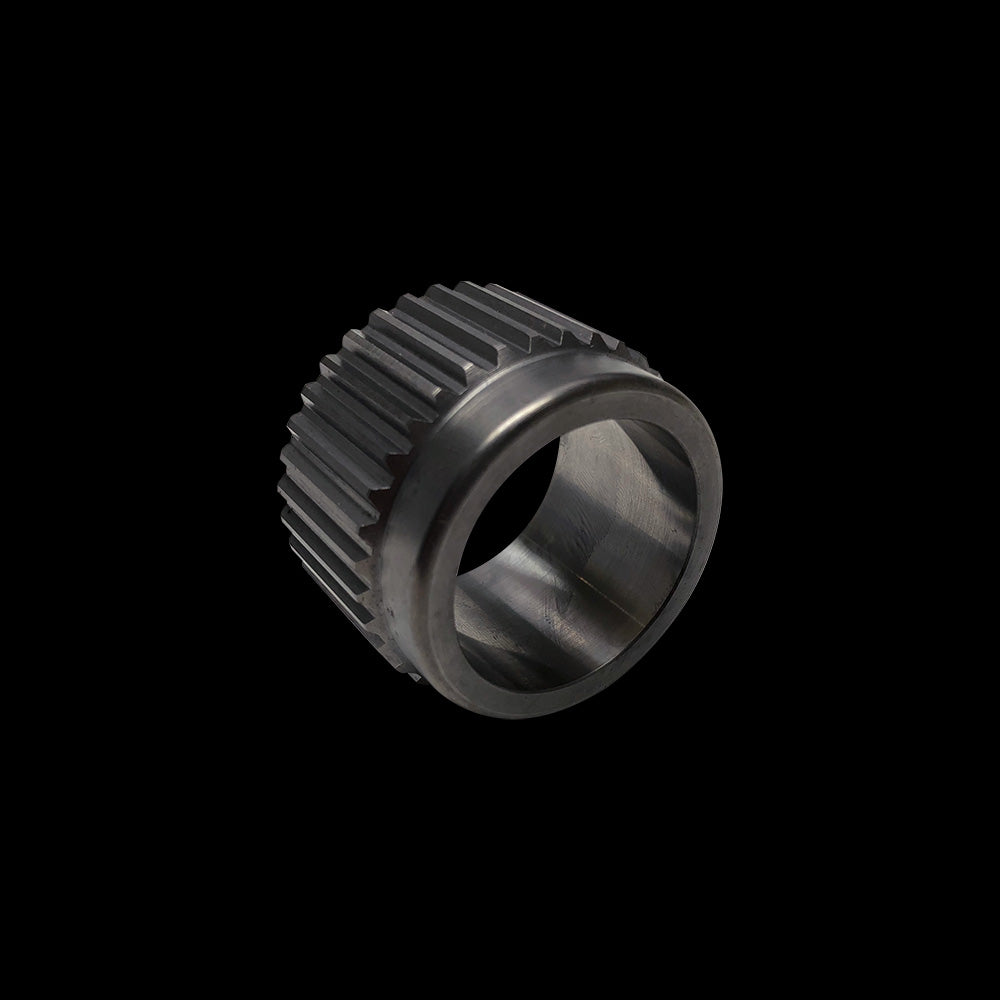

BC8800 – Oil Pump Drive Gear – Toyota 2JZGTE

In the realm of high-performance 2JZ engine building, the oil pump drive gear is not merely a component; it is the single point of failure that stands between a meticulously assembled long-block and catastrophic engine destruction. The factory sintered metal gear, while adequate for stock power levels, becomes a profound liability under the immense inertial and torsional loads generated by high-RPM operation, forced induction, and aggressive cam profiles. The BC8800 Oil Pump Drive Gear from Brian Crower represents the definitive engineering solution to this critical vulnerability. Machined from a solid billet of 8620 chromoly steel, heat-treated, and precision-finished, this gear is engineered to deliver absolute oiling system integrity, transforming a known weakness into an unshakeable foundation for your Toyota 2JZGTE’s rotating assembly.

Engineering the Unbreakable: Billet Chromoly Superiority

The fundamental failure mode of the OEM 2JZ oil pump gear is material fatigue and shear. Sintered metal, a powdered metallurgy process, creates a part with inherent microscopic porosity and lower overall tensile strength compared to a forged or billet component. Under high stress, these points become nucleation sites for cracks that rapidly propagate, leading to tooth shearing or complete gear disintegration. The BC8800 eliminates this risk at the material level. Starting as a solid bar of 8620 chromoly steel—a nickel-chromium-molybdenum alloy renowned for its excellent core toughness and case-hardening response—each gear is CNC-machined to exacting tolerances. Following machining, it undergoes a rigorous heat-treating process, achieving a surface hardness of approximately 58-60 HRC for exceptional wear resistance on the gear teeth, while retaining a tough, ductile core (roughly 28-32 HRC) to absorb impact and shock loads without brittle fracture. This combination of precise geometry and optimized material properties ensures the gear transmits rotational force to the oil pump with zero deflection or wear, maintaining perfect oil pressure. For a deeper technical understanding of harmonic dampening and oil system dynamics in high-performance engines, refer to this authoritative resource on engine builder fundamentals.

Performance Benefits & System Reliability

Upgrading to the BC BrianCrower BC8800 gear is a prophylactic measure that delivers immediate and long-term systemic benefits. This component is non-negotiable for any build exceeding factory rev limits or utilizing a high-volume oil pump.

• Eliminates Catastrophic Engine Failure: Prevents the total loss of oil pressure caused by OEM gear failure, which typically results in spun bearings, seized crankshafts, and complete engine destruction.
• Maintains Peak Oil Pressure: The billet construction prevents tooth flex under load, ensuring the oil pump is driven at its intended ratio without slippage or efficiency loss, crucial for protecting main and rod bearings at high RPM.
• Enhanced Durability for High-Volume Pumps: When paired with an aftermarket high-volume or high-pressure oil pump, the increased pump resistance places significantly higher torsional stress on the drive gear. The BC8800 is specifically engineered to handle this increased load without compromise.
• Compatibility with Aggressive Camshafts: High-lift, long-duration camshafts can increase valvetrain load and oil demand. A reliable oil pump drive is essential to ensure consistent pressure to the head and hydraulic tensioners (if equipped).
• Foundational for Forced Induction Builds: Turbocharged and supercharged applications exponentially increase bearing loads and engine heat. A stable, high-volume oil supply is the first line of defense, and it starts with a drive gear that will not fail.

Precise Vehicle Fitment & Application

The BC8800 is designed as a direct replacement for the factory gear, requiring no modification to the crankshaft or engine block. It is specifically engineered for the Toyota JZ engine family. Correct installation is critical and requires proper alignment and torque procedure.

Vehicle Fitment: This gear is compatible with all Toyota 2JZ-GE and 2JZ-GTE engine variants, including those found in:

– Toyota Supra (JZA70, JZA80)

– Toyota Aristo (JZS147, JZS161)

– Toyota Soarer (JZZ30)

– Toyota Chaser (JZX90, JZX100)

– Toyota Mark II (JZX90, JZX100)

Note: Always verify application for specific model years and engine codes. This gear is also compatible with 1JZ-GE and 1JZ-GTE engines, which share an identical oil pump drive gear design.

Installation Notes & Technical Specifications

Installation demands precision. The gear must be pressed onto the crankshaft with the correct interference fit and aligned via the woodruff key. The factory crank bolt must be torqued to factory specification (approximately 304 N·m or 224 ft-lbs) using a proper torque wrench and thread lubricant as specified by Toyota. Failure to achieve proper clamp load can lead to gear walk and eventual failure. It is highly recommended to replace the front main seal and inspect the crankshaft snout and keyway for wear during installation.

The Non-Negotiable Upgrade for Engine Longevity

Selecting the BC8800 Billet Oil Pump Drive Gear is not an optional performance mod; it is a fundamental act of responsible engine management for any 2JZ build where RPM, boost, or power output exceed OEM parameters. It represents a minimal investment when weighed against the cost of a full engine rebuild prompted by an oil system failure. By ensuring the absolute reliability of the primary driver for your engine’s lifeblood—its oil pressure—this component provides the peace of mind necessary to explore the full performance potential of the legendary 2JZ platform. Do not let a sintered metal gear be the weakest link in your chain. Upgrade to billet. Upgrade to certainty.
