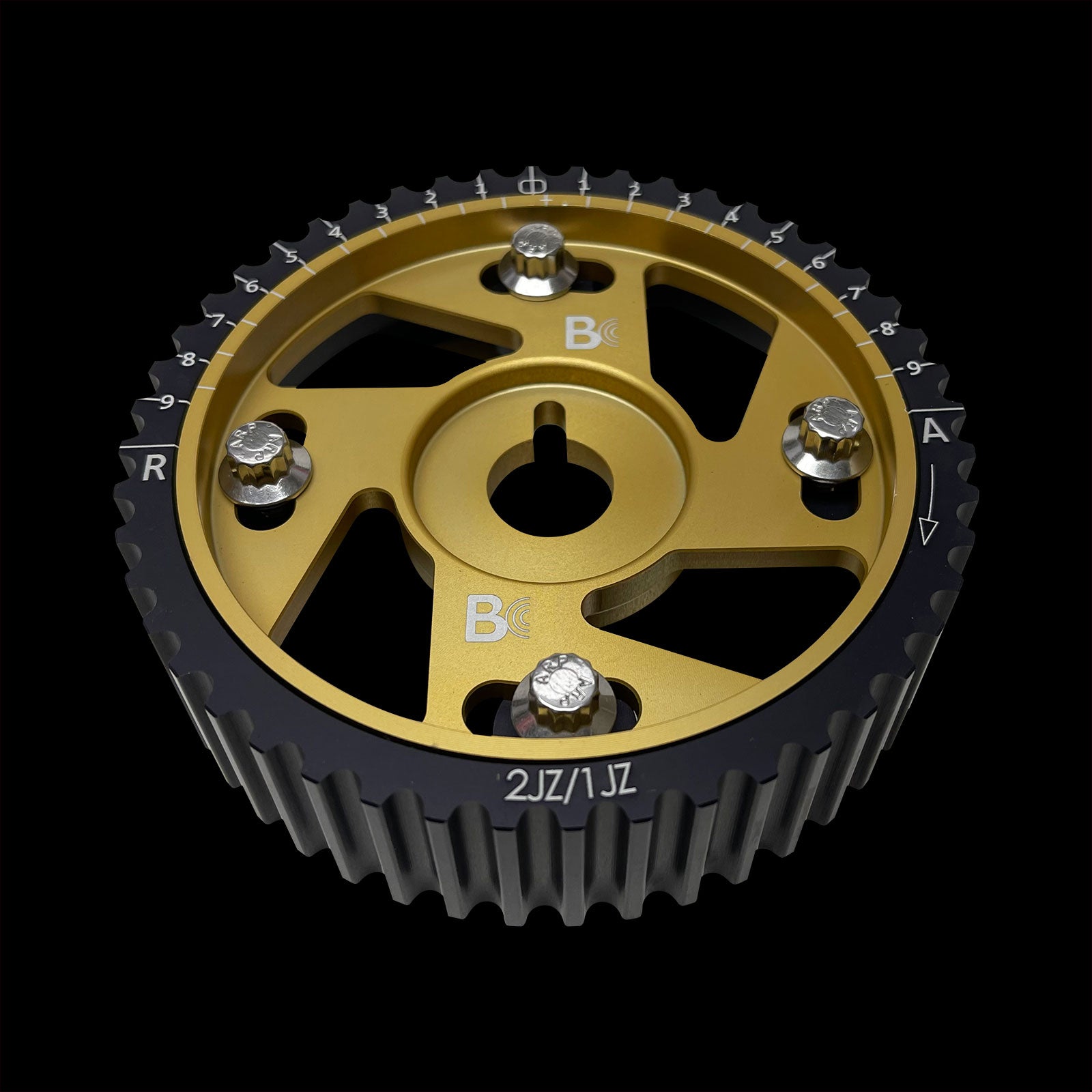

BC8830-1 – Toyota 2JZ VVTi/1JZ VVTi Adjustable Cam Gear on Exhuast Side Only

For the serious builder seeking to extract maximum performance from the legendary Toyota JZ-VVTi platform, cam timing control is not a luxury—it is a necessity. The BC8830-1 Adjustable Exhaust Cam Gear from Brian Crower represents a targeted, precision-engineered solution designed specifically for the exhaust side of the 2JZ-GTE VVTi and 1JZ-GTE VVTi engines. While the factory variable valve timing (VVTi) system on the intake cam provides a broad range of adjustment for low-end torque and drivability, it is typically locked out or left stock in high-performance and forced induction applications. This leaves the exhaust cam timing as the primary variable for optimizing the engine’s volumetric efficiency, scavenging effect, and ultimately, its power curve. The BC8830-1 provides the critical tool needed to dial in this parameter with surgical precision, allowing tuners to tailor the powerband, move the torque peak, and eliminate spool-killing backpressure mismatches caused by aftermarket turbo upgrades or increased engine displacement. This is not a universal component; it is a dedicated, application-specific gear crafted to integrate seamlessly with your VVTi cylinder head, offering the reliability and repeatability demanded in competitive environments. For a deeper technical understanding of cam timing principles in turbocharged engines, foundational reading is available from authoritative sources like Engine Labs.

Engineering Precision & Performance Benefits

The BC8830-1 is engineered from the ground up to serve as a performance upgrade, not merely an adjustable replica. It starts with a superior material foundation: a 6061-T6511 aircraft-grade aluminum billet. This material is selected for its exceptional strength-to-weight ratio and thermal stability, ensuring the gear maintains its structural integrity and dimensional accuracy under the intense heat cycles and harmonic vibrations inherent in a high-RPM, turbocharged inline-six. The machining process employs CNC technology to achieve tolerances far surpassing OEM cast components, resulting in perfect concentricity and a flawless mesh with the timing belt. The adjustable mechanism itself is the heart of the component. It features a dual-pin locking system with Grade 8 hardened steel hardware. This design provides a supremely rigid and slip-free connection between the inner hub (which mounts to the camshaft) and the outer toothed ring, preventing any chance of timing drift under load—a critical failure point in inferior designs.

Key Performance Advantages

• Optimize Exhaust Scavenging: Fine-tune the exhaust valve opening and closing events to improve cylinder evacuation, reducing pumping losses and residual exhaust gas content for a denser fresh air charge.
• Correct Boost Threshold & Spool Characteristics: Combat lag from larger turbochargers by advancing the exhaust cam timing to better energize the turbine wheel at lower engine speeds.
• Shift the Power Band: Move the torque curve to better match your application—advance for low-end and mid-range response, or retard for top-end horsepower in all-out race engines.
• Compensate for Machine Work: Correct timing errors introduced by cylinder head resurfacing, head gasket changes, or aftermarket camshafts with non-standard lobe separation angles.
• Unlock Hidden Power: Synergize with intake VVTi tuning and fuel/ignition maps to reveal power and efficiency that a static OEM exhaust gear leaves untapped.

Vehicle Fitment & Direct Application

The BC8830-1 is designed as a direct, bolt-on component for specific Toyota JZ engines equipped with the VVTi system on the intake camshaft. It is crucial to verify your engine’s identification code and head configuration before purchase. This gear is engineered exclusively for the exhaust camshaft and is not intended for use on the intake side, which retains its factory VVTi actuator mechanism.

Primary Fitment:

• Toyota Supra JZA80 (1997-2002) – 2JZ-GTE VVTi Engine
• Toyota Aristo JZS161 (1997-2005) – 2JZ-GTE VVTi Engine
• Toyota Soarer JZZ30 (1996-2000) – 1JZ-GTE VVTi Engine

Note on Compatibility: This gear is specifically for the later-model VVTi engines. It is not compatible with non-VVTi 2JZ-GTE or 1JZ-GTE engines (pre-1997), as the camshaft snout and bearing cap design differ. Always confirm your engine’s production date and VVTi designation.

Technical Specifications & Construction Details

Installation Protocol & Tuning Philosophy

Installing the BC8830-1 requires methodical precision. The procedure involves locking the engine at Top Dead Center (TDC) on cylinder #1, removing the timing belt cover, and relieving tension from the timing belt. The OEM exhaust cam gear is then unbolted and replaced with the BC8830-1 unit, initially set to the “0” or neutral marking to replicate stock timing. Critical: The factory woodruff key must be transferred to the new gear. During reassembly, proper timing belt tensioning procedures as per the factory service manual must be followed to the letter. The true potential of this component is realized during dyno tuning. A baseline pull is made with the exhaust cam at “0” degrees. Incremental adjustments are then made, typically in 1-2 degree steps, while monitoring changes in torque curve shape, boost response, and air-fuel ratios. The optimal setting is a compromise that yields the desired powerband for the vehicle’s intended use—be it street, drift, or drag racing. This tool empowers the tuner to make the engine work in harmony with its supporting modifications, transforming a collection of parts into a cohesive, high-performance system.
