CAN Adaptor Loom DTM-4 to 6-pin Circular Connector

Link ECU & Haltech Integration Interface

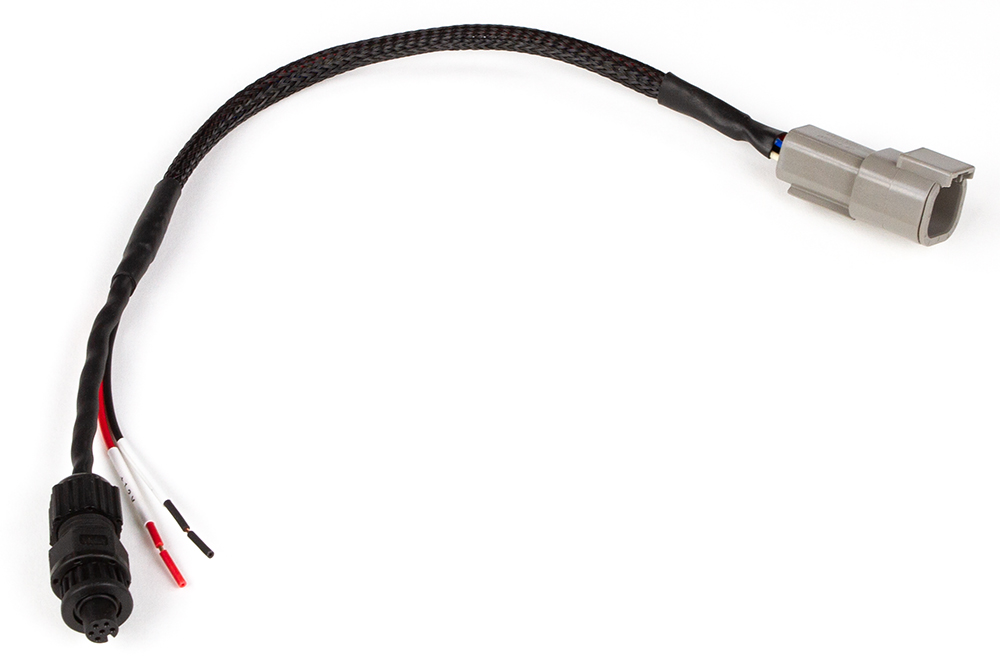

The CAN Adaptor Loom (DTM-4 to 6-pin Circular Connector) is a precision-engineered interface designed to connect Haltech CAN devices, such as the IC-7 Digital Dash or WB1 Wideband, directly to Link G4/G4+/G4X Wire-in ECUs. Link ECUs (Storm, Extreme, Fury, Thunder) often utilize a robust 6-pin circular connector for their CAN/Serial communications. This adaptor converts that proprietary port into the standard Haltech DTM-4 format.

Simplifying Mixed-Brand Ecosystems

For tuners who prefer the Link ECU for engine control but demand the clarity and customization of the Haltech IC-7 Dash, this cable is the missing link. It handles the pin mapping for CAN High, CAN Low, and Ground, ensuring that the data stream is transmitted cleanly. The cable also includes provisions for power injection where required, allowing for a neat, professional installation that avoids the reliability risks of handmade jumper harnesses.

Technical Specifications

Installation Note: Wiring of input power may be required depending on the specific device configuration. Please consult the wiring diagram provided.
