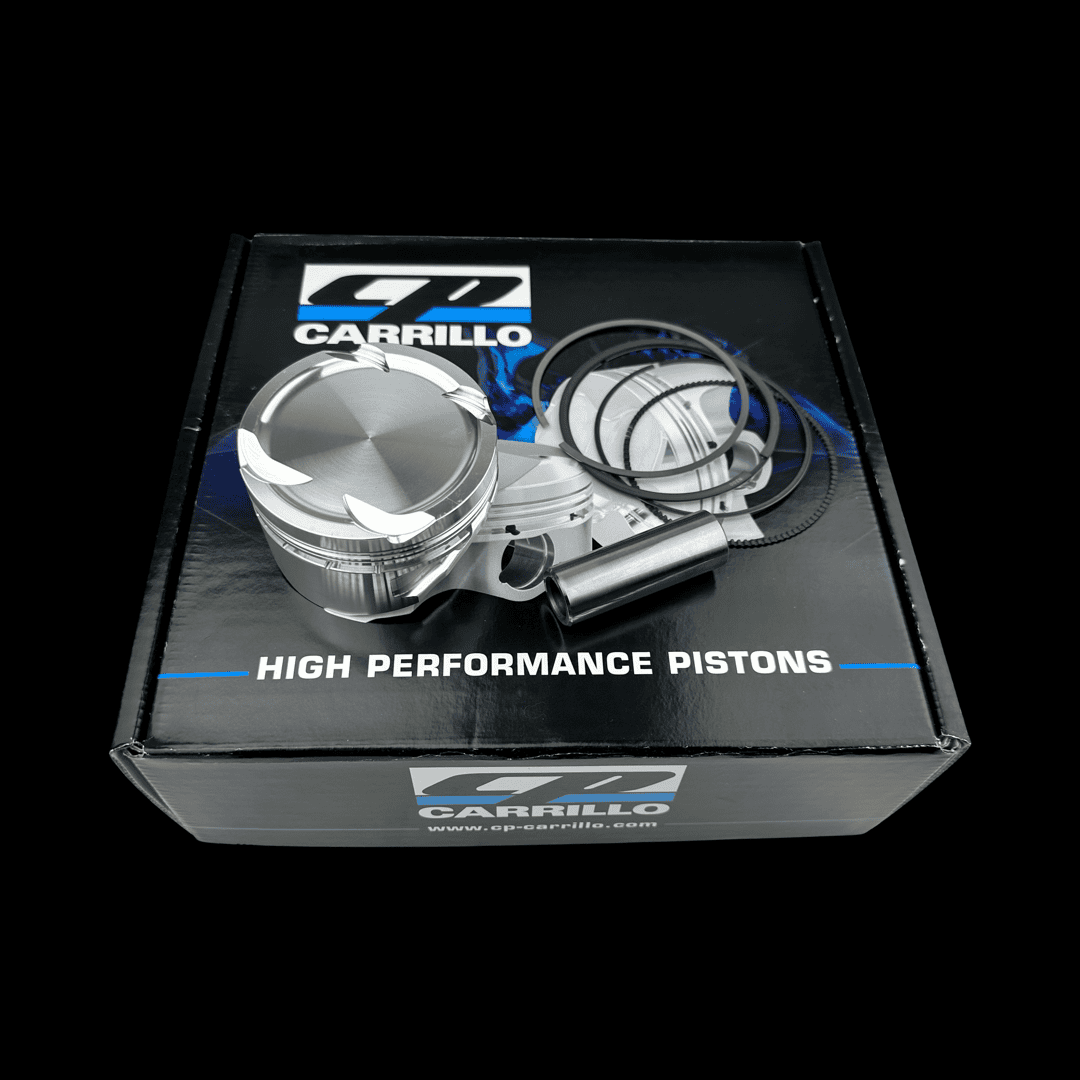

CP7160 – Honda F20C/F22C CP Shelf Pistons w/All Hardware – F20 87mm x 11.0:1 / F22 87mm x 11.8:1

For the Honda S2000 purist or the dedicated track builder seeking to unlock the definitive balance of response, power, and reliability, the selection of internal components is a non-negotiable cornerstone of the build. The factory F20C and F22C engines are marvels of high-revving engineering, but their true potential for forced induction or high-compression naturally aspirated applications is gated by the limitations of the stock hypereutectic pistons. The CP7160 Shelf Pistons are not merely replacements; they are a direct engineering upgrade, a forged foundation designed to transform the S2000’s legendary powerplant into a paragon of controlled aggression. Engineered by CP-Carrillo, a name synonymous with championship-level motorsport components, these pistons provide a turn-key solution for the 87mm bore of both engine codes, offering specific compression ratios of 11.0:1 for the F20C and 11.8:1 for the F22C. This is precision machinery for the driver who understands that real performance is built from the inside out, where microns matter and material science dictates the ceiling of your ambition.

Material and Forging: The Metallurgical Foundation

The paramount advantage of the CP7160 piston set lies in its core material: 2618 forged aluminum alloy. This specification is a critical departure from the stock pistons and even from the 4032 alloy used in some “street” forged units. The 2618 alloy possesses a lower silicon content, granting it superior ductility and fatigue resistance at elevated temperatures. This characteristic is non-negotiable for engines subjected to the intense thermal loads of forced induction or sustained high-RPM operation. The forging process itself, a closed-die, high-pressure hammer forging, aligns the metallic grain structure of the billet to follow the final contours of the piston. This results in a component with exceptional tensile strength and impact resistance, capable of withstanding the violent detonation events and immense cylinder pressures that would shatter or deform a lesser piston. The final machining to CP’s legendary tolerances ensures a perfect, consistent platform for ring sealing and skirt geometry. For a deeper technical dive into piston alloy selection and its impact on engine performance and durability, refer to this authoritative resource on piston material science at EngineLabs.

Precision Engineering and Design Features

Every contour of the CP7160 piston is a calculated performance feature. The asymmetric barrel-shaped skirt profile is CNC-machined to provide optimal contact with the cylinder wall under the angular thrust loads of the connecting rod, minimizing friction and stabilizing piston travel. The digital-cam reliefs are precisely machined to provide ample valve clearance for aggressive camshaft profiles, a necessity for any serious NA build or turbo application with altered valve events. The ring lands are machined to accept a standard 1.5mm, 1.5mm, 3.0mm ring package, with the top land specifically reinforced to resist the battering effect of high boost and detonation. Furthermore, the pistons are designed with an optimized dome volume and valve pocket geometry to achieve the advertised compression ratios without compromising combustion efficiency or requiring excessive deck milling. This attention to detail ensures these are not generic pistons adapted to fit, but components purpose-designed for the specific dynamics of the Honda F-series engine.

Tangible Performance Benefits

Installing CP7160 pistons translates engineering theory into measurable, real-world advantages. The benefits are systemic, affecting every aspect of engine performance and longevity.

• Unmatched Durability for Boosted Applications: The 2618 forged construction is the gold standard for turbocharged or supercharged S2000 builds. It provides the necessary safety margin to confidently pursue higher boost levels, protecting your investment from catastrophic failure due to knock or over-pressure.
• Optimized Compression for Power Goals: The shelf-available 11.0:1 (F20C) and 11.8:1 (F22C) ratios are strategically chosen. They offer a significant increase over stock for enhanced NA throttle response and power, while remaining manageable for forced induction with proper tuning and fuel, avoiding the pitfalls of overly aggressive static compression.
• Superior Ring Seal and Consistency: The machined ring lands and consistent piston-to-wall clearance promote perfect ring seating. This maximizes cylinder sealing from the first start-up, leading to better compression, reduced blow-by, and stable oil control throughout the engine’s life.
• Reduced Rotating Assembly Weight: Despite their incredible strength, these forged pistons are carefully designed to minimize mass. A lighter piston reduces reciprocating weight, lessening stress on the rod bearings and crankshaft, and allowing the engine to rev more freely with less inertial loss.
• Complete Hardware Inclusion: The CP7160 kit is a comprehensive solution. It includes CP’s proprietary wrist pins and SpiroLox retaining rings. These pins are precisely fitted and finished to ensure flawless operation, eliminating the guesswork and extra cost of sourcing compatible hardware.

Vehicle Fitment and Application Notes

Primary Fitment: Honda S2000 (AP1, AP2). The CP7160 pistons are engineered specifically for the 87mm cylinder bore common to both the F20C (2.0L) and F22C (2.2L) engines. It is critical to match the correct piston to your engine’s displacement to achieve the target compression ratio.

Detailed Engine Code Application:

• For F20C Engines (AP1 S2000): Use the pistons designated for 11.0:1 compression. When installed in a standard-deck F20C block with the appropriate head gasket and stock-length connecting rods, this will yield the advertised 11.0:1 static compression ratio.
• For F22C Engines (AP2 S2000): Use the pistons designated for 11.8:1 compression. Installed in an F22C block with standard components, this achieves the 11.8:1 ratio. Swapping F22C pistons into an F20C block (or vice versa) will result in a significant and potentially dangerous alteration of the compression ratio and must only be done as part of a calculated engine blueprint.

Mandatory Professional Steps: Installation of forged pistons is not a casual undertaking. It necessitates professional engine machining and assembly. Block honing with a torque plate is absolutely required to achieve the correct final bore geometry and piston-to-wall clearance specified by CP. The connecting rods must be re-sized with the new wrist pins installed, and the entire rotating assembly must be balanced. Neglecting these steps voids any performance and reliability advantage these premium components offer.

Technical Specifications

In conclusion, the CP7160 Shelf Pistons represent the intersection of motorsport-proven technology and practical application for the Honda F20C/F22C engine. They eliminate the wait and cost of a full custom piston order while delivering 95% of the benefit for most performance and competition builds. Whether your goal is a resilient, high-horsepower forced-induction monster or a razor-sharp, high-compression naturally aspirated screamer, this component provides the robust, precision-machined foundation required. Your build’s reliability and power ceiling are defined by your choices here. Choose the foundation that champions choose.
